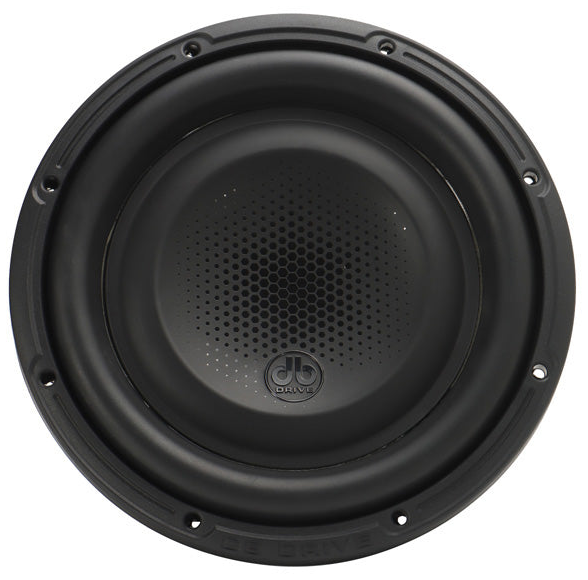

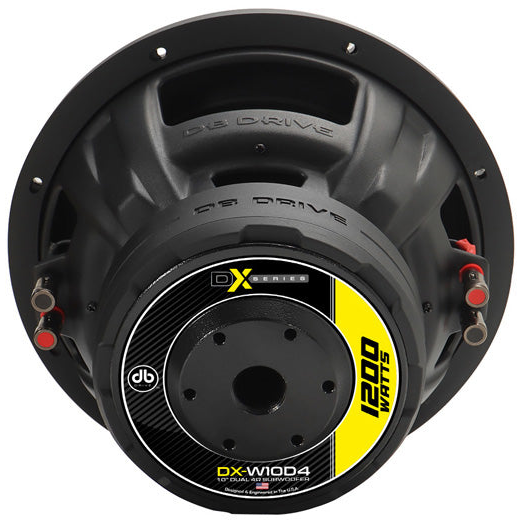

DB Drive DX-W10D4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 265 mm |
| Resonance | 39.7 Hz |
| Q factor | 0.62 |
| Sensitivity | 83 dB |
| Linear excursion | ± 18 mm |
| Program Power | 1200 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83dB
Thiele & Small parameters
- Resonance frequency (free air) fS 39.7Hz
- Mechanical quality factor QMS 2.80
- Electrical quality factor QES 0.80
- Total quality factor QTS 0.62
Large signal parameters
- Maximum linear excursion (one way) xmax 18mm
- Air volume displaced at xmax VD 606cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 4.31mH
- VC Diameter 50.8mm
Magnet
- Force factor (in series) Bl 18.4N/A
- Motor constant Bl/√RE 7.27N/√W
- Material Ferrite oxide
Diaphragm
- Effective diameter 207mm
- Effective area SD 337cm²
- Moving mass MMS 169g
- Moving mass (without air load) MMD 164g
- Material Injected polypropylene (pp)
Suspensions
- Stiffness KMS 10.5N/mm
- Compliance CMS 95µm/N
- Equivalent volume to the compliance VAS 15.3L
- Mechanical resistance RMS 15.1N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 10″
- 265mm
- Overall diameter 265mm
- Baffle cutout diameter 230mm
- Mounting depth 139mm
- Volume occupied by the driver (estimated) 1.7L
- Frame material Stamped steel
