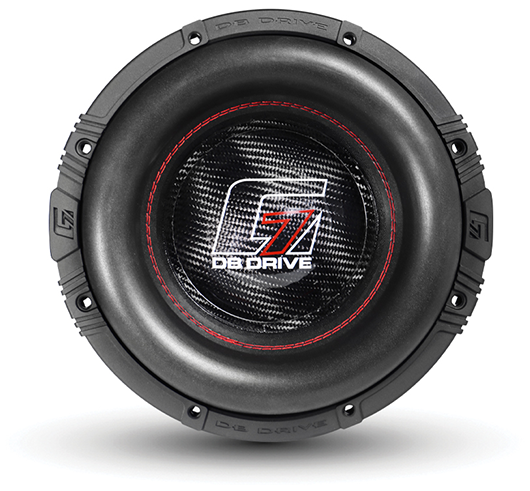

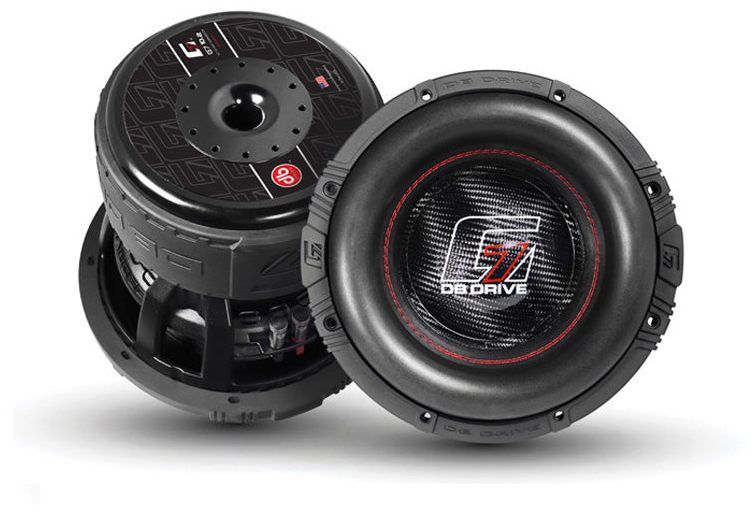

DB Drive G7 10.1
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 10″ / 305 mm |
| Resonance | 34 Hz |
| Q factor | 0.49 |
| Sensitivity | 81.9 dB |
| Linear excursion | ± 35 mm |
| Program Power | 8000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 2.31
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion (one way) xmax 35mm
- Air volume displaced at xmax VD 1356cm³
- Power handling P 4000W
- Program power Pmax 8000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.4Ω
- Inductance (1kHz, in series, estimated) LE 1.38mH
- VC Diameter 76.2mm
- Winding material Aluminum Flat Wire
- Former material Aluminum Anodized
Magnet
- Force factor (in series) Bl 12N/A
- Motor constant Bl/√RE 10.1N/√W
- Material Ferrite
Diaphragm
- Effective diameter 222mm
- Effective area SD 387cm²
- Moving mass MMS 299g
- Moving mass (without air load) MMD 293g
- Material Paper Glass Fibrillated Mixed
Suspensions
- Stiffness KMS 13.7N/mm
- Compliance CMS 73.2µm/N
- Equivalent volume to the compliance VAS 15.6L
- Mechanical resistance RMS 27.6N·s/m
- Surround material Xtreme Excursion
- Spider material Tri-Layer Progressive
Dimensions
- Nominal diameter 10″
- 305mm
- Overall diameter 305mm
- Baffle cutout diameter 260mm
- Mounting depth 229mm
- Volume occupied by the driver (estimated) 2.4L
- Frame material Aluminium Die-Cast
