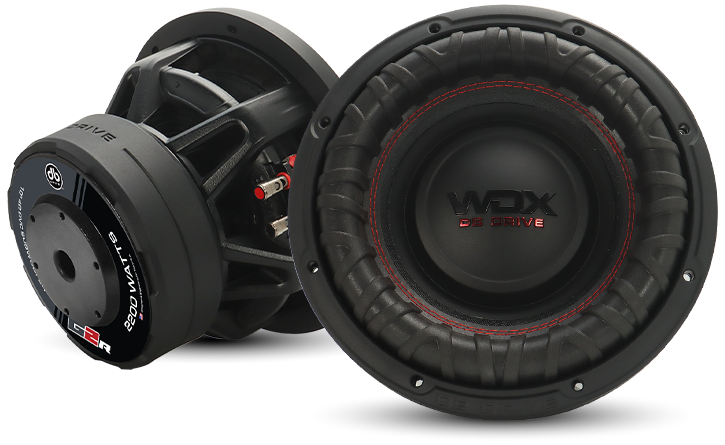

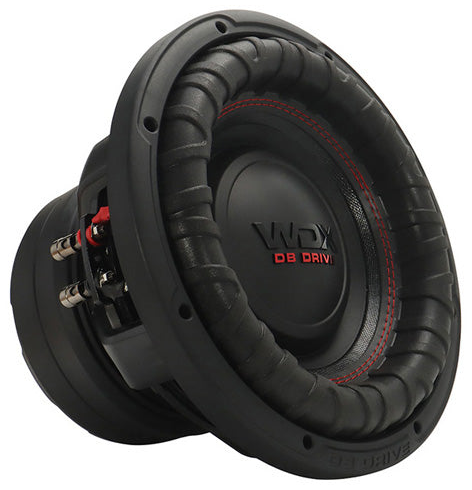

DB Drive WDX10G2R.4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 279 mm |
| Resonance | 32.5 Hz |
| Q factor | 0.77 |
| Sensitivity | 80.7 dB |
| Linear excursion | ± 20 mm |
| Program Power | 2200 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 32.5Hz
- Mechanical quality factor QMS 3.73
- Electrical quality factor QES 0.97
- Total quality factor QTS 0.77
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 713cm³
- Power handling P 1100W
- Program power Pmax 2200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 5.66mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 18.6N/A
- Motor constant Bl/√RE 7.33N/√W
Diaphragm
- Effective diameter 213mm
- Effective area SD 357cm²
- Moving mass MMS 254g
- Moving mass (without air load) MMD 249g
- Material Non-Pressed paper
Suspensions
- Stiffness KMS 10.6N/mm
- Compliance CMS 94.1µm/N
- Equivalent volume to the compliance VAS 17L
- Mechanical resistance RMS 13.9N·s/m
- Surround material Reinforced foam
- Spider material Poly-cotton
Dimensions
- Nominal diameter 10″
- 279mm
- Overall diameter 279mm
- Baffle cutout diameter 241mm
- Mounting depth 173mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Die-cast Aluminium
