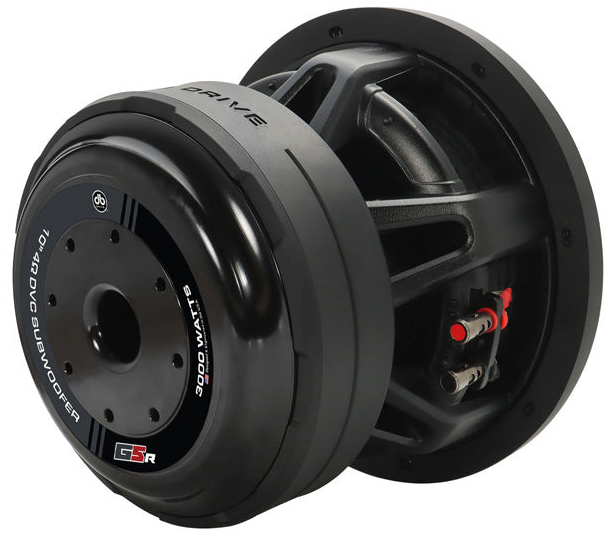

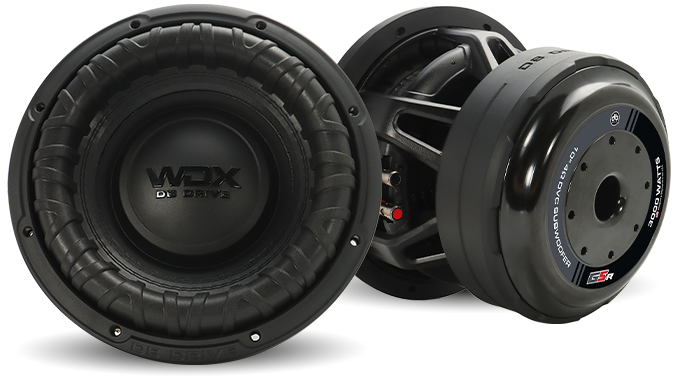

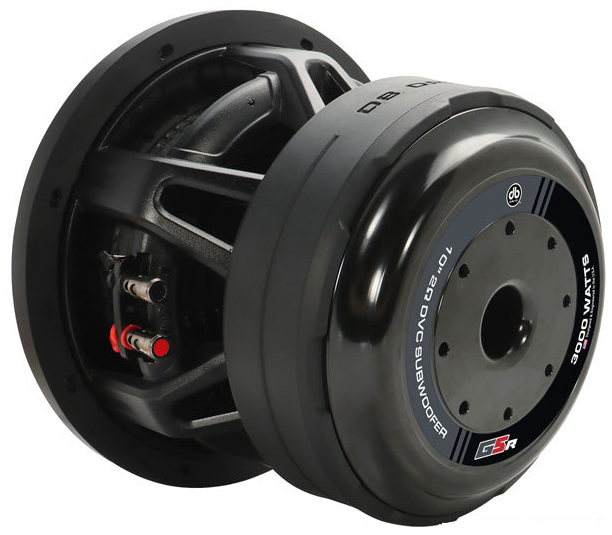

DB Drive WDX10G5R.4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 279 mm |
| Resonance | 31.4 Hz |
| Q factor | 0.43 |
| Sensitivity | 81.1 dB |
| Program Power | 3000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.4Hz
- Mechanical quality factor QMS 3.10
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.43
Large signal parameters
- Power handling P 1500W
- Program power Pmax 3000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 7.06mH
- VC Diameter 76.2mm
- Former material Anodized aluminum
Magnet
- Force factor (in series) Bl 30N/A
- Motor constant Bl/√RE 11.8N/√W
Diaphragm
- Effective diameter 213mm
- Effective area SD 357cm²
- Moving mass MMS 354g
- Moving mass (without air load) MMD 349g
- Material Non-Pressed paper
Suspensions
- Stiffness KMS 13.8N/mm
- Compliance CMS 72.6µm/N
- Equivalent volume to the compliance VAS 13.1L
- Mechanical resistance RMS 22.5N·s/m
- Surround material Double-stitched reinforced foam
- Spider material Dual poly-cotton
Dimensions
- Nominal diameter 10″
- 279mm
- Overall diameter 279mm
- Baffle cutout diameter 241mm
- Mounting depth 191mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Die-cast Aluminium
