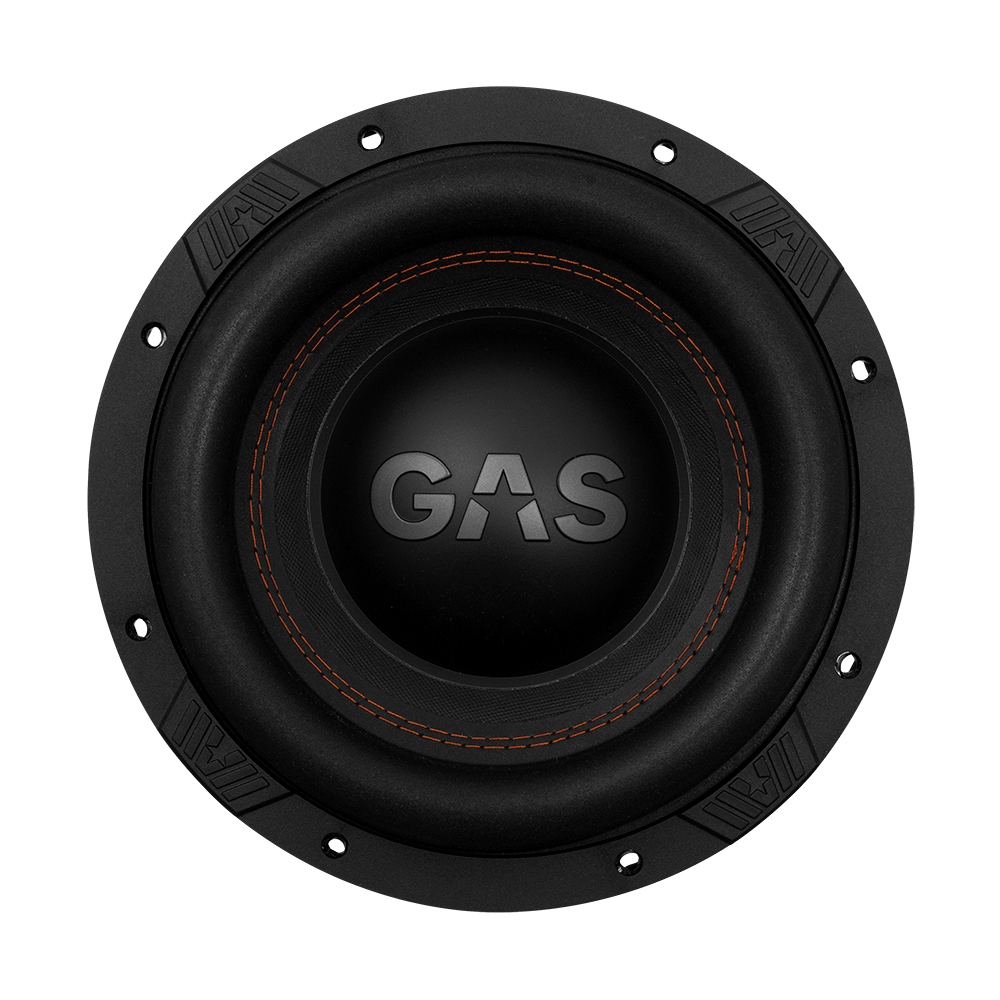

GAS Audio Power MAX S1-10D1
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 33.3 Hz |
| Q factor | 0.47 |
| Sensitivity | 81 dB |
| Linear excursion | ± 10 mm |
| Program Power | 3000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81dB
- Frequency response 25 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33.3Hz
- Mechanical quality factor QMS 5.52
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 330cm³
- Power handling P 1500W
- Program power Pmax 3000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 1.26mH
- VC Diameter 76.2mm
- Winding material Copper
- Former material ALSV
Magnet
- Force factor (in series) Bl 14.9N/A
- Motor constant Bl/√RE 11.1N/√W
- Diameter 202mm
- Weight 5.67kg
- Material Ferrite
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 320g
- Moving mass (without air load) MMD 315g
- Material Paper
Suspensions
- Stiffness KMS 13.2N/mm
- Compliance CMS 76µm/N
- Equivalent volume to the compliance VAS 11.7L
- Mechanical resistance RMS 12.1N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 275mm
- Baffle cutout diameter 235mm
- Overall depth 181mm
- Flange thickness 15mm
- Mounting depth 166mm
- Volume occupied by the driver 2.5L
- Net weight 12.8kg
- Frame material Aluminium
