NVX YSW102

2x2Ω

Subwoofer

Nominal diameter	10″ / 254 mm
Resonance	30.2 Hz
Q factor	0.45
Sensitivity	81 dB
Linear excursion	± 15 mm
Program power	1600 W

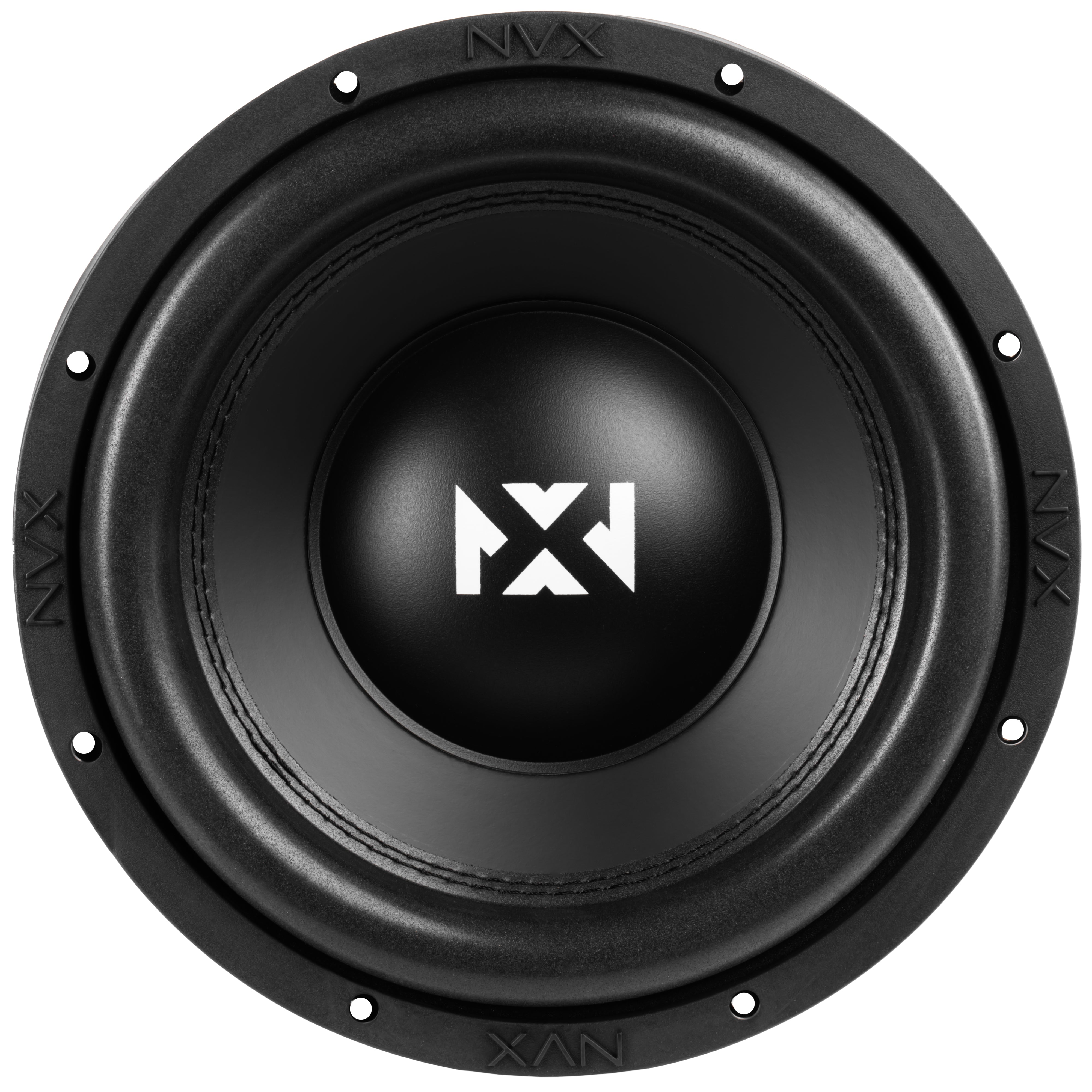

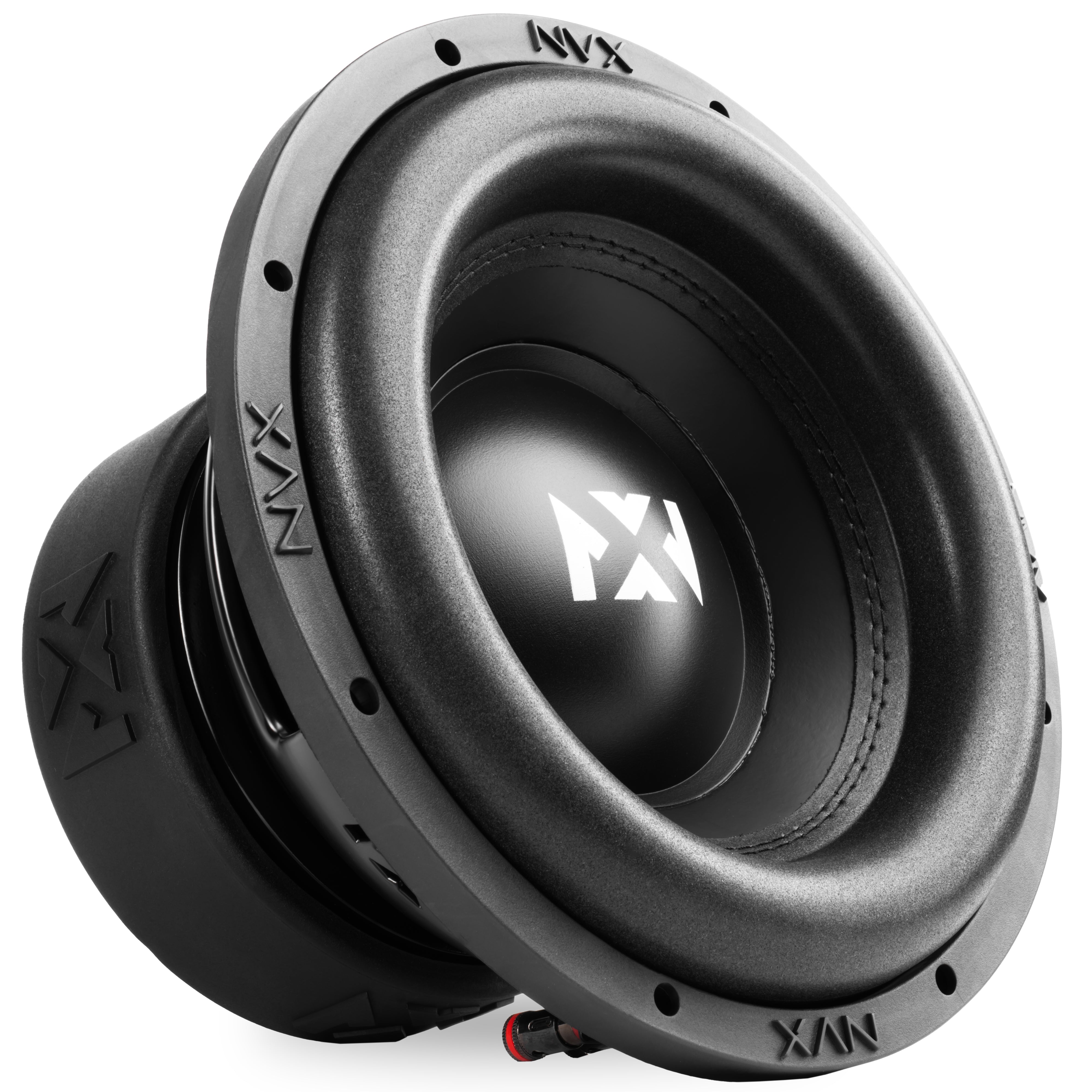

NVX YSW102 Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 81dB
Frequency response 20 - 200Hz

Thiele & Small parameters

Resonance frequency (free air) fS 30.2Hz
Mechanical quality factor QMS 6.38
Electrical quality factor QES 0.48
Total quality factor QTS 0.45

Large signal parameters

Maximum linear excursion (one way) xmax 15mm
Air volume displaced at xmax VD 481cm³
Power handling P 800W
Program power Pmax 1600W

Voice Coil

Nominal impedance Z 2 x 2Ω
DC resistance (in series) RE 3.6Ω
Inductance (1kHz, in series, estimated) LE 3.7mH

Magnet

Force factor (in series) Bl 21.3N/A
Motor constant Bl/√RE 11.2N/√W

Diaphragm

Effective diameter 202mm
Effective area SD 320cm²
Moving mass (including air load) MMS 318g
Moving mass MMD 314g

Suspensions

Stiffness KMS 11.5N/mm
Compliance CMS 87µm/N
Equivalent volume to the compliance VAS 12.7L
Mechanical resistance RMS 9.48N·s/m

Dimensions

Nominal diameter 10″
254mm
Overall diameter 263mm
Baffle cutout diameter 227mm
Mounting depth 150mm
Volume occupied by the driver 1.7L
Net weight 8.799kg
