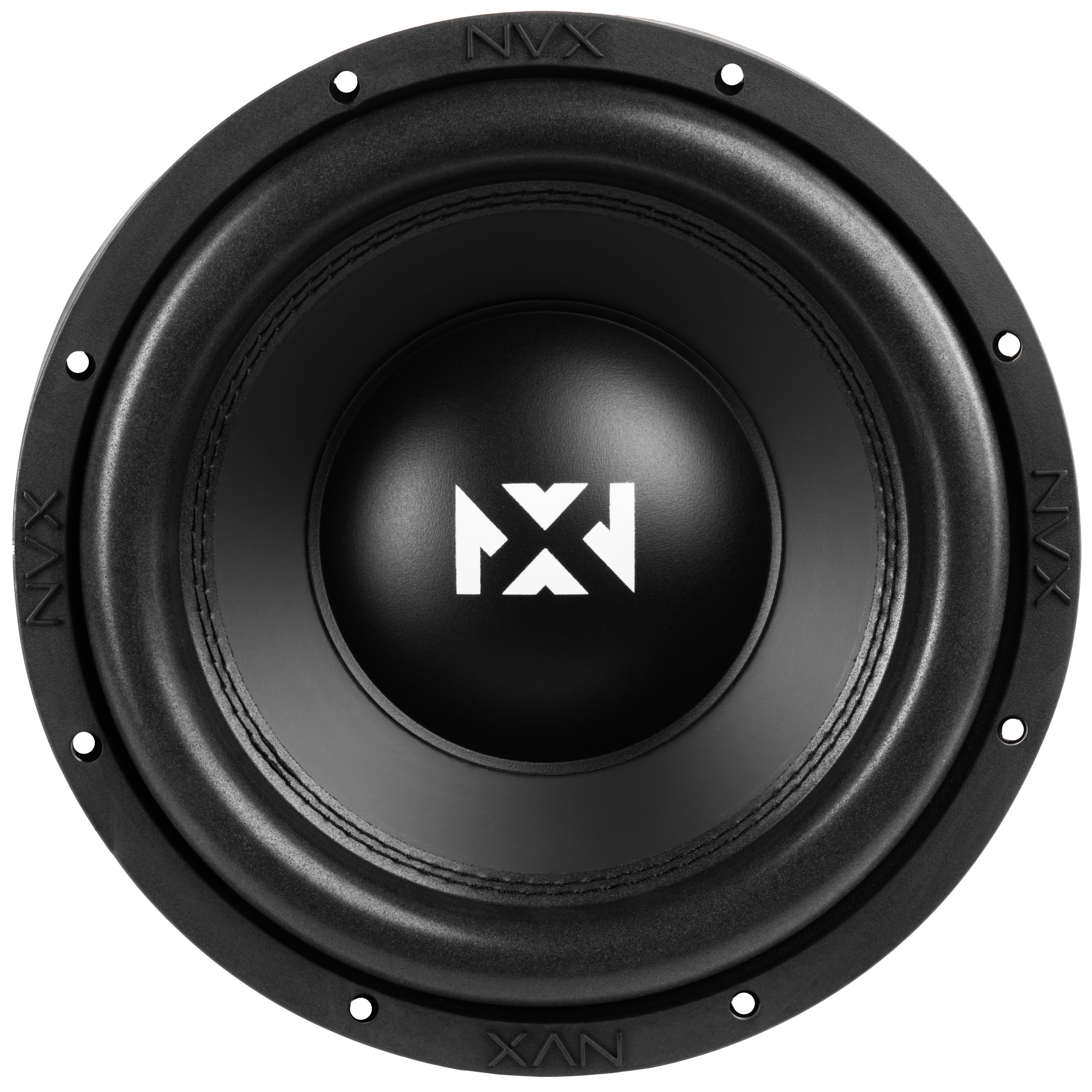

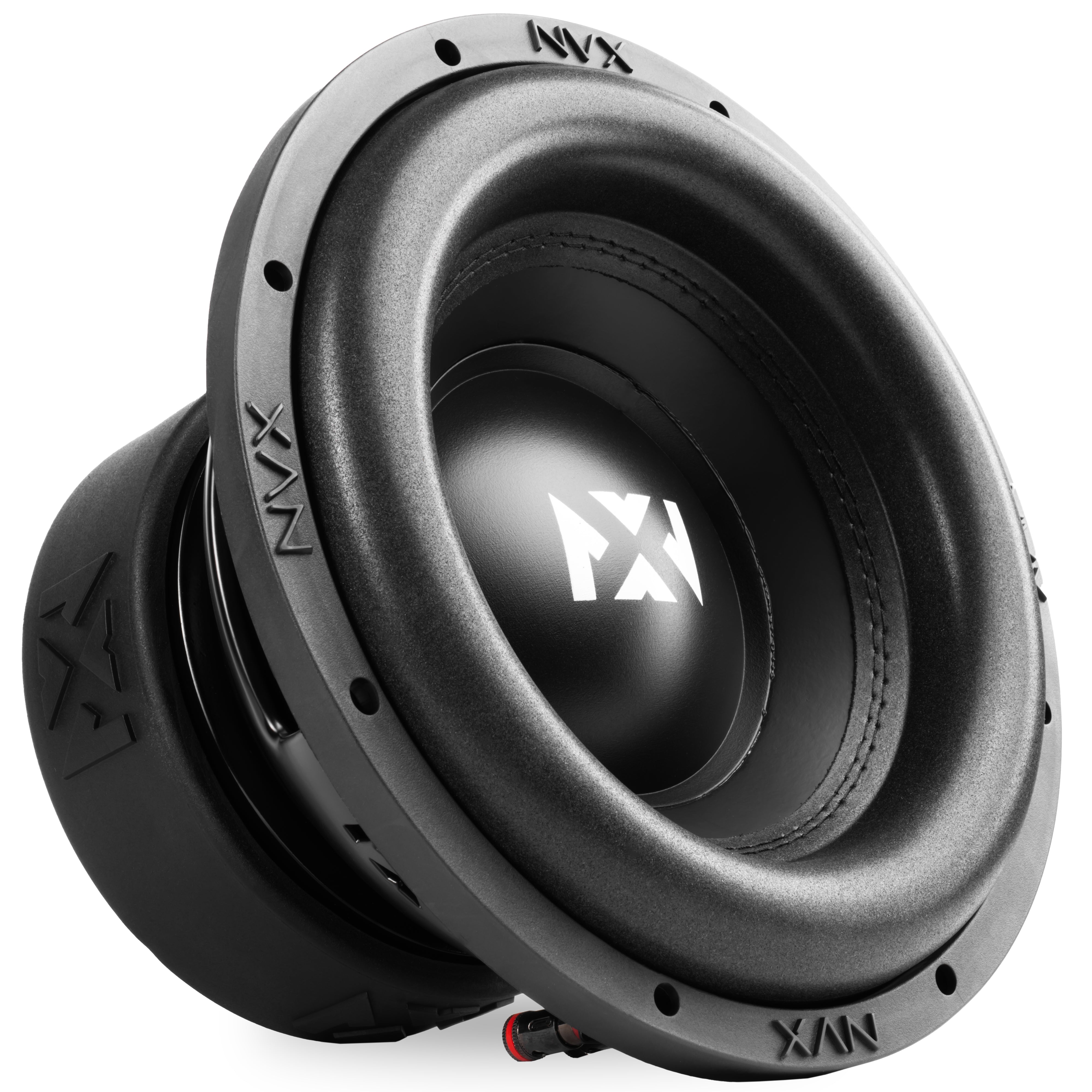

NVX YSW104
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 30.7 Hz |
| Q factor | 0.48 |
| Sensitivity | 81.1 dB |
| Linear excursion | ± 15 mm |
| Program power | 1600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.1dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30.7Hz
- Mechanical quality factor QMS 4.13
- Electrical quality factor QES 0.54
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 15mm
- Air volume displaced at xmax VD 481cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 5.92mH
Magnet
- Force factor (in series) Bl 24.9N/A
- Motor constant Bl/√RE 9.84N/√W
Diaphragm
- Effective diameter 202mm
- Effective area SD 320cm²
- Moving mass (including air load) MMS 272g
- Moving mass MMD 268g
Suspensions
- Stiffness KMS 10.1N/mm
- Compliance CMS 99µm/N
- Equivalent volume to the compliance VAS 14.4L
- Mechanical resistance RMS 12.7N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 263mm
- Baffle cutout diameter 227mm
- Mounting depth 150mm
- Volume occupied by the driver 1.7L
- Net weight 8.8kg
