DS18 IXS10.4D

2x4Ω

Shallow Subwoofer

Nominal diameter	10″ / 270 mm
Resonance	38 Hz
Q factor	0.70
Sensitivity	84.8 dB
Program Power	1200 W

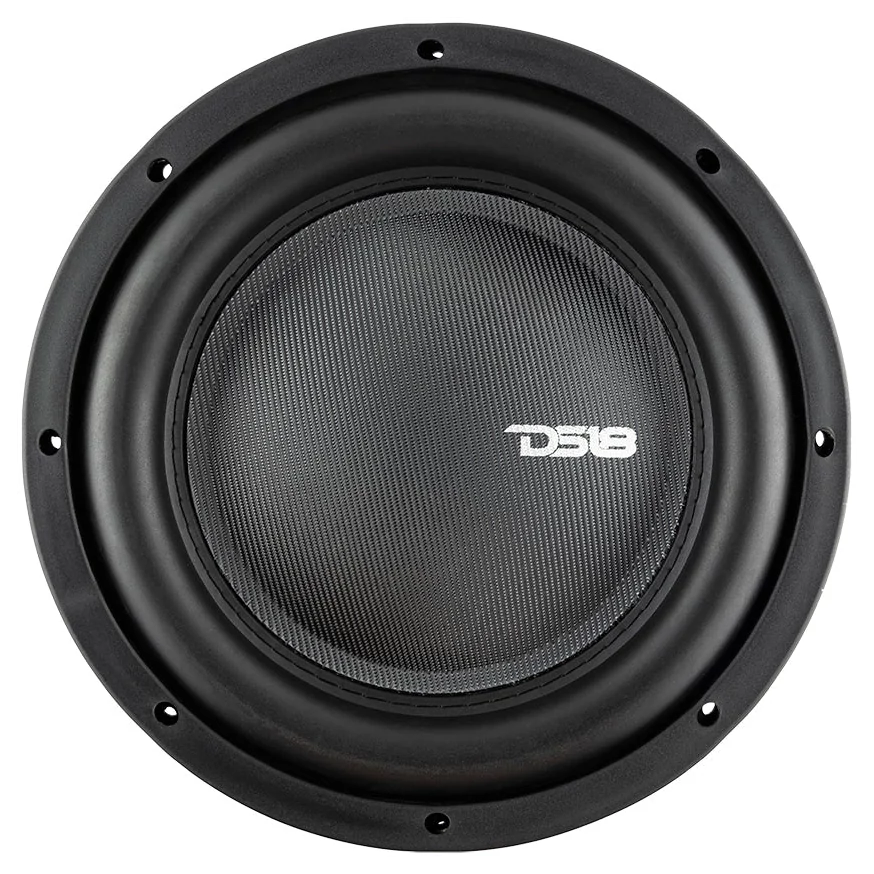

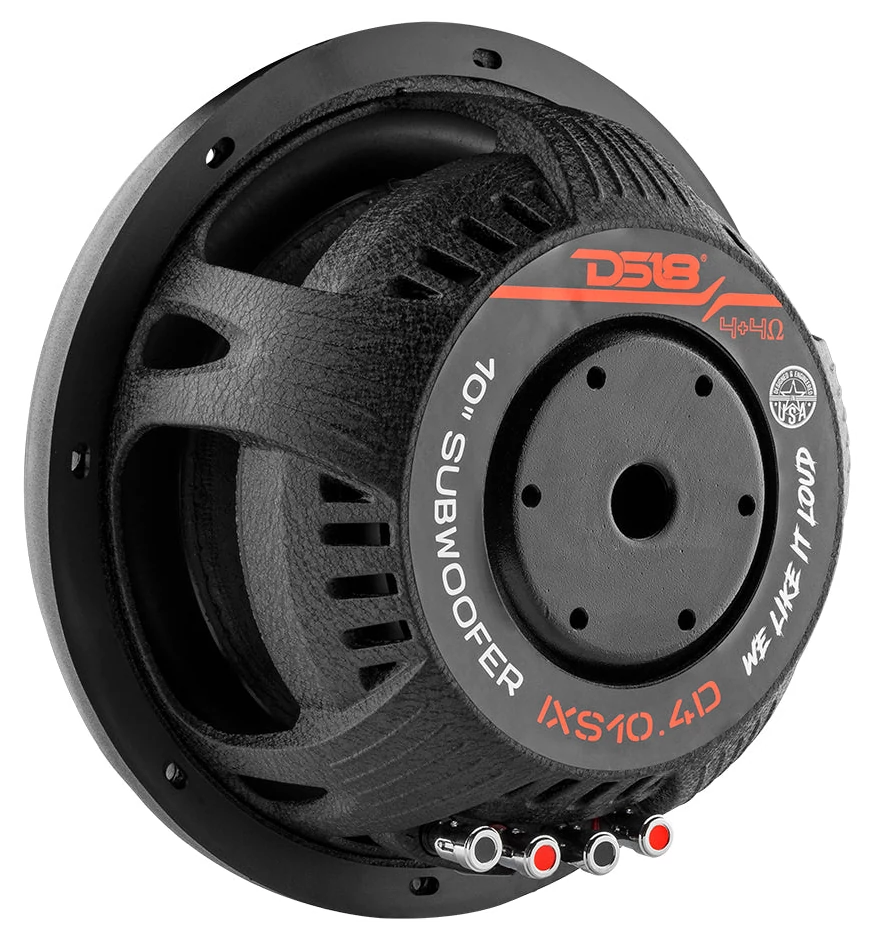

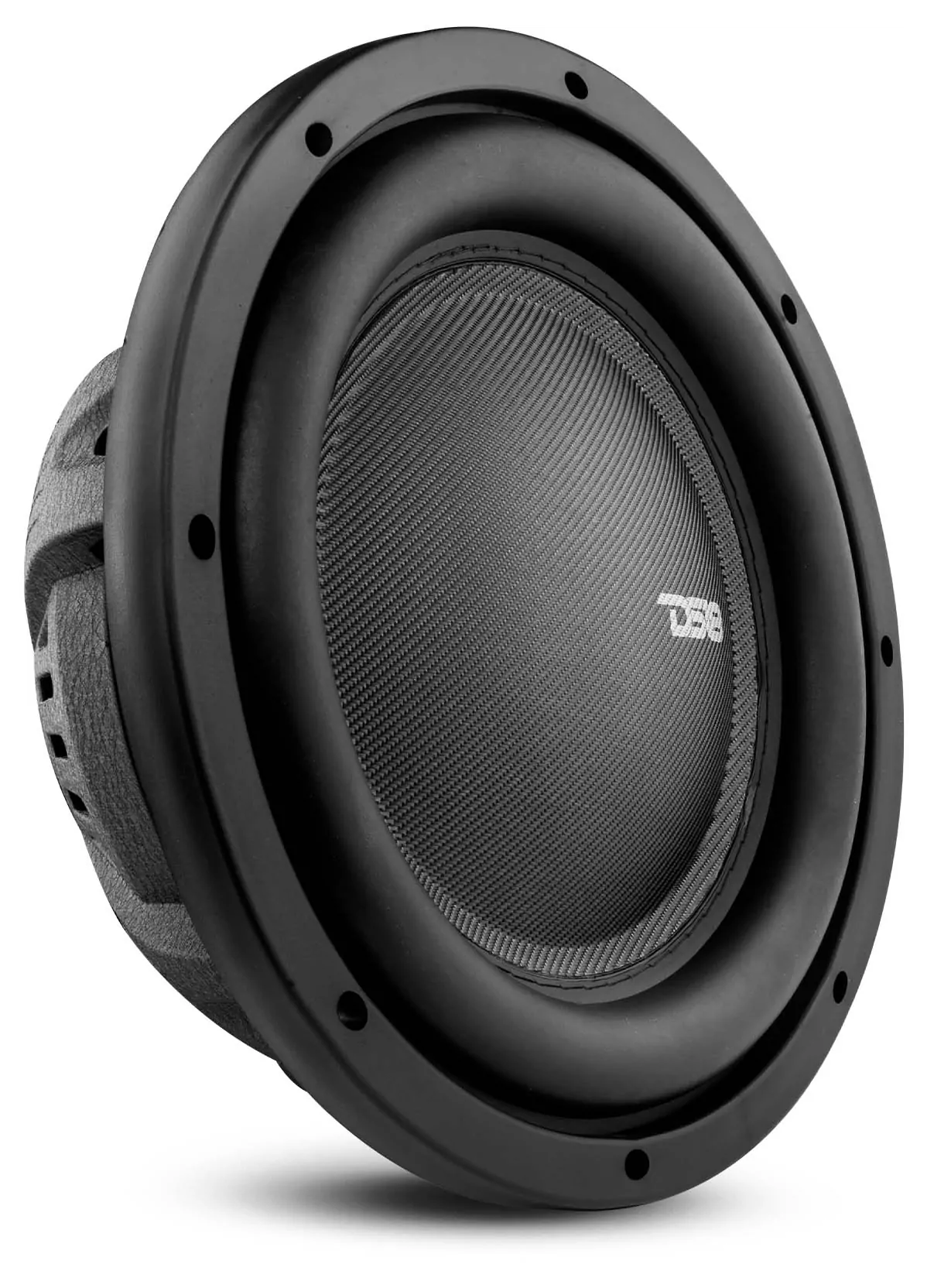

DS18 IXS10.4D Shallow Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 84.8dB
Frequency response 20 - 800Hz

Thiele & Small parameters

Resonance frequency (free air) fS 38Hz
Mechanical quality factor QMS 4.30
Electrical quality factor QES 0.84
Total quality factor QTS 0.70

Large signal parameters

Power handling P 600W
Program power Pmax 1200W

Voice Coil

Nominal impedance Z 2 x 4Ω
DC resistance (in series) RE 7.9Ω
Inductance (1kHz, in series) LE 7.15mH
VC Diameter 63.5mm
Winding material Copper
Former material Aluminum

Magnet

Force factor (in series) Bl 17N/A
Motor constant Bl/√RE 6.06N/√W
Diameter 156mm
Material Ferrite

Diaphragm

Effective diameter 208mm
Effective area SD 341cm²
Moving mass MMS 128g
Moving mass (without air load) MMD 124g
Material Paper

Suspensions

Stiffness KMS 8.93N/mm
Compliance CMS 112µm/N
Equivalent volume to the compliance VAS 18.5L
Mechanical resistance RMS 7.13N·s/m
Surround material Stitched Rubber

Dimensions

Nominal diameter 10″
270mm
Overall diameter 270mm
Baffle cutout diameter 235mm
Overall depth 105mm
Flange thickness 12mm
Mounting depth 93mm
Volume occupied by the driver 0.9L
Frame material Aluminium

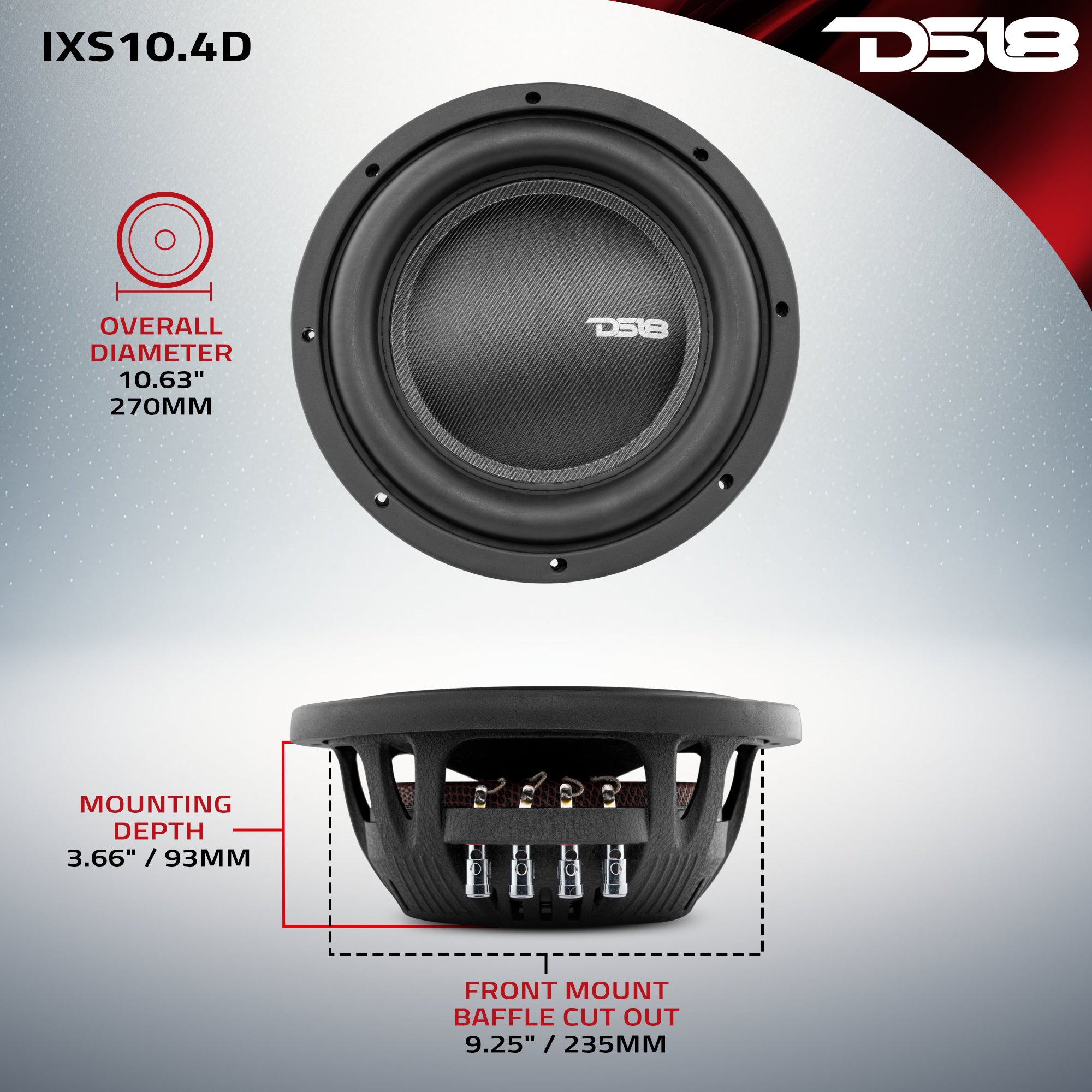

DS18 IXS10.4D Dimensions

Export this driver to a simulation software:

Closed Box Simulator·
