KICKER CompVT 52CVT102
2Ω
4ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 37.8 Hz |
| Q factor | 0.61 |
| Sensitivity | 85.3 dB |
| Linear excursion | ± 13 mm |
| Program Power | 750 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 37.8Hz
- Mechanical quality factor QMS 8.06
- Electrical quality factor QES 0.66
- Total quality factor QTS 0.61
Large signal parameters
- Maximum linear excursion (one way) xmax 13mm
- Air volume displaced at xmax VD 476cm³
- Power handling P 375W
- Program power Pmax 750W
Voice Coil
- Nominal impedance Z 2Ω
- DC resistance RE 2.0Ω
- Inductance (1kHz) LE 1.96mH
Magnet
- Force factor Bl 10.6N/A
- Motor constant Bl/√RE 7.41N/√W
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass MMS 153g
- Moving mass (without air load) MMD 149g
Suspensions
- Stiffness KMS 8.64N/mm
- Compliance CMS 116µm/N
- Equivalent volume to the compliance VAS 22L
- Mechanical resistance RMS 4.51N·s/m

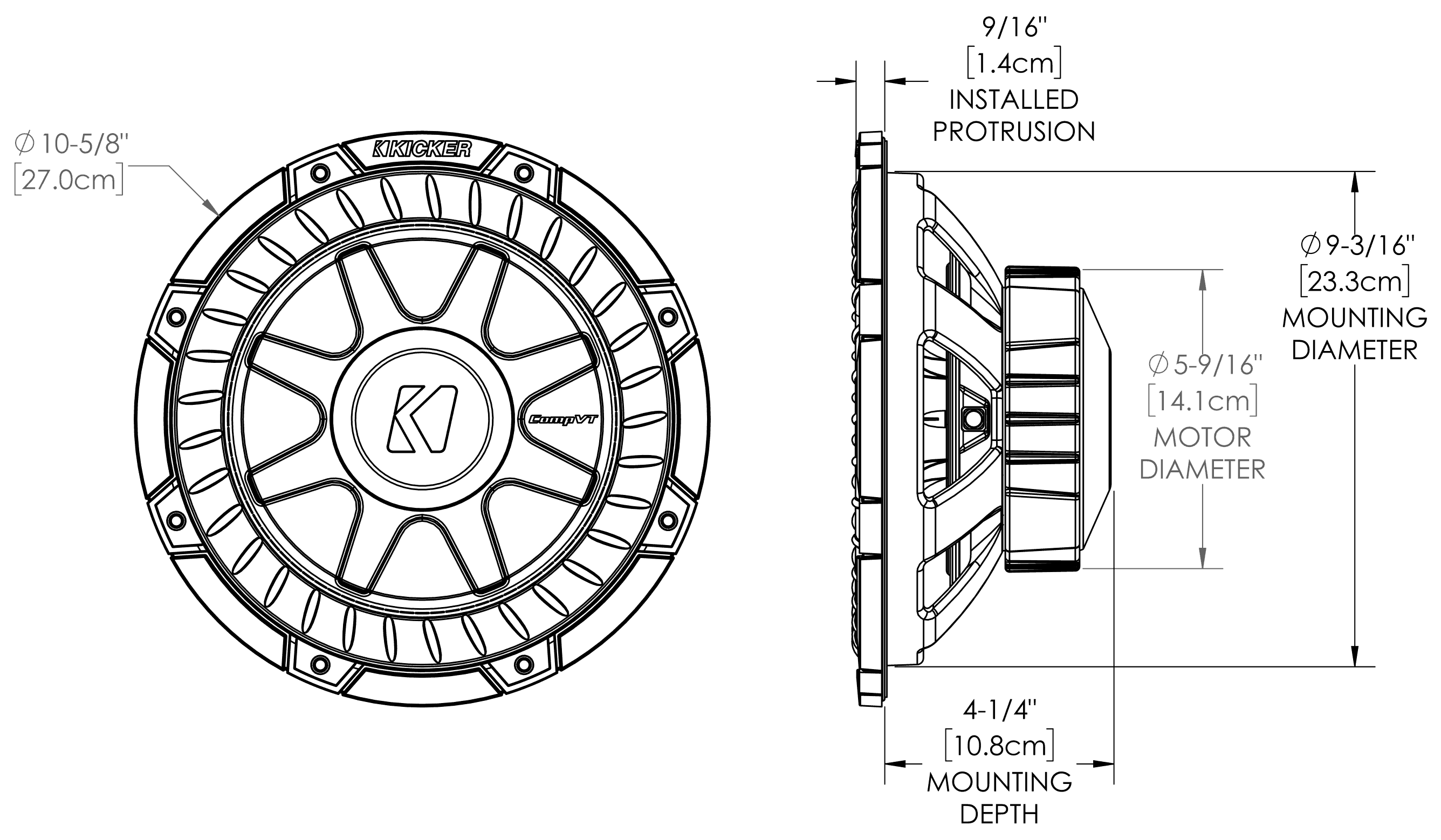

Dimensions
- Nominal diameter 10″
- 250mm
- Baffle cutout diameter 233mm
- Mounting depth 108mm
- Volume occupied by the driver (estimated) 1.5L
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
MfbLabs
