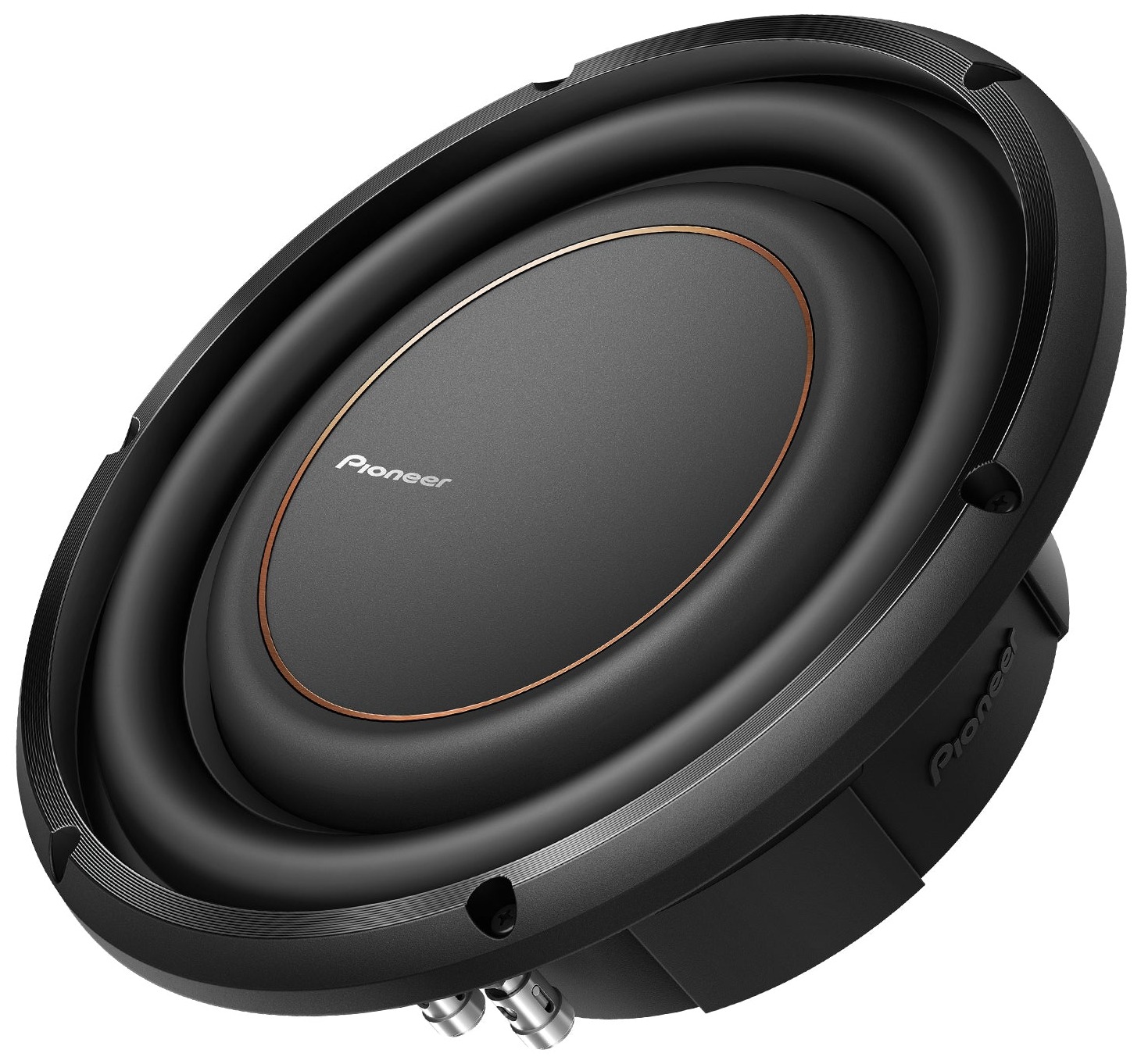

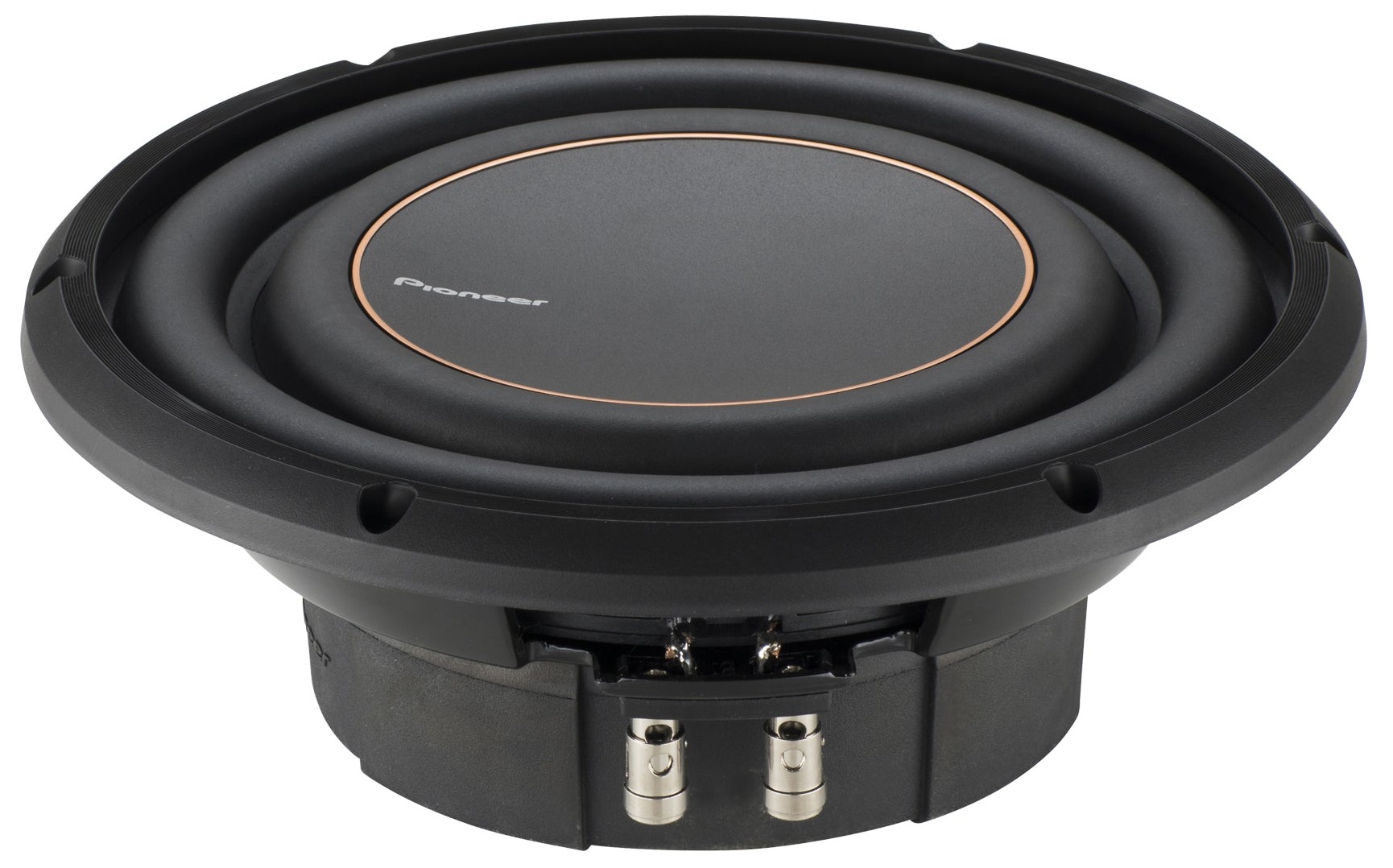

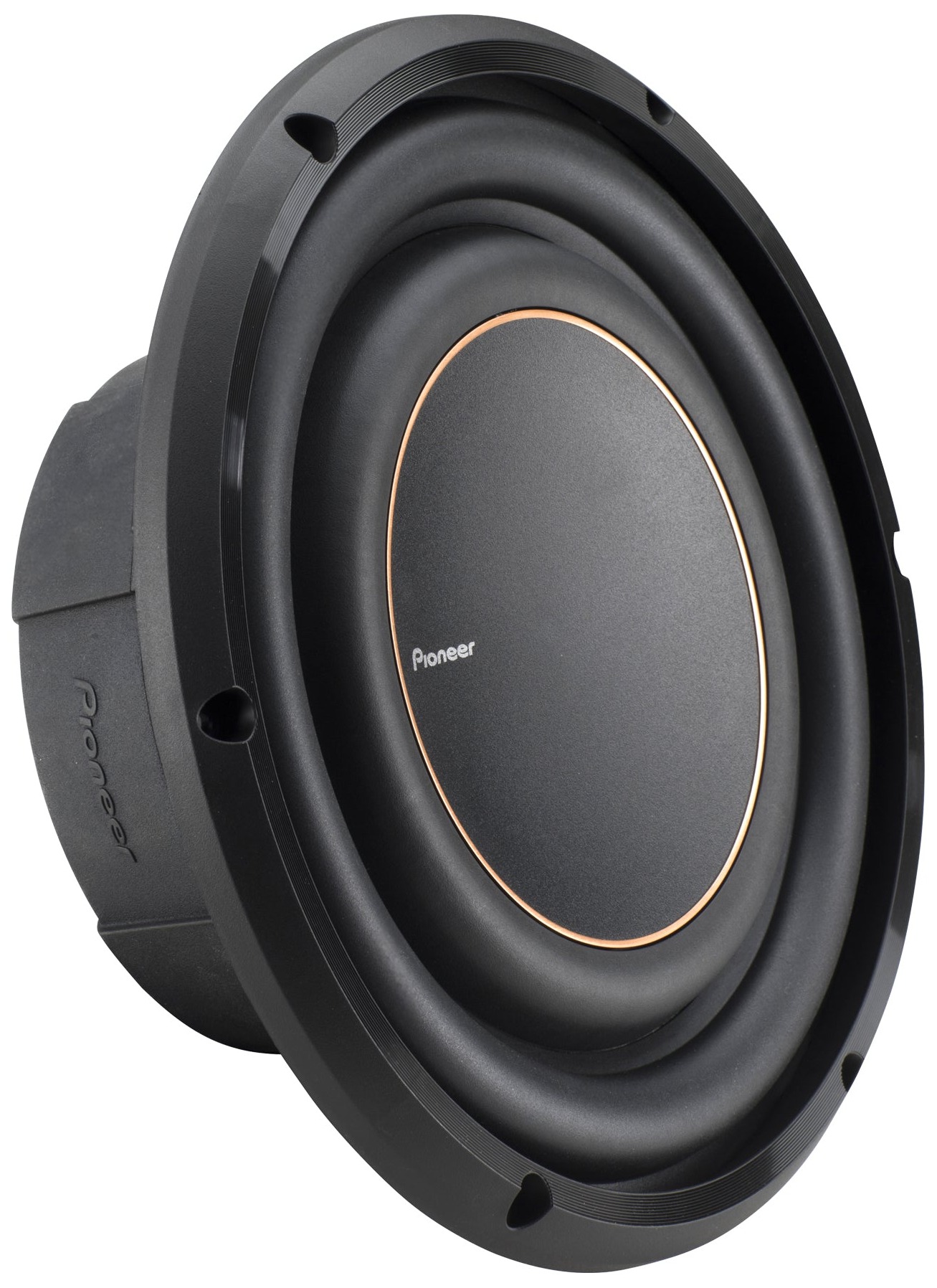

Pioneer TS-D10LS4
2Ω
4Ω
Subwoofer
| Nominal diameter | 10″ / 207 mm |
| Resonance | 37 Hz |
| Q factor | 0.80 |
| Sensitivity | 84.2 dB |
| Linear excursion | ± 8.3 mm |
| Program Power | 700 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.2dB
- Frequency response 20 - 3400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 37Hz
- Mechanical quality factor QMS 11.91
- Electrical quality factor QES 0.86
- Total quality factor QTS 0.80
Large signal parameters
- Maximum linear excursion xmax 8.3mm
- Air volume displaced at xmax VD 283cm³
- Power handling P 350W
- Program power Pmax 700W
- Peak power Ppeak 1300W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 2.09mH
- Winding material Copper
- Former material Glass imide
Magnet
- Force factor Bl 12.3N/A
- Motor constant Bl/√RE 6.77N/√W
- Weight 1.23kg
- Material Ferrite
Diaphragm
- Effective diameter 208mm
- Effective area SD 341cm²
- Moving mass MMS 148g
- Moving mass (without air load) MMD 144g
- Material IMPP - Aramid Fiber
Suspensions
- Stiffness KMS 8.33N/mm
- Compliance CMS 120µm/N
- Equivalent volume to the compliance VAS 19.8L
- Mechanical resistance RMS 2.89N·s/m
- Surround material Rolled Rubber
Dimensions
- Nominal diameter 10″
- 207mm
- Overall diameter 207mm
- Baffle cutout diameter 229mm
- Mounting depth 83mm
- Volume occupied by the driver 0.71L
