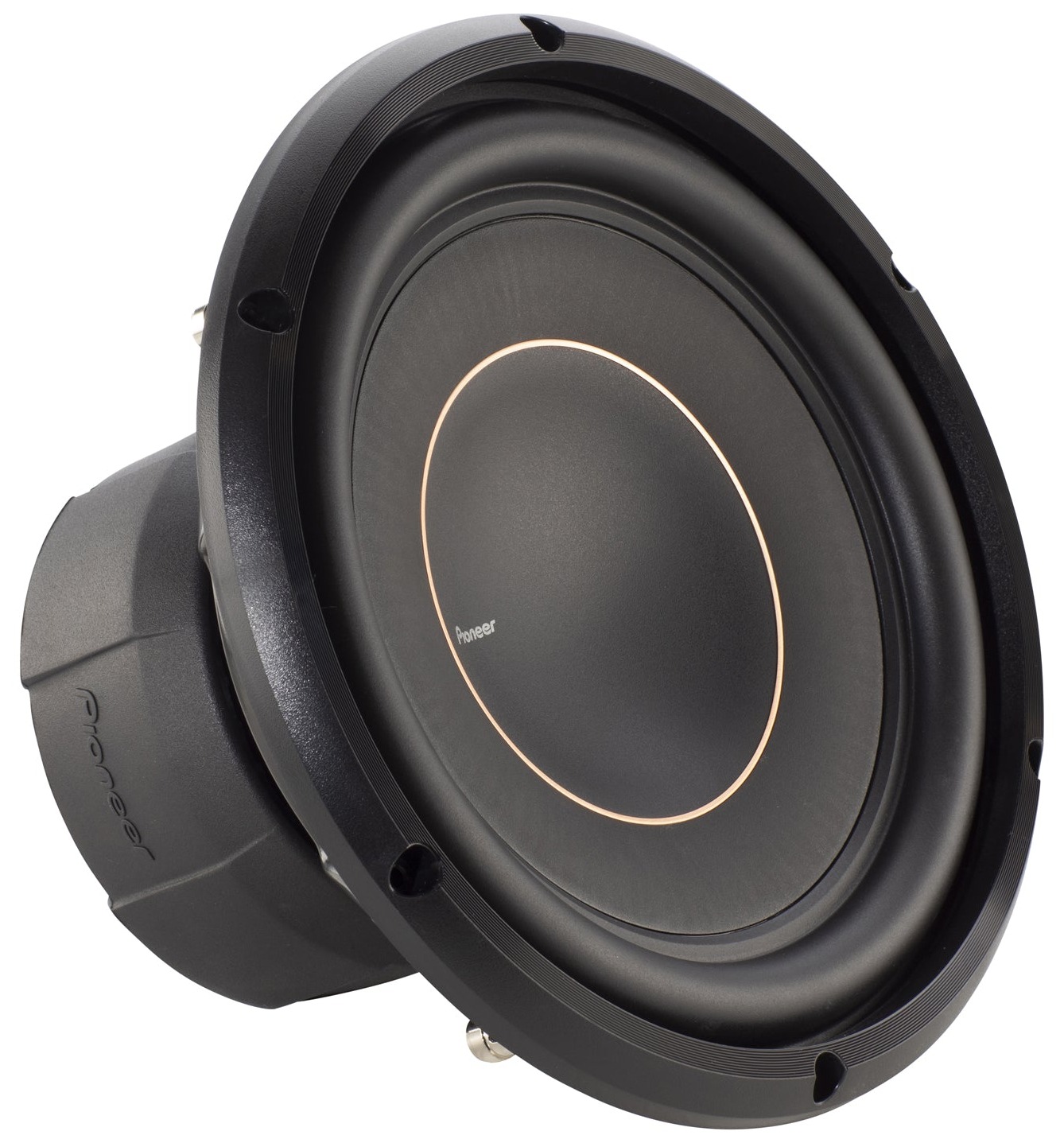

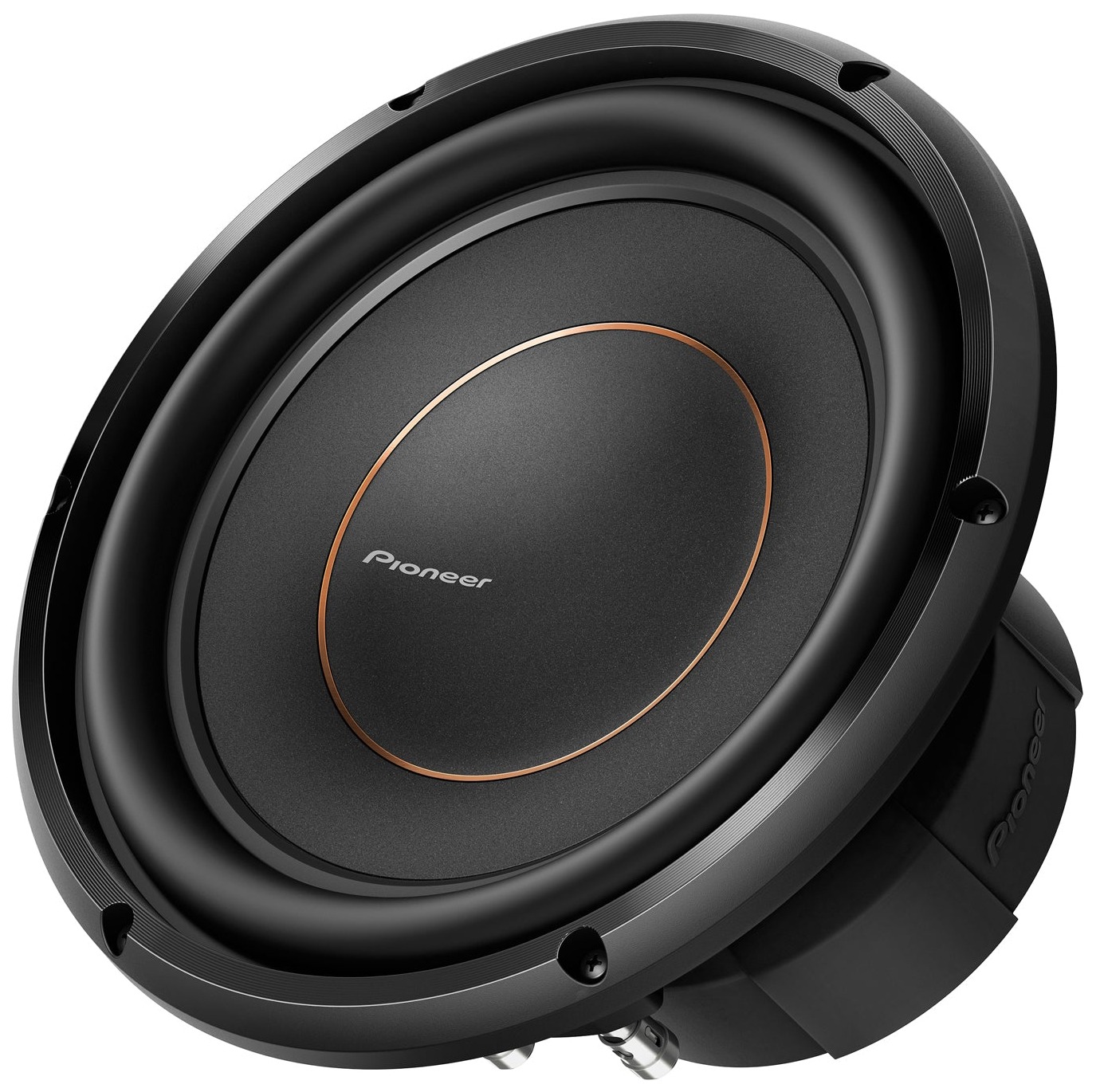

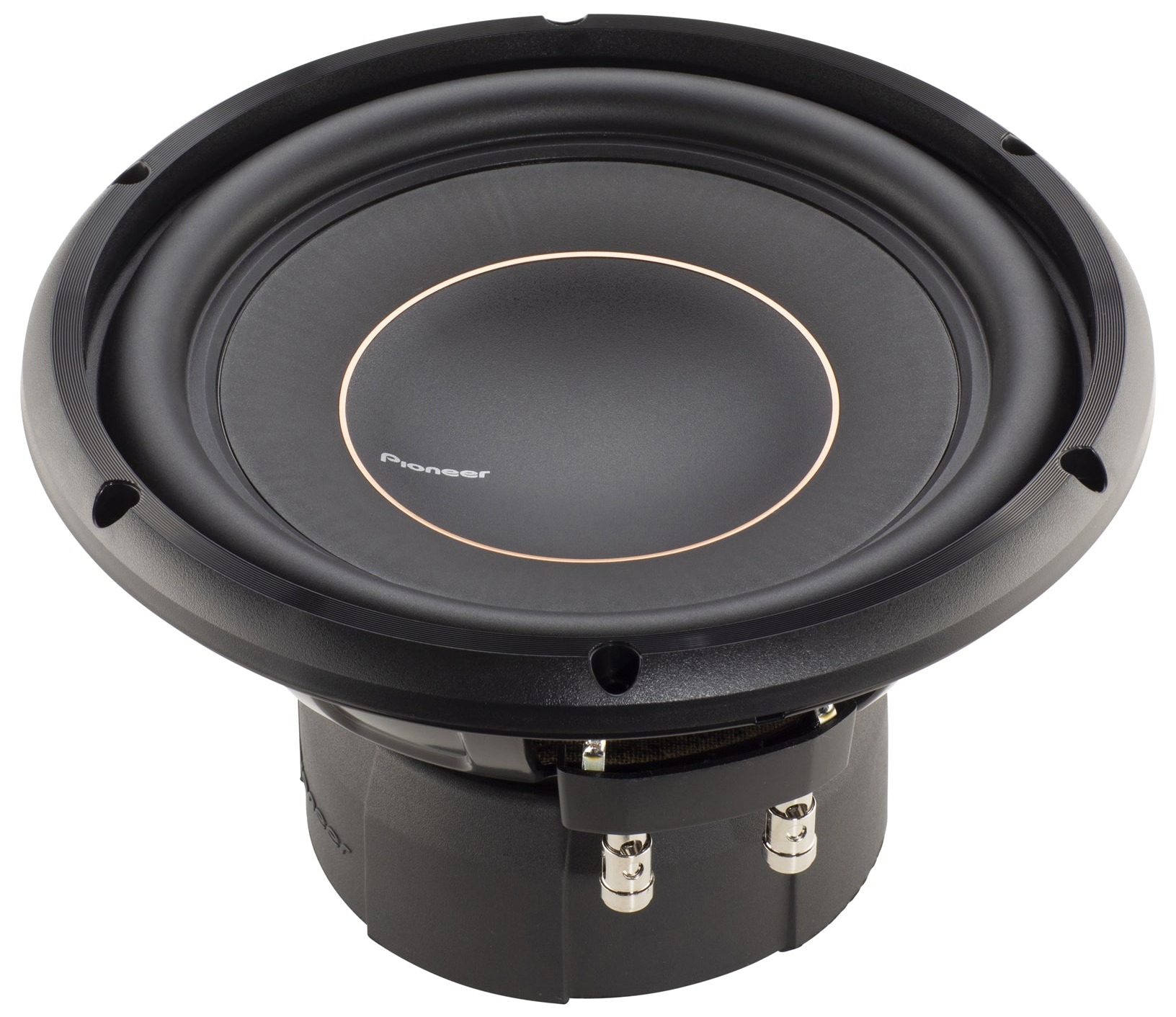

Pioneer TS-D10D4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 209 mm |
| Resonance | 41 Hz |
| Q factor | 0.77 |
| Sensitivity | 84.5 dB |
| Linear excursion | ± 10.8 mm |
| Program Power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.5dB
- Frequency response 20 - 6600Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 8.41
- Electrical quality factor QES 0.85
- Total quality factor QTS 0.77
Large signal parameters
- Maximum linear excursion xmax 10.8mm
- Air volume displaced at xmax VD 362cm³
- Power handling P 500W
- Program power Pmax 1000W
- Peak power Ppeak 1500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series) LE 4.31mH
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 16.1N/A
- Motor constant Bl/√RE 6N/√W
- Weight 1.588kg
- Material Ferrite
Diaphragm
- Effective diameter 207mm
- Effective area SD 335cm²
- Moving mass MMS 124g
- Moving mass (without air load) MMD 120g
- Material IMPP - Aramid Fiber
Suspensions
- Stiffness KMS 7.14N/mm
- Compliance CMS 140µm/N
- Equivalent volume to the compliance VAS 22.3L
- Mechanical resistance RMS 3.69N·s/m
- Surround material Rolled Rubber
- Spider material Aramid Fiber
Dimensions
- Nominal diameter 10″
- 209mm
- Overall diameter 209mm
- Baffle cutout diameter 229mm
- Mounting depth 140mm
- Volume occupied by the driver 0.96L
