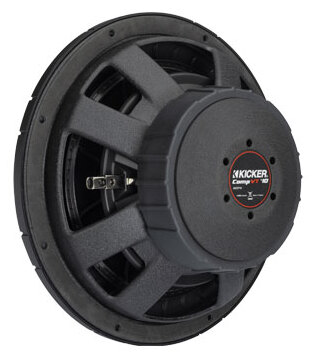

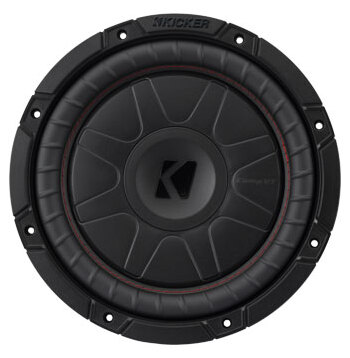

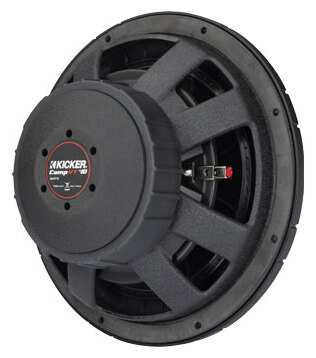

KICKER CompVT 52CVT104

• Sensitivity (1W, 1m, infinite baffle) SPL1W 85.1dB

Thiele & Small parameters

• Resonance frequency (free air) fS 38.6Hz
• Mechanical quality factor QMS 7.69
• Electrical quality factor QES 0.76
• Total quality factor QTS 0.69

Large signal parameters

• Maximum linear excursion xmax 13mm
• Air volume displaced at xmax VD 476cm³
• Power handling P 375W
• Program power Pmax 750W

Voice Coil

• Nominal impedance Z 4Ω
• DC resistance RE 3.7Ω
• Inductance (1kHz) LE 2.93mH

Magnet

• Force factor Bl 13N/A
• Motor constant Bl/√RE 6.8N/√W

Diaphragm

• Effective diameter 216mm
• Effective area SD 366cm²
• Moving mass MMS 144g
• Moving mass (without air load) MMD 140g

Suspensions

• Stiffness KMS 8.49N/mm
• Compliance CMS 118µm/N
• Equivalent volume to the compliance VAS 22.4L
• Mechanical resistance RMS 4.55N·s/m

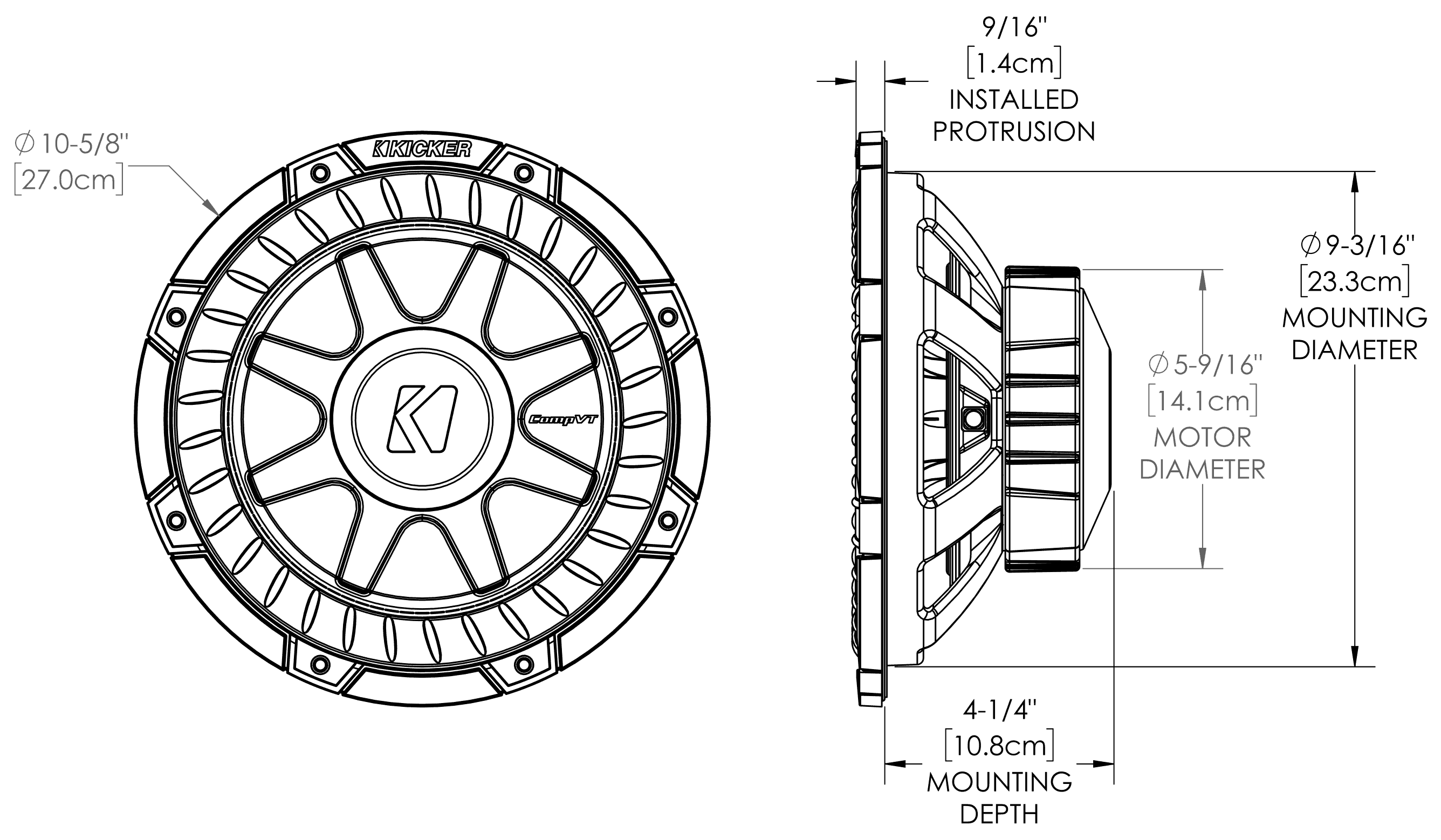

Dimensions

• Nominal diameter 10″
• 250mm
• Baffle cutout diameter 233mm
• Mounting depth 108mm
• Volume occupied by the driver (estimated) 1.5L
