Pioneer TS-D10D2

2x2Ω
2x4Ω

Subwoofer

Nominal diameter10″ / 209 mm
Resonance40 Hz
Q factor0.70
Sensitivity85.5 dB
Linear excursion± 9.8 mm
Program Power1000 W

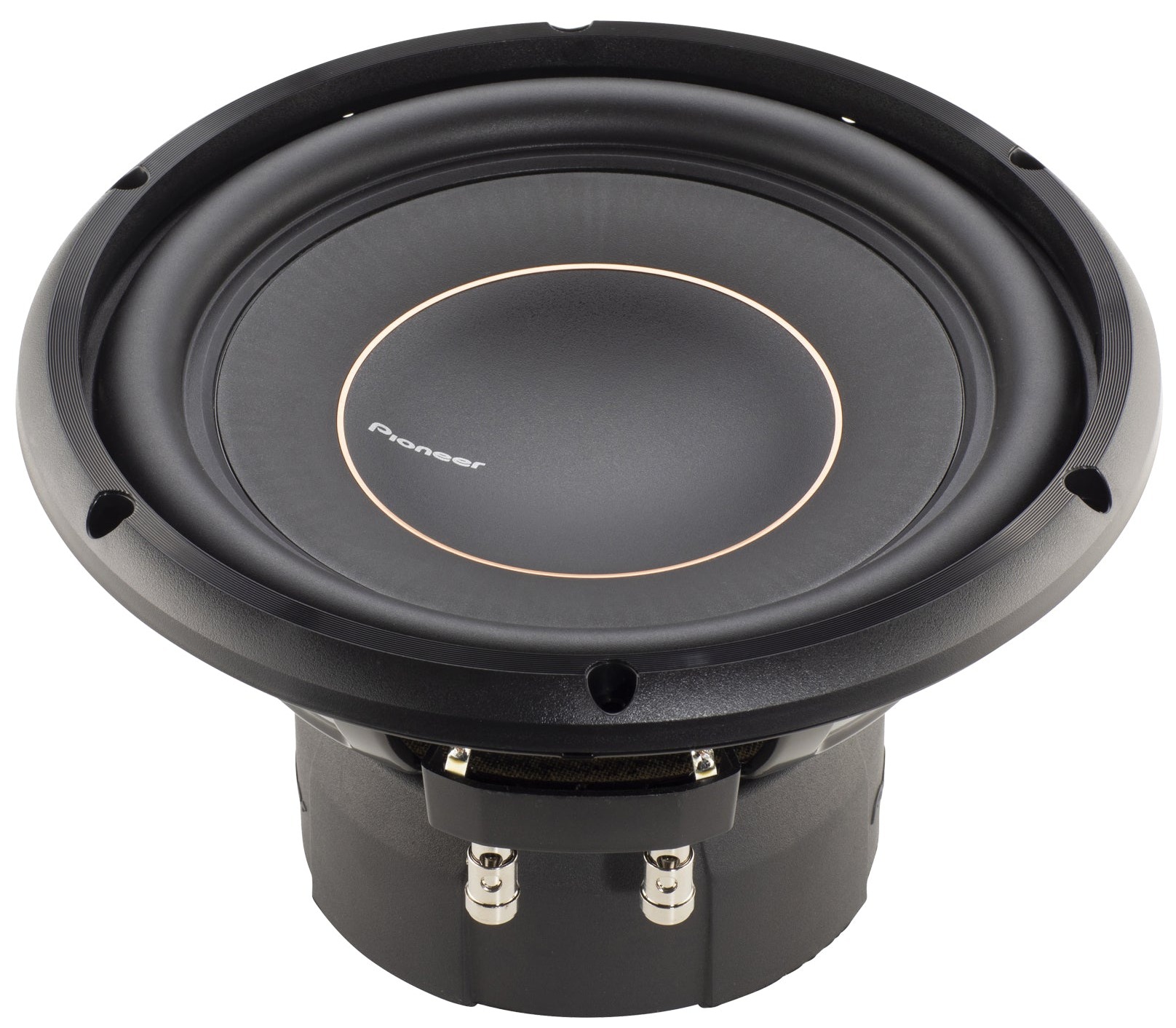

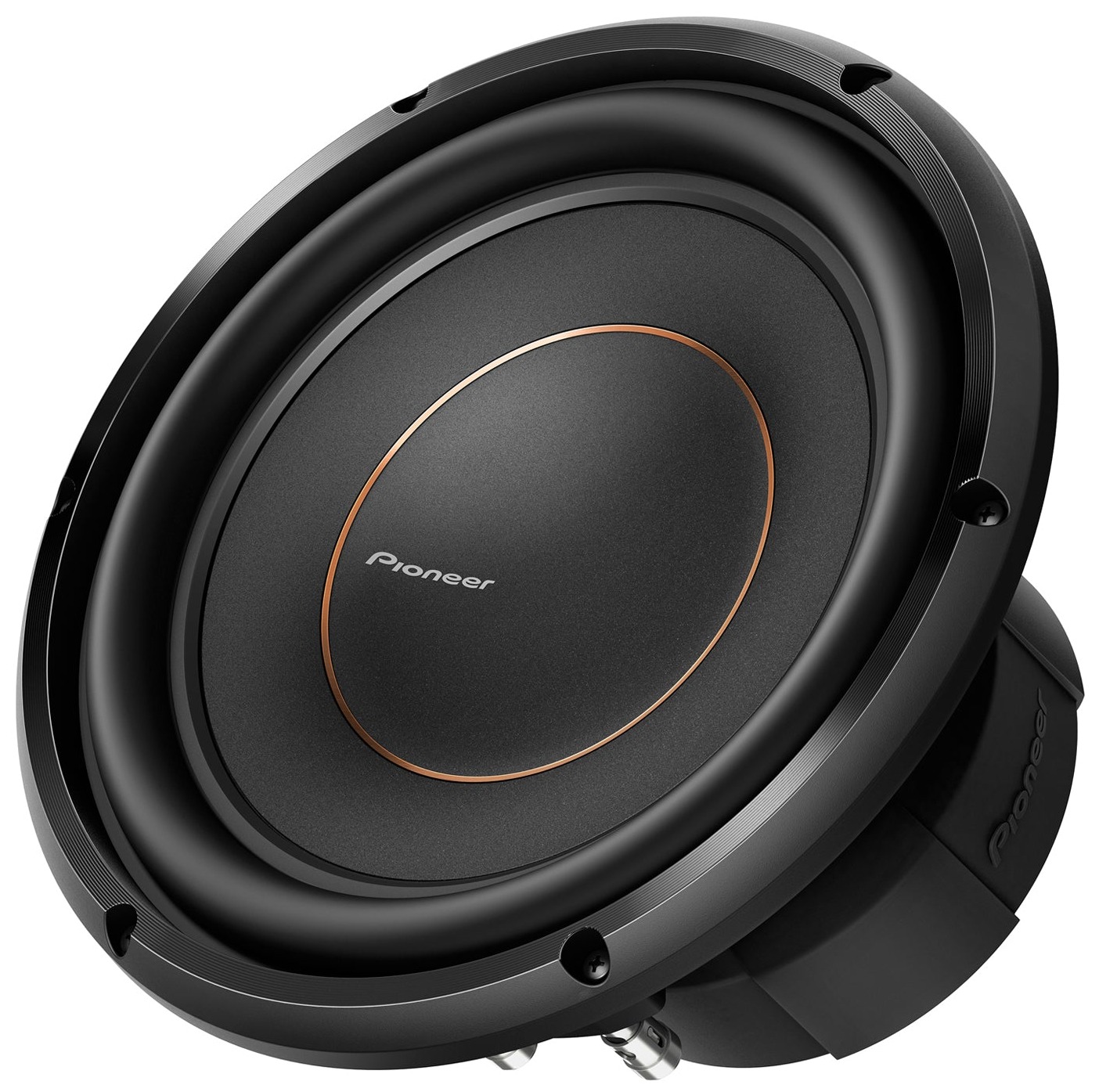

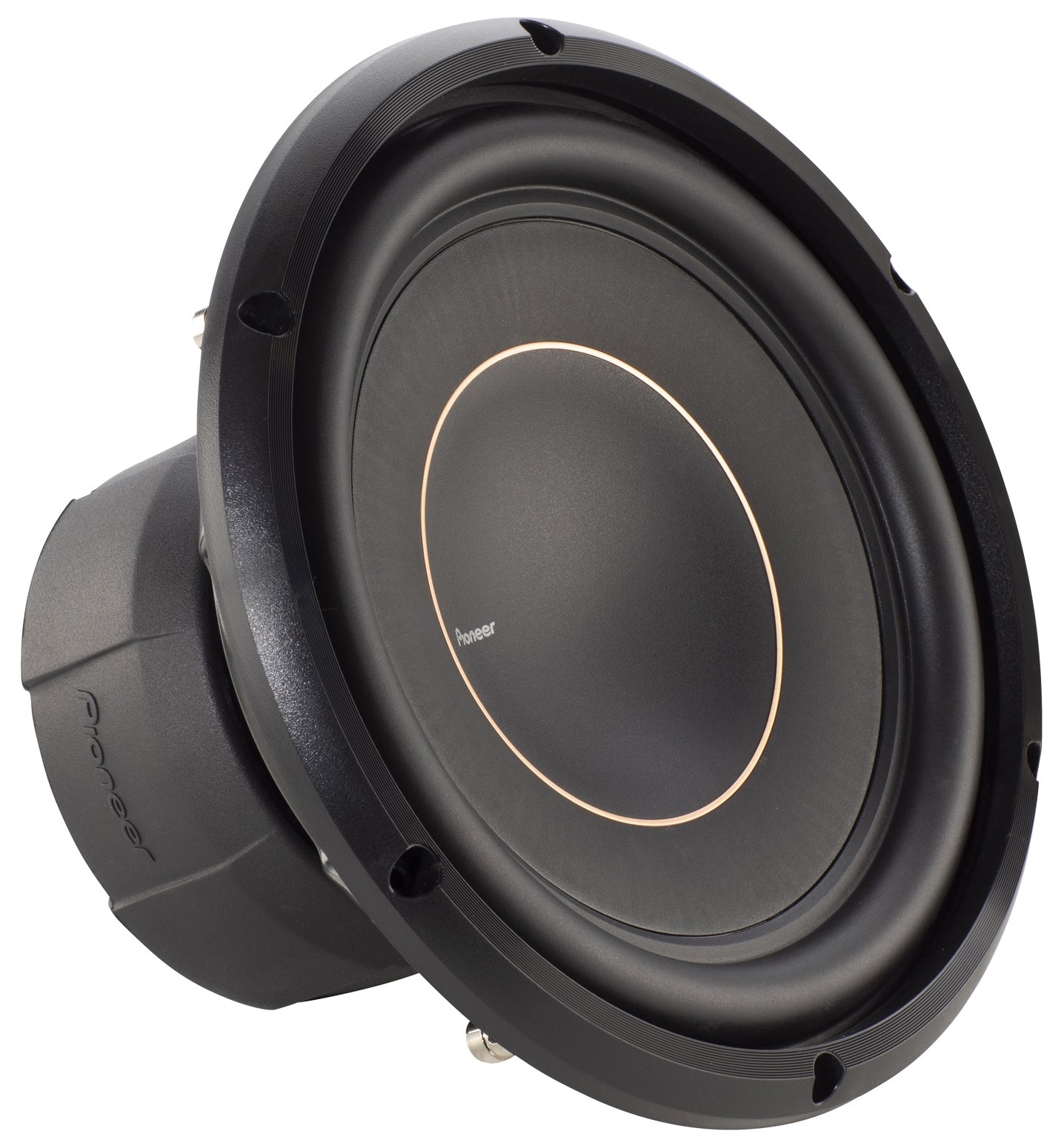

Pioneer TS-D10D2 SubwooferPioneer TS-D10D2 SubwooferPioneer TS-D10D2 Subwoofer
Excursion
Velocity
SPL
Phase
Group delay
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 85.5dB
  • Frequency response 20 - 6600Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 40Hz
  • Mechanical quality factor QMS 8.74
  • Electrical quality factor QES 0.76
  • Total quality factor QTS 0.70

Large signal parameters

  • Maximum linear excursion xmax 9.8mm
  • Air volume displaced at xmax VD 343cm³
  • Power handling P 500W
  • Program power Pmax 1000W
  • Peak power Ppeak 1500W

Voice Coil

  • Nominal impedance Z 2 x 2Ω
  • DC resistance (in series) RE 3.4Ω
  • Inductance (1kHz, in series) LE 2.59mH
  • Winding material Copper
  • Former material Aluminum

Magnet

  • Force factor (in series) Bl 12.7N/A
  • Motor constant Bl/√RE 6.89N/√W
  • Weight 1.599kg
  • Material Ferrite

Diaphragm

  • Effective diameter 211mm
  • Effective area SD 350cm²
  • Moving mass MMS 131g
  • Moving mass (without air load) MMD 127g
  • Material IMPP - Aramid Fiber

Suspensions

  • Stiffness KMS 8.33N/mm
  • Compliance CMS 120µm/N
  • Equivalent volume to the compliance VAS 20.9L
  • Mechanical resistance RMS 3.76N·s/m
  • Surround material Rolled Rubber
  • Spider material Aramid Fiber

Dimensions

  • Nominal diameter 10″
  • 209mm
  • Overall diameter 209mm
  • Baffle cutout diameter 229mm
  • Mounting depth 140mm
  • Volume occupied by the driver 0.96L
Impedance
Step response
Tone Burst
PDF fileDatasheet
