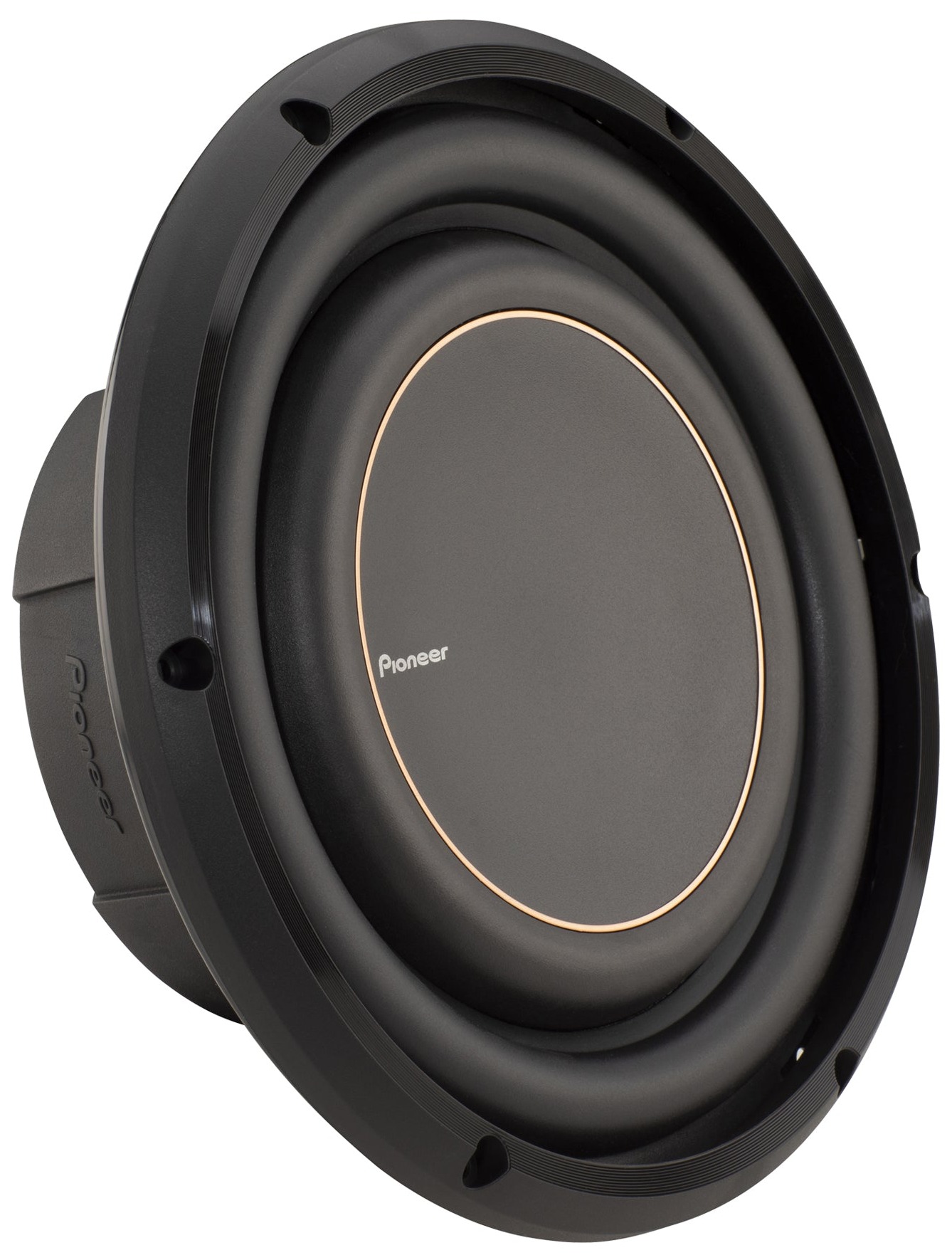

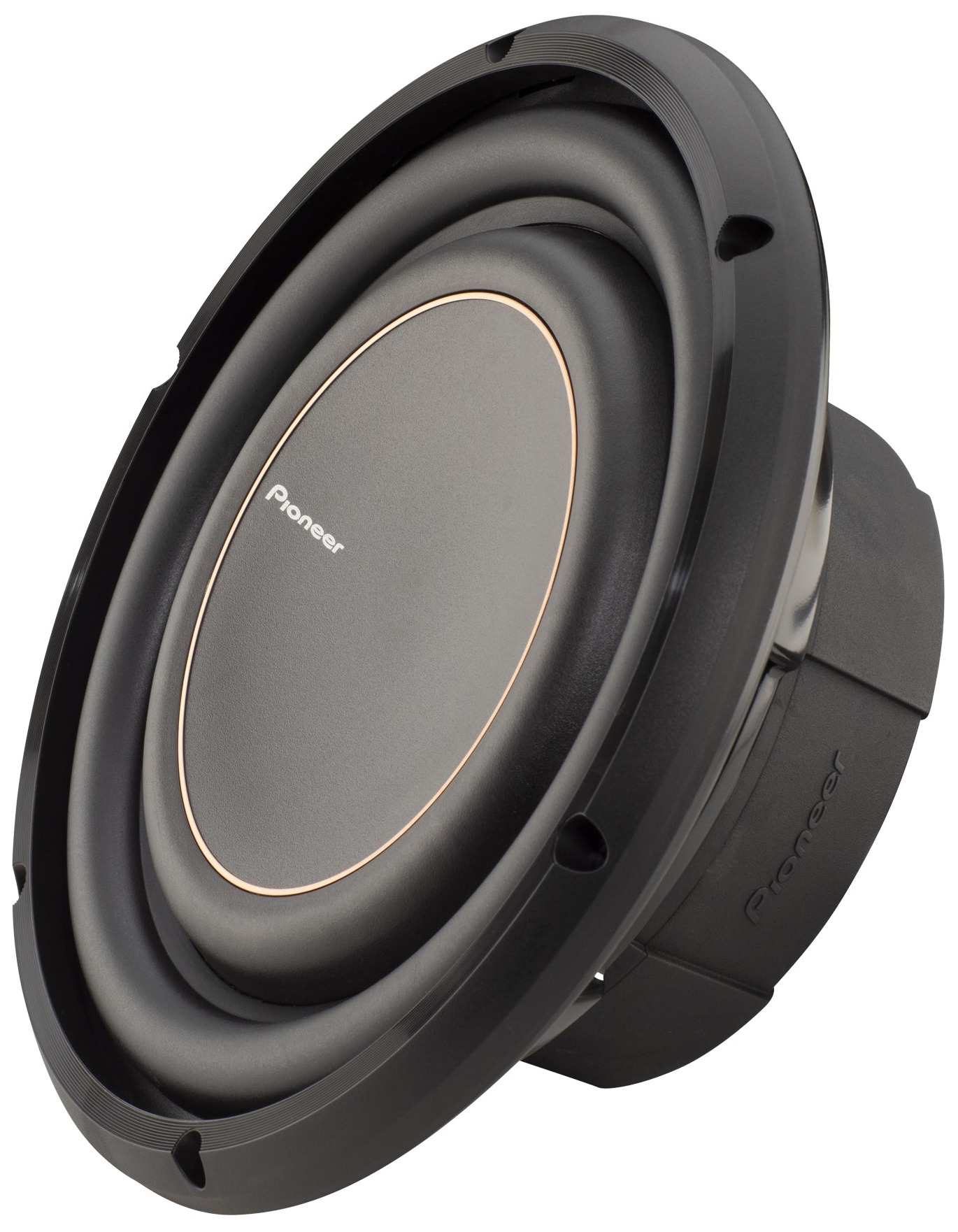

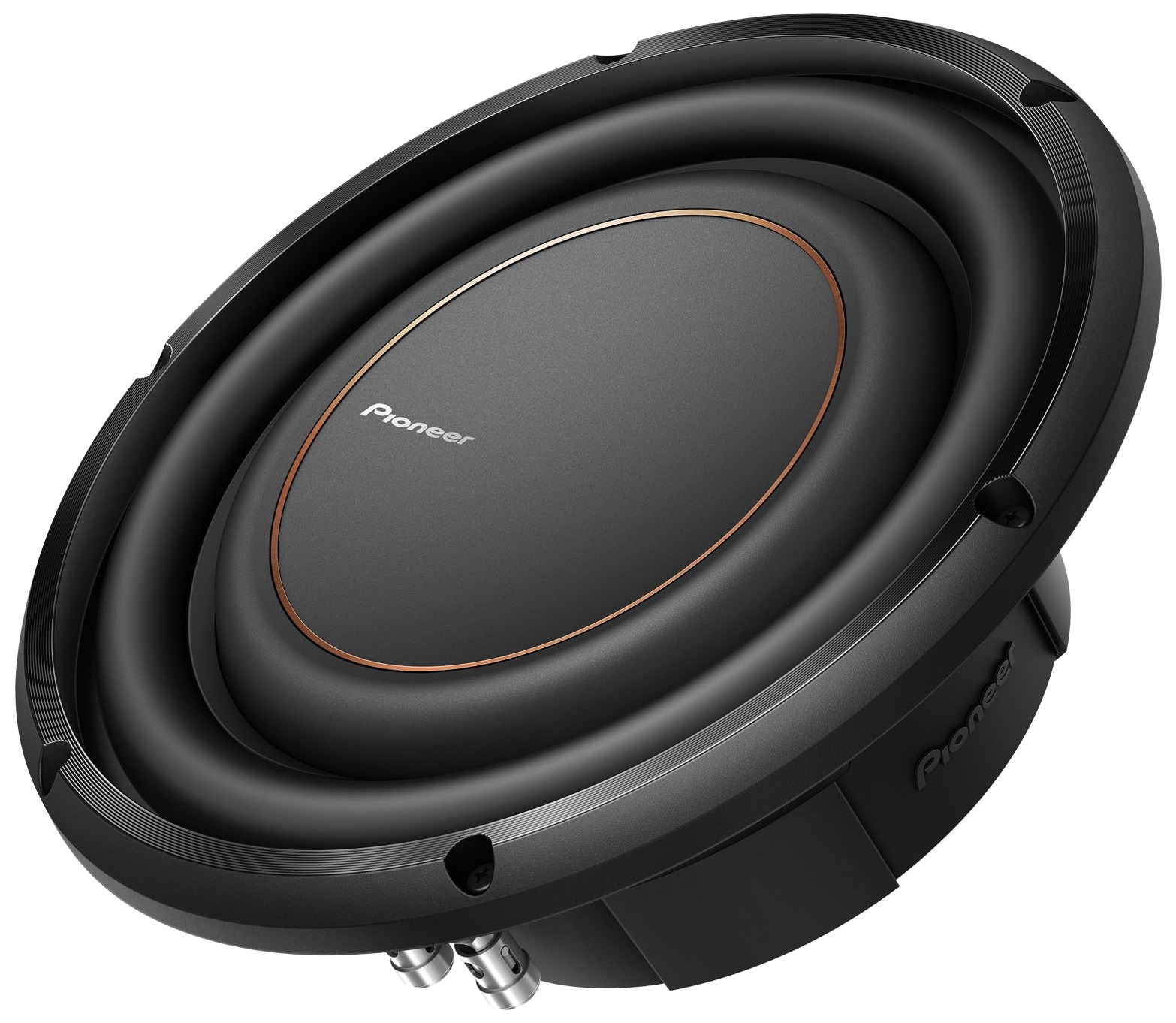

Pioneer TS-D10LS2
2Ω
4ΩSubwoofer
| Nominal diameter | 10″ / 207 mm |
| Resonance | 36 Hz |
| Q factor | 0.75 |
| Sensitivity | 83.8 dB |
| Linear excursion | ± 7.9 mm |
| Program Power | 700 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.8dB
- Frequency response 20 - 3400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36Hz
- Mechanical quality factor QMS 11.71
- Electrical quality factor QES 0.80
- Total quality factor QTS 0.75
Large signal parameters
- Maximum linear excursion xmax 7.9mm
- Air volume displaced at xmax VD 268cm³
- Power handling P 350W
- Program power Pmax 700W
- Peak power Ppeak 1300W
Voice Coil
- Nominal impedance Z 2Ω
- DC resistance RE 1.7Ω
- Inductance (1kHz) LE 1.35mH
- Winding material Copper
- Former material Glass imide
Magnet
- Force factor Bl 9.8N/A
- Motor constant Bl/√RE 7.52N/√W
- Weight 1.23kg
- Material Ferrite
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass MMS 171g
- Moving mass (without air load) MMD 167g
- Material IMPP - Aramid Fiber
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 18L
- Mechanical resistance RMS 3.32N·s/m
- Surround material Rolled Rubber
- Spider material Aramid Fiber
Dimensions
- Nominal diameter 10″
- 207mm
- Overall diameter 207mm
- Baffle cutout diameter 229mm
- Mounting depth 83mm
- Volume occupied by the driver 0.71L
