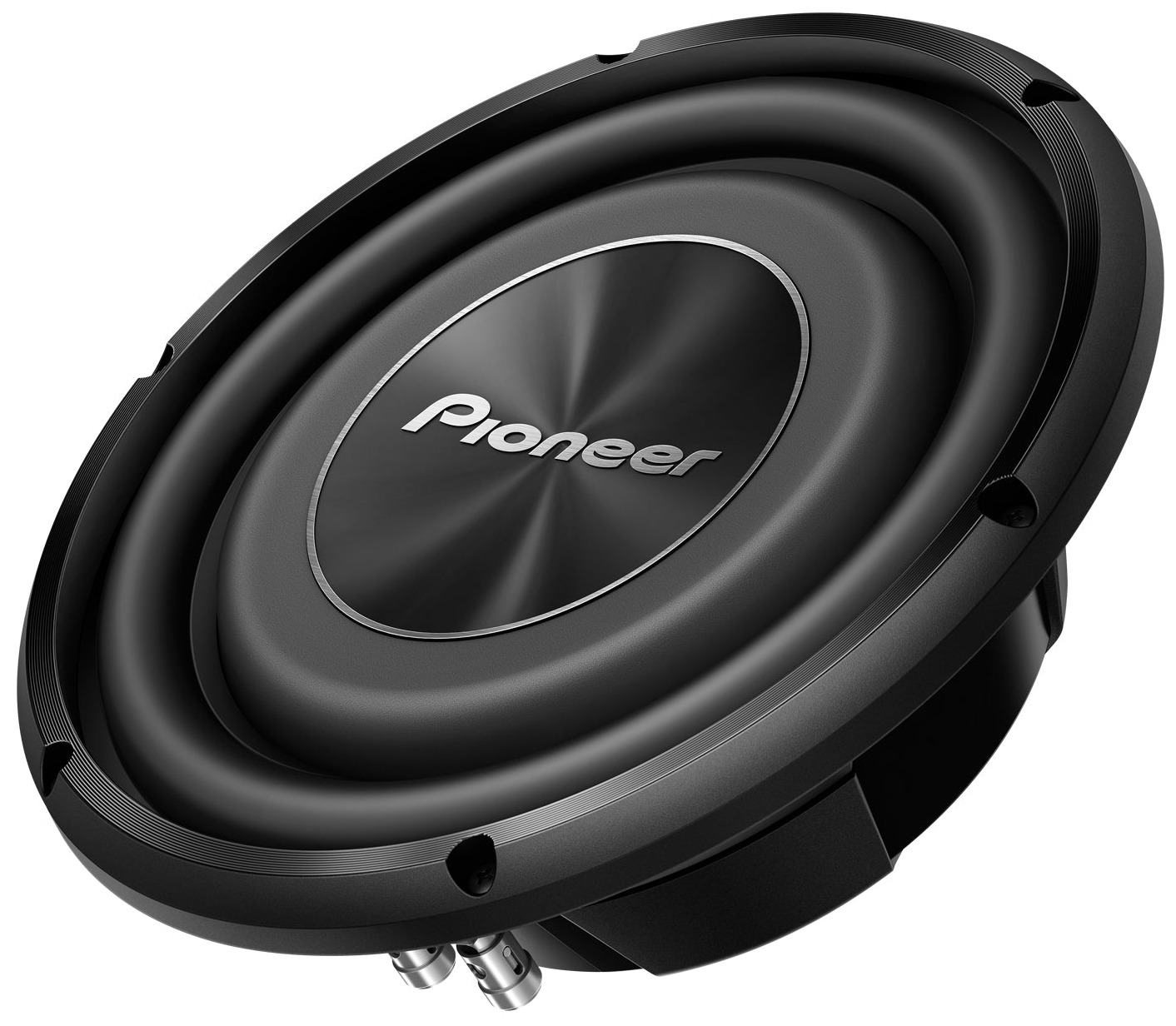

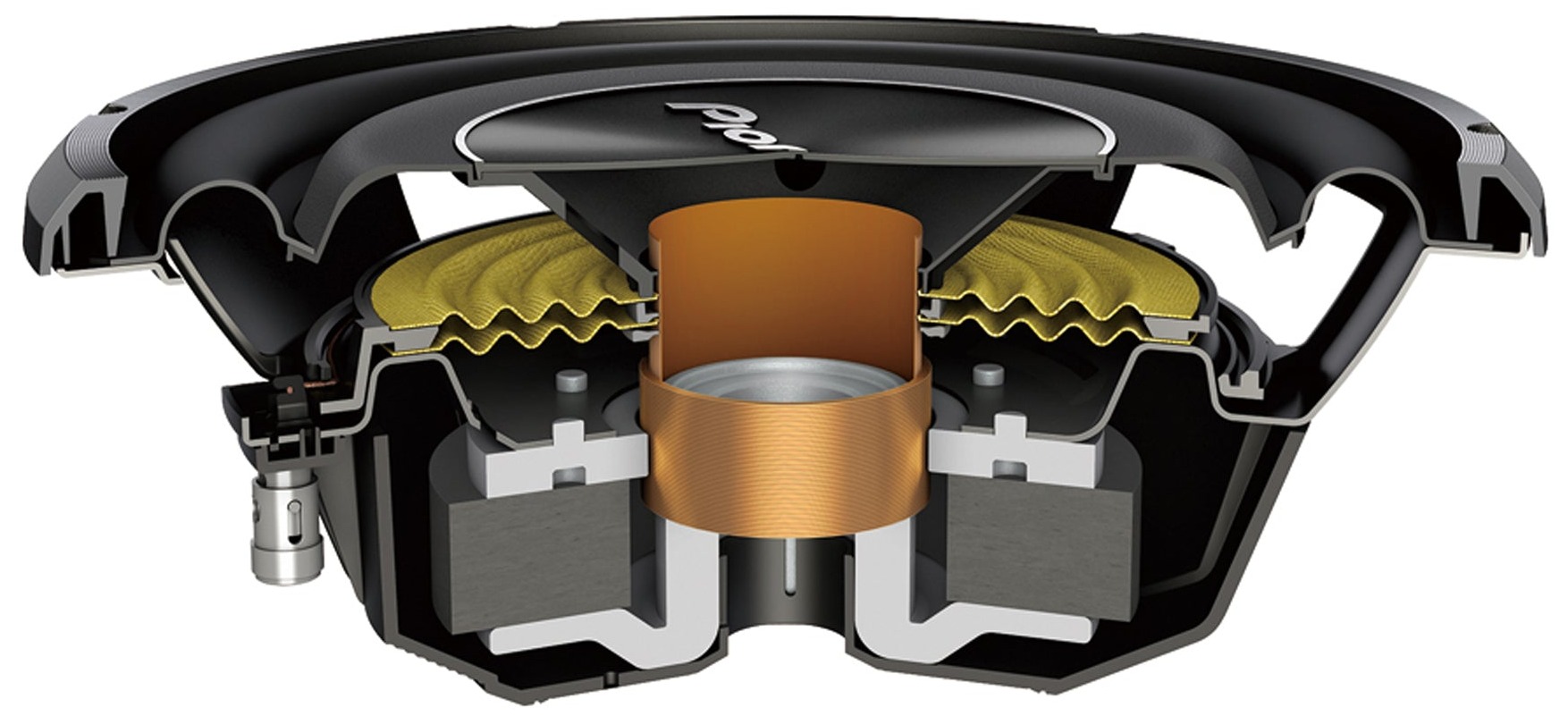

Pioneer TS-A2500LS4
4Ω
Subwoofer
| Nominal diameter | 10″ / 207 mm |
| Resonance | 38 Hz |
| Q factor | 0.83 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 8.3 mm |
| Program Power | 600 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
- Frequency response 20 - 900Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 10.93
- Electrical quality factor QES 0.90
- Total quality factor QTS 0.83
Large signal parameters
- Maximum linear excursion xmax 8.3mm
- Air volume displaced at xmax VD 279cm³
- Power handling P 300W
- Program power Pmax 600W
- Peak power Ppeak 1200W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.7Ω
- Inductance (1kHz) LE 2.52mH
- Winding material Copper
- Former material Kapton
Magnet
- Force factor Bl 12.3N/A
- Motor constant Bl/√RE 6.39N/√W
- Weight 1.23kg
- Material Ferrite
Diaphragm
- Effective diameter 207mm
- Effective area SD 336cm²
- Moving mass MMS 153g
- Moving mass (without air load) MMD 149g
- Material IMPP - Composite
Suspensions
- Stiffness KMS 8.93N/mm
- Compliance CMS 112µm/N
- Equivalent volume to the compliance VAS 17.9L
- Mechanical resistance RMS 3.38N·s/m
- Surround material Rolled Rubber
- Spider material Poly cotton
Dimensions
- Nominal diameter 10″
- 207mm
- Overall diameter 207mm
- Baffle cutout diameter 229mm
- Mounting depth 86mm
- Volume occupied by the driver (estimated) 0.9L
