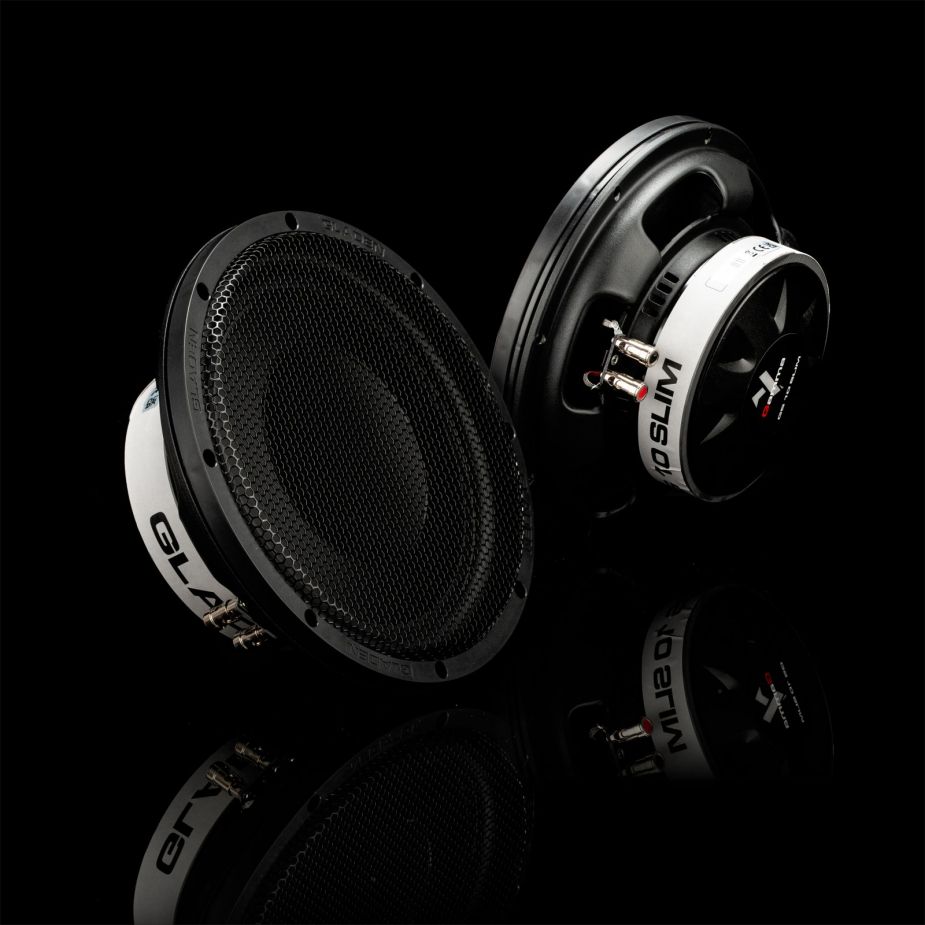

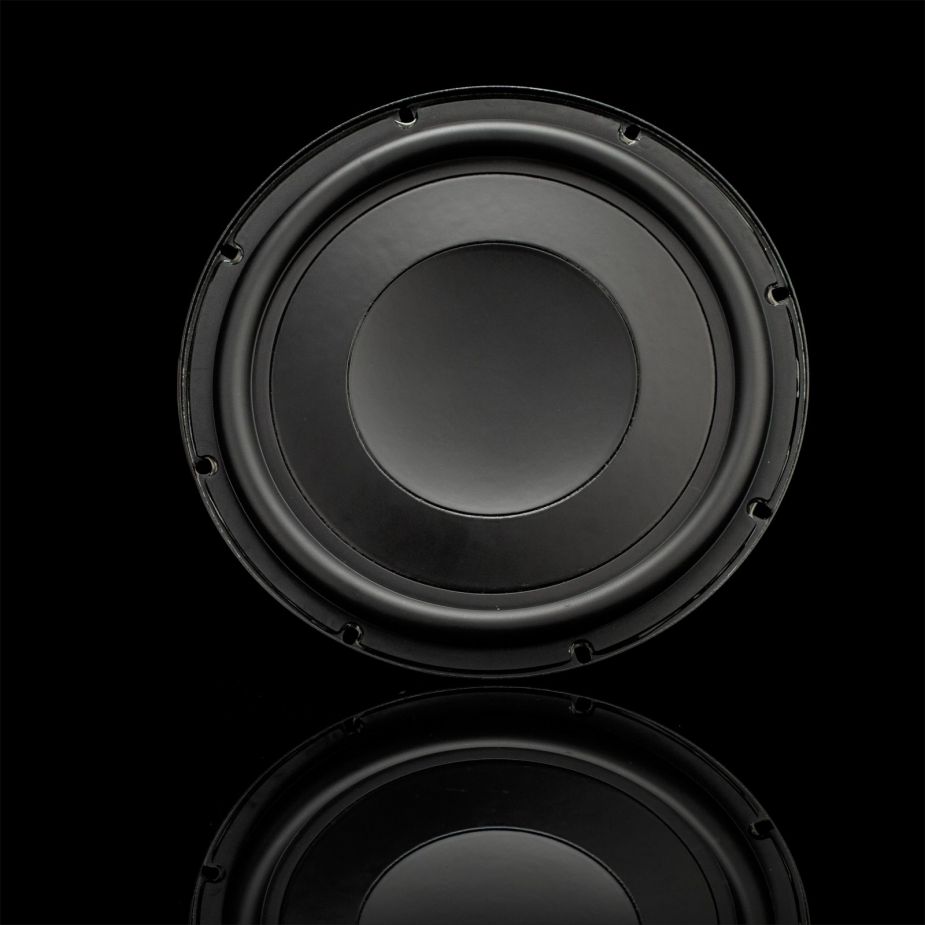

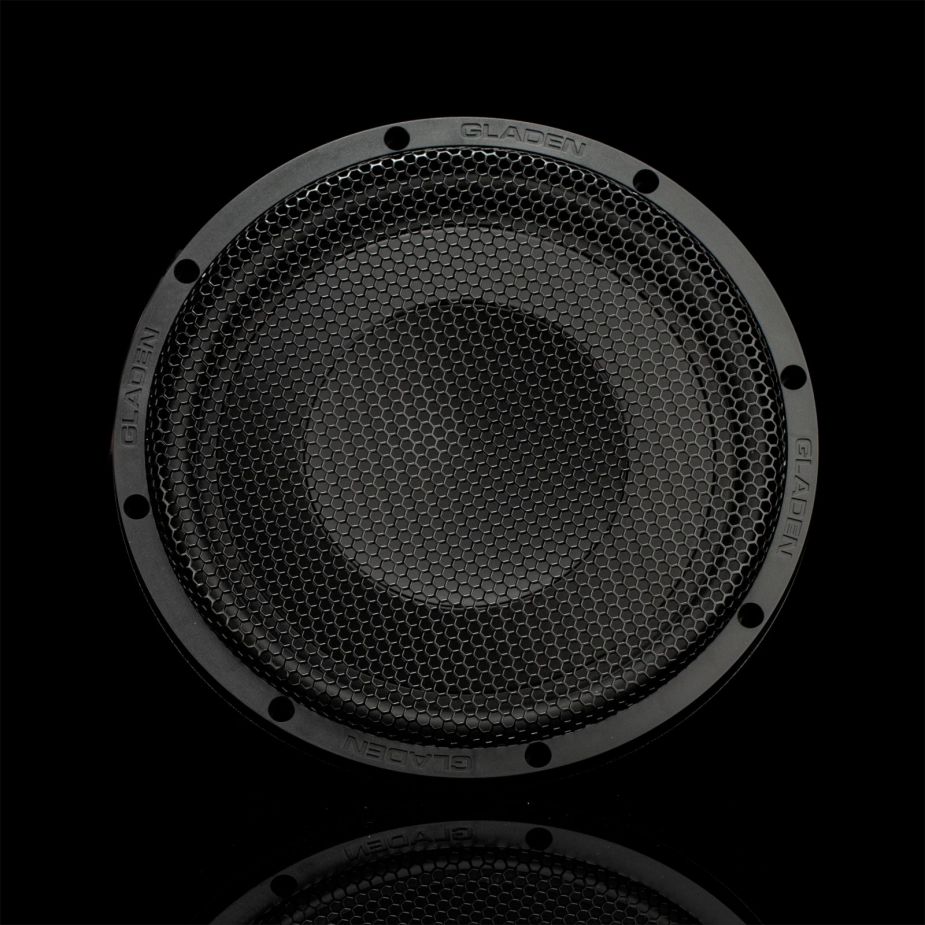

GLADEN GS10-SLIM
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 260 mm |
| Resonance | 35.6 Hz |
| Q factor | 0.51 |
| Sensitivity | 83.5 dB |
| Program power | 450 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35.6Hz
- Mechanical quality factor QMS 8.10
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.51
Large signal parameters
- Power handling P 300W
- Program power Pmax 450W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.4Ω
- Inductance (1kHz, in series, estimated) LE 2.16mH
- VC Diameter 63.5mm
Magnet
- Force factor (in series) Bl 11.5N/A
- Motor constant Bl/√RE 6.24N/√W
- Diameter 155mm
Diaphragm
- Effective diameter 212mm
- Effective area SD 352cm²
- Moving mass (including air load) MMS 156g
- Moving mass MMD 151g
Suspensions
- Stiffness KMS 7.81N/mm
- Compliance CMS 128µm/N
- Equivalent volume to the compliance VAS 17.6L
- Mechanical resistance RMS 4.31N·s/m
Dimensions
- Nominal diameter 10″
- 260mm
- Overall diameter 260mm
- Baffle cutout diameter 236mm
- Mounting depth 89mm
- Volume occupied by the driver (estimated) 1.6L
