Dayton Audio PC PCS115-8
4Ω
8Ω
Woofer
| Nominal diameter | 4″ / 114 mm |
| Resonance | 87 Hz |
| Q factor | 0.84 |
| Sensitivity | 82.2 dB |
| Linear excursion | ± 3.5 mm |
| Program power | 40 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.2dB

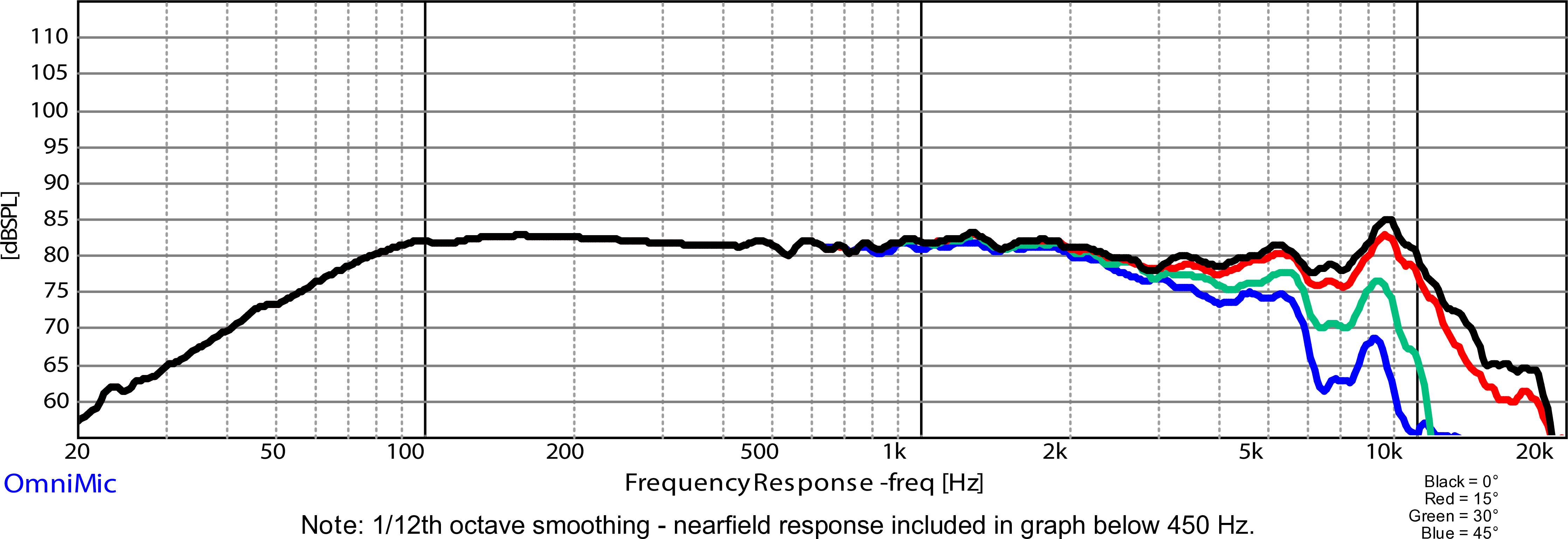

- Frequency response 60 - 6000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 87Hz
- Mechanical quality factor QMS 2.69
- Electrical quality factor QES 1.22
- Total quality factor QTS 0.84
Large signal parameters
- Maximum linear excursion (one way) xmax 3.5mm
- Air volume displaced at xmax VD 18cm³
- Power handling P 20W
- Program power Pmax 40W
Voice Coil

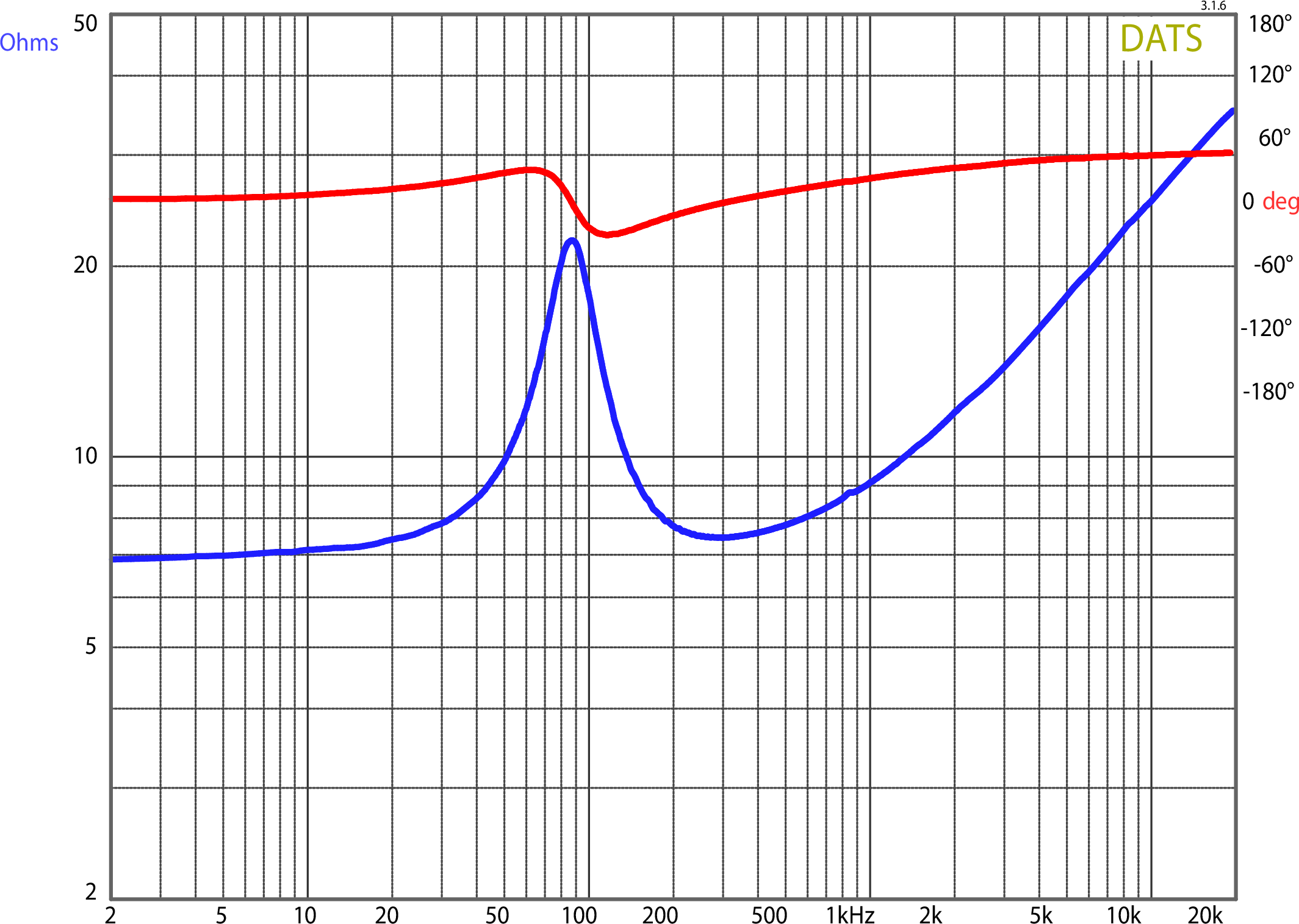

- Nominal impedance Z 8Ω
- DC resistance RE 6.8Ω
- Inductance (1kHz) LE 0.55mH
- VC Diameter 25mm
Magnet
- Force factor Bl 4.6N/A
- Motor constant Bl/√RE 1.76N/√W
- Material Ferrite
Diaphragm
- Effective diameter 81mm
- Effective area SD 51.5cm²
- Moving mass (including air load) MMS 7g
- Moving mass MMD 6.7g
- Material Poly
Suspensions
- Stiffness KMS 2.08N/mm
- Compliance CMS 480µm/N
- Equivalent volume to the compliance VAS 0.063L
- Mechanical resistance RMS 1.42N·s/m
- Surround material Rubber

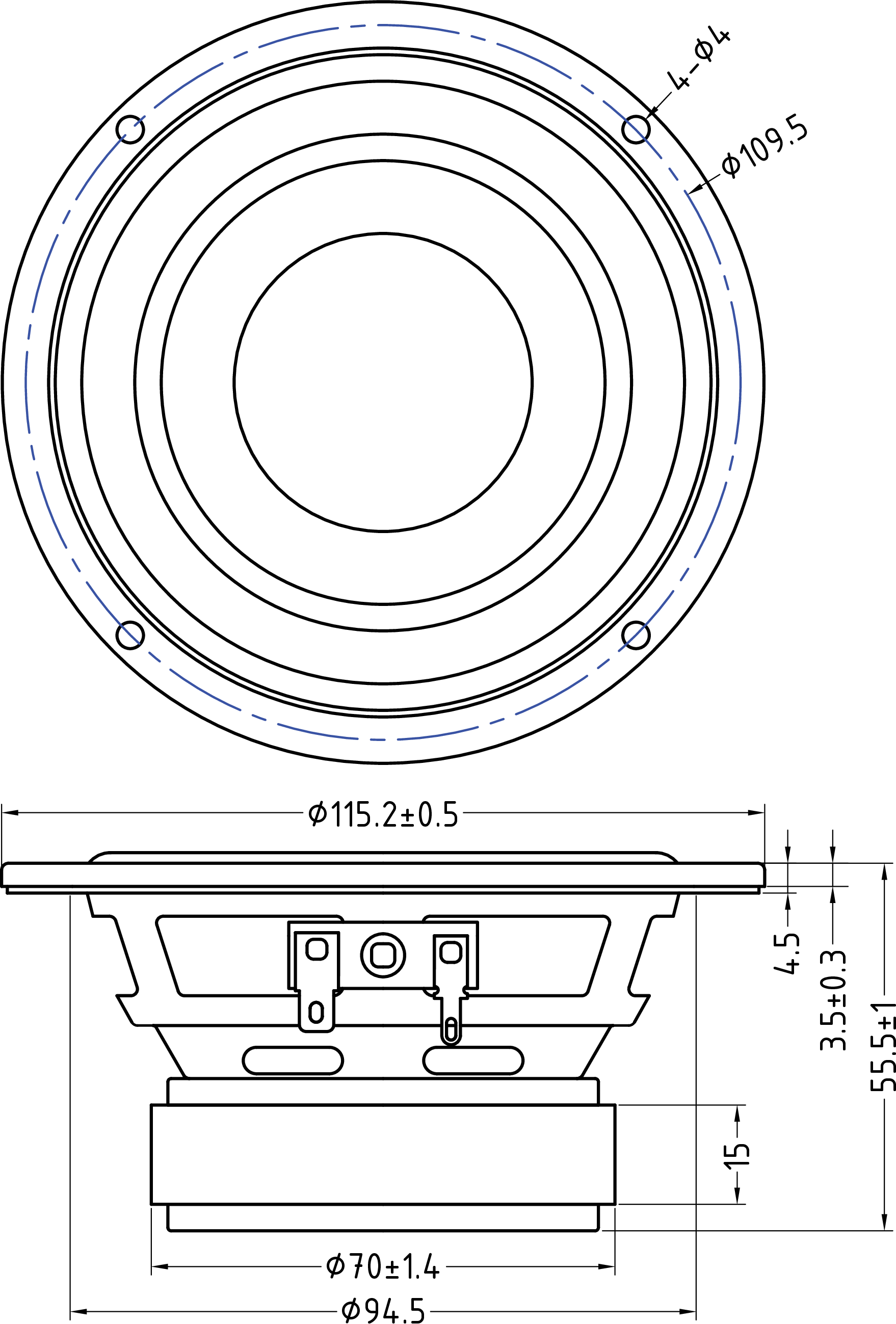

Dimensions
- Nominal diameter 4″
- 114mm
- Overall diameter 114mm
- Baffle cutout diameter 115mm
- Overall depth 57mm
- Volume occupied by the driver (estimated) 0.18L
- Frame material Stamped Steel
.webp)
.webp)
.webp)
