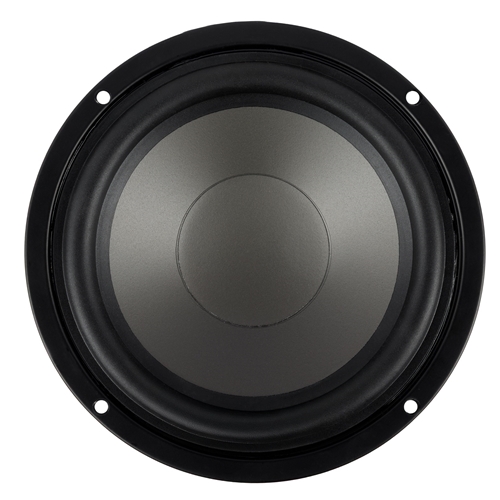

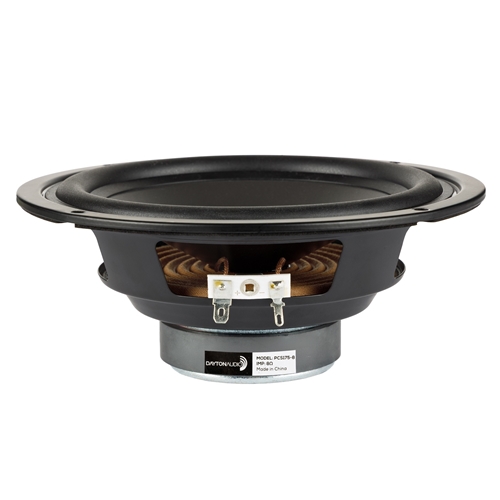

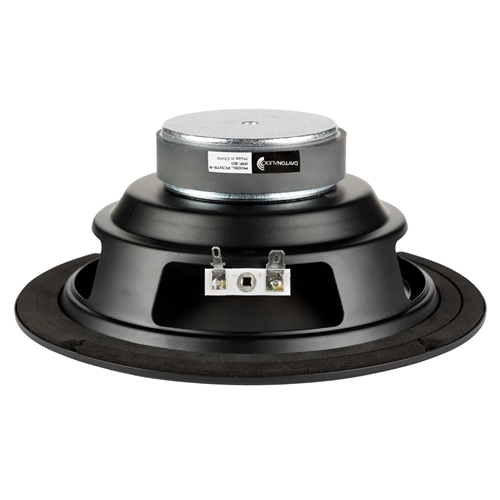

Dayton Audio PC PCS175-8
4Ω
8Ω
Woofer
| Nominal diameter | 6.5″ / 178 mm |
| Resonance | 56 Hz |
| Q factor | 0.83 |
| Sensitivity | 85.9 dB |
| Linear excursion | ± 2.3 mm |
| Program power | 60 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.9dB

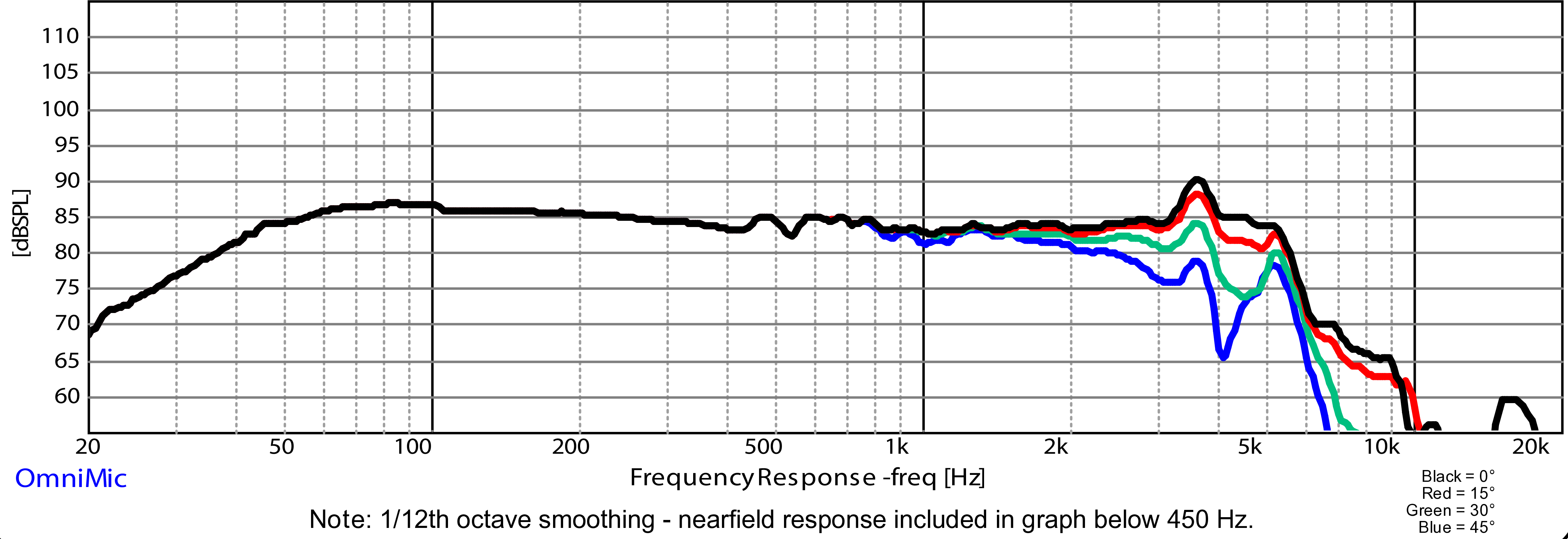

- Frequency response 50 - 5300Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 56Hz
- Mechanical quality factor QMS 3.00
- Electrical quality factor QES 1.15
- Total quality factor QTS 0.83
Large signal parameters
- Maximum linear excursion (one way) xmax 2.3mm
- Air volume displaced at xmax VD 32cm³
- Power handling P 30W
- Program power Pmax 60W
Voice Coil

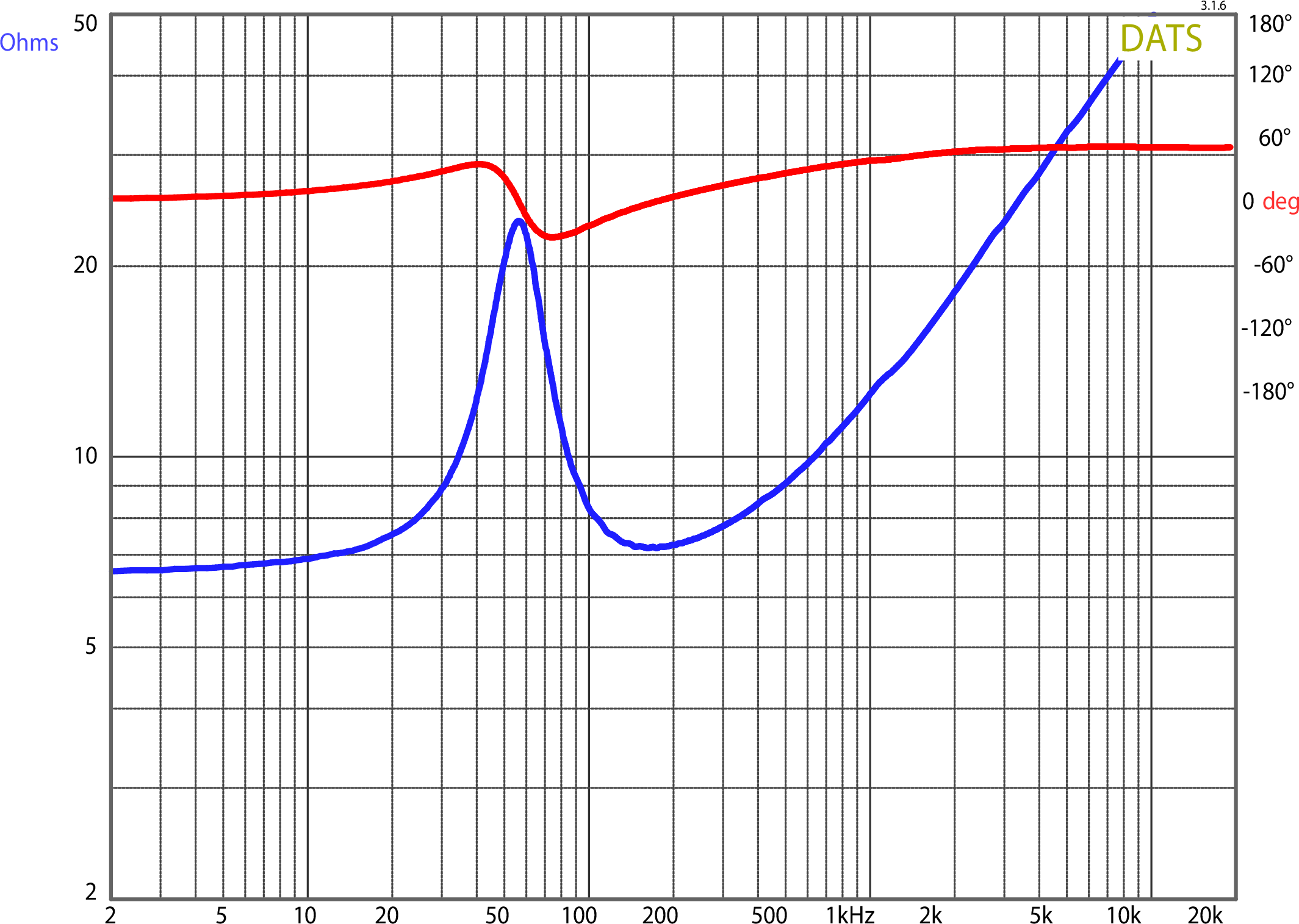

- Nominal impedance Z 8Ω
- DC resistance RE 6.6Ω
- Inductance (1kHz) LE 1.25mH
- VC Diameter 25mm
Magnet
- Force factor Bl 5.6N/A
- Motor constant Bl/√RE 2.18N/√W
- Material Ferrite
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass (including air load) MMS 15.5g
- Moving mass MMD 14.2g
- Material Poly
Suspensions
- Stiffness KMS 1.92N/mm
- Compliance CMS 520µm/N
- Equivalent volume to the compliance VAS 0.523L
- Mechanical resistance RMS 1.82N·s/m
- Surround material Rubber

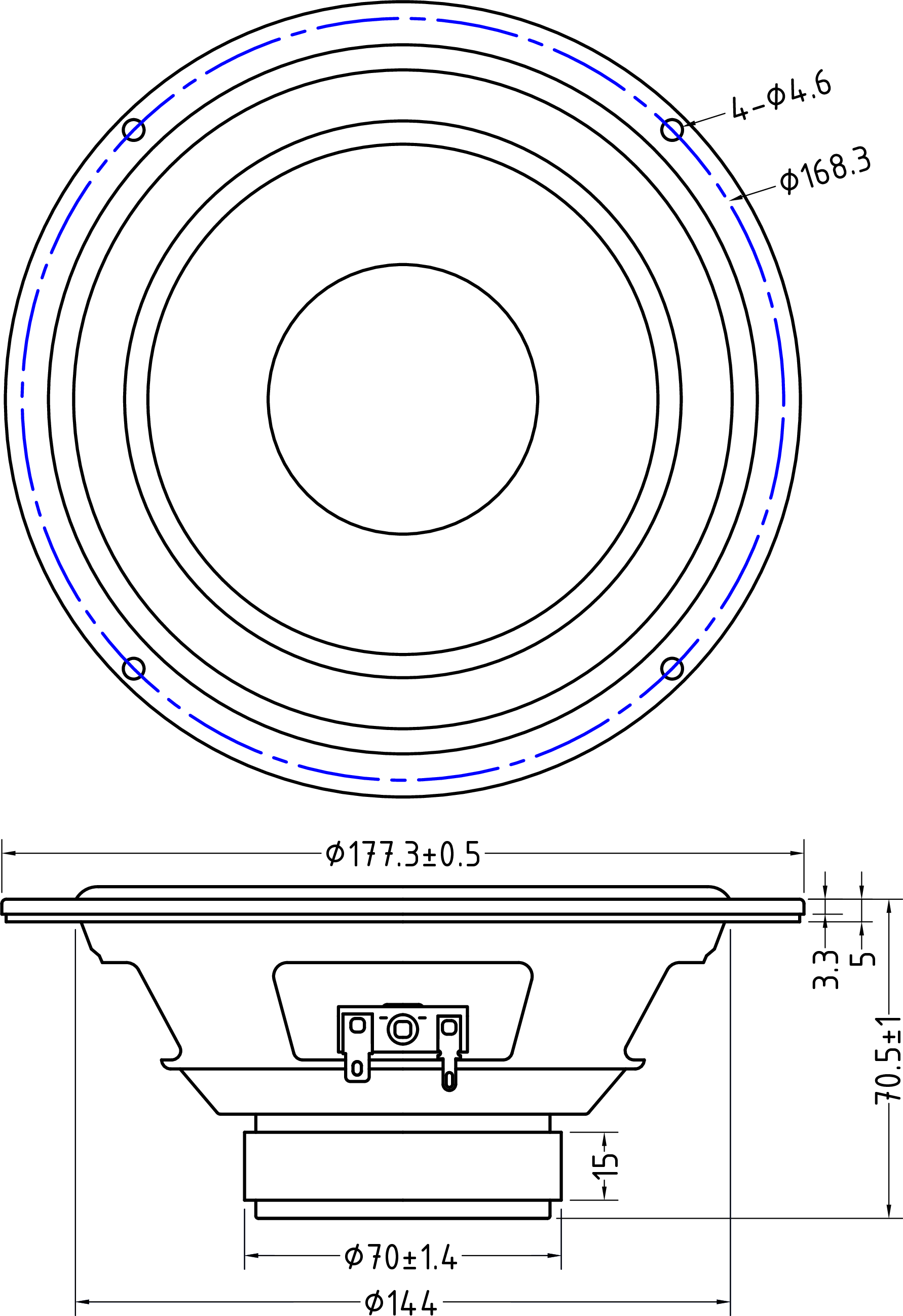

Dimensions
- Nominal diameter 6.5″
- 178mm
- Overall diameter 178mm
- Baffle cutout diameter 146mm
- Overall depth 70mm
- Volume occupied by the driver (estimated) 0.44L
- Frame material Stamped Steel
.webp)
.webp)
.webp)
