Down4Sound DVX10D2

2x2Ω

Subwoofer

Nominal diameter	10″ / 290 mm
Resonance	38.1 Hz
Q factor	0.42
Sensitivity	81.5 dB
Linear excursion	± 31 mm
Program Power	3400 W

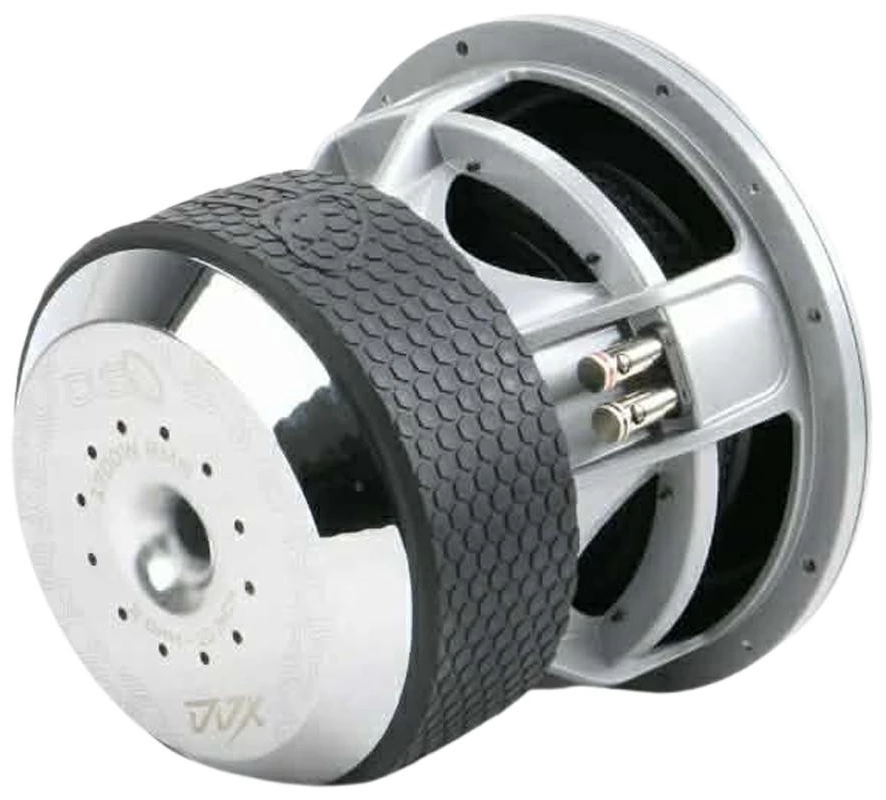

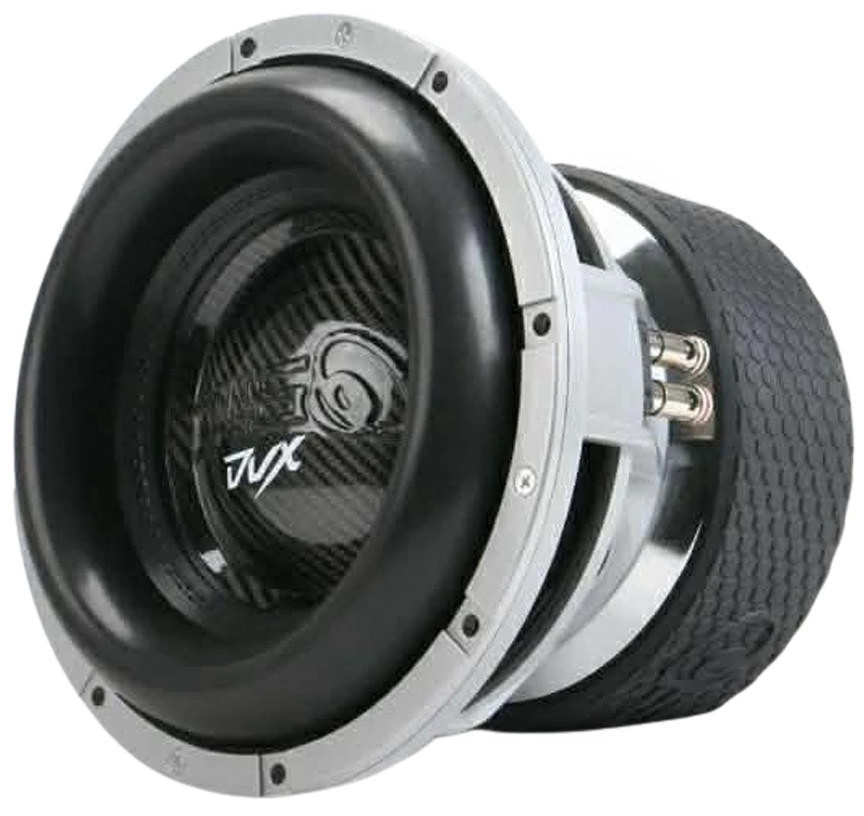

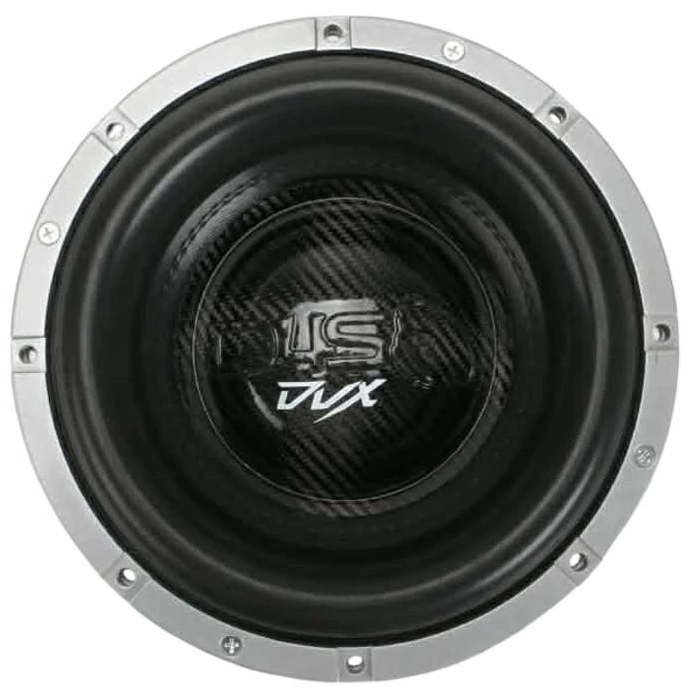

Down4Sound DVX10D2 Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 81.5dB

Thiele & Small parameters

Resonance frequency (free air) fS 38.1Hz
Mechanical quality factor QMS 3.11
Electrical quality factor QES 0.49
Total quality factor QTS 0.42

Large signal parameters

Maximum linear excursion (one way) xmax 31mm
Air volume displaced at xmax VD 1074cm³
Power handling P 1700W
Program power Pmax 3400W

Voice Coil

Nominal impedance Z 2 x 2Ω
DC resistance (in series) RE 3.8Ω
Inductance (1kHz, in series, estimated) LE 4.38mH
VC Diameter 76.2mm
Winding material Copper

Magnet

Force factor (in series) Bl 26.5N/A
Motor constant Bl/√RE 13.6N/√W
Diameter 255mm

Diaphragm

Effective diameter 210mm
Effective area SD 346cm²
Moving mass MMS 380g
Moving mass (without air load) MMD 375g

Suspensions

Stiffness KMS 21.7N/mm
Compliance CMS 46µm/N
Equivalent volume to the compliance VAS 7.34L
Mechanical resistance RMS 29.2N·s/m

Dimensions

Nominal diameter 10″
290mm
Overall diameter 290mm
Baffle cutout diameter 240mm
Mounting depth 225mm
Volume occupied by the driver 5.95L
Net weight 20.41kg
