KICKER SoloX 49L7X101
2x1Ω
2x2ΩSubwoofer
| Nominal size | 10x10″ / 250x250 mm |
| Resonance | 43.1 Hz |
| Q factor | 0.47 |
| Sensitivity | 83.3 dB |
| Linear excursion | ± 31.3 mm |
| Program Power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.3dB
- Frequency response 25 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 43.1Hz
- Mechanical quality factor QMS 8.74
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion xmax 31.3mm
- Air volume displaced at xmax VD 1188cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.9Ω
- Inductance (1kHz, in series) LE 2.7mH
- VC Diameter 75mm
- Winding height HVC 62.5mm
Magnet
- Force factor (in series) Bl 20.6N/A
- Motor constant Bl/√RE 14.9N/√W
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass MMS 410g
- Moving mass (without air load) MMD 405g
Suspensions
- Stiffness KMS 30.1N/mm
- Compliance CMS 33µm/N
- Equivalent volume to the compliance VAS 6.79L
- Mechanical resistance RMS 12.7N·s/m

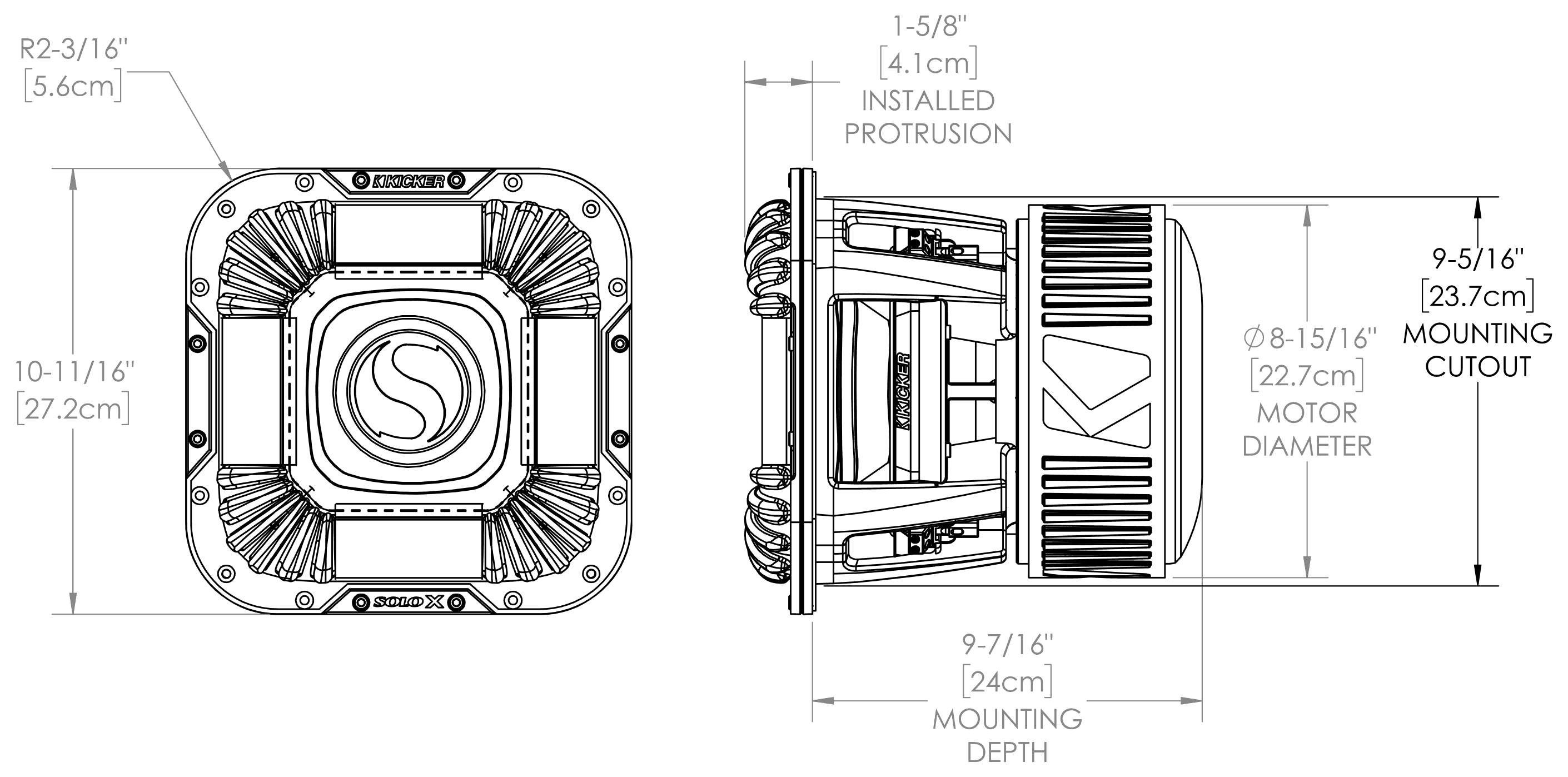

Dimensions
- Nominal size 10 x 10″
- 250 x 250mm
- Mounting baffle cutout 237 x 237mm
- Overall depth 253mm
- Flange thickness 13mm
- Mounting depth 240mm
- Volume occupied by the driver (estimated) 10L
- Net weight 11.5kg
