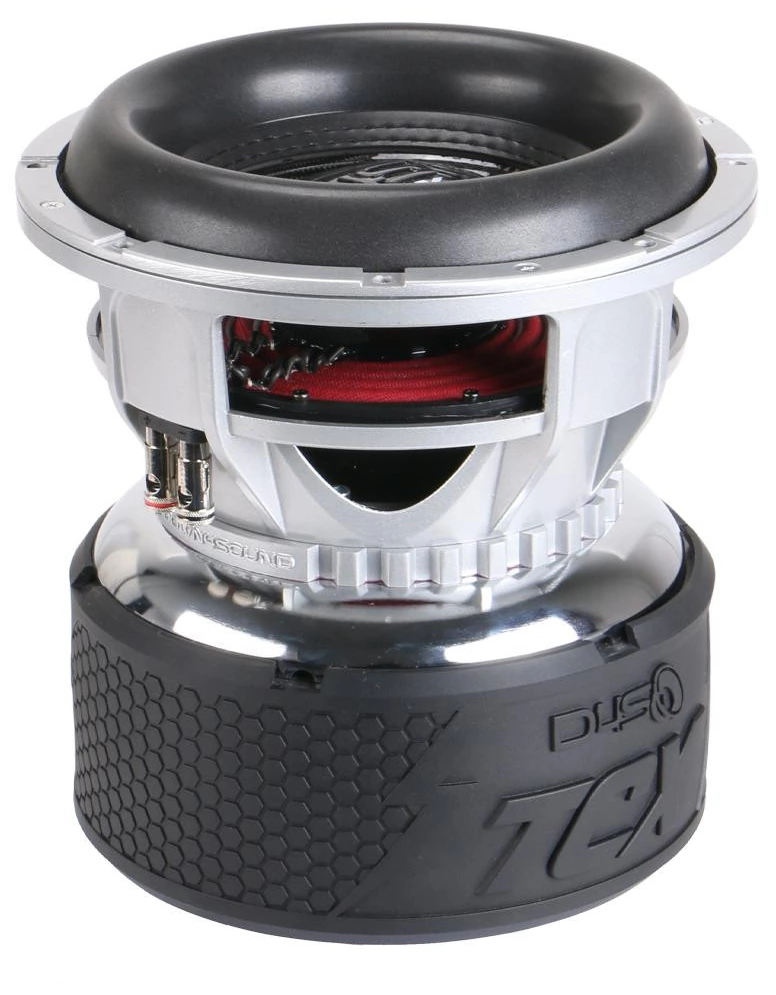

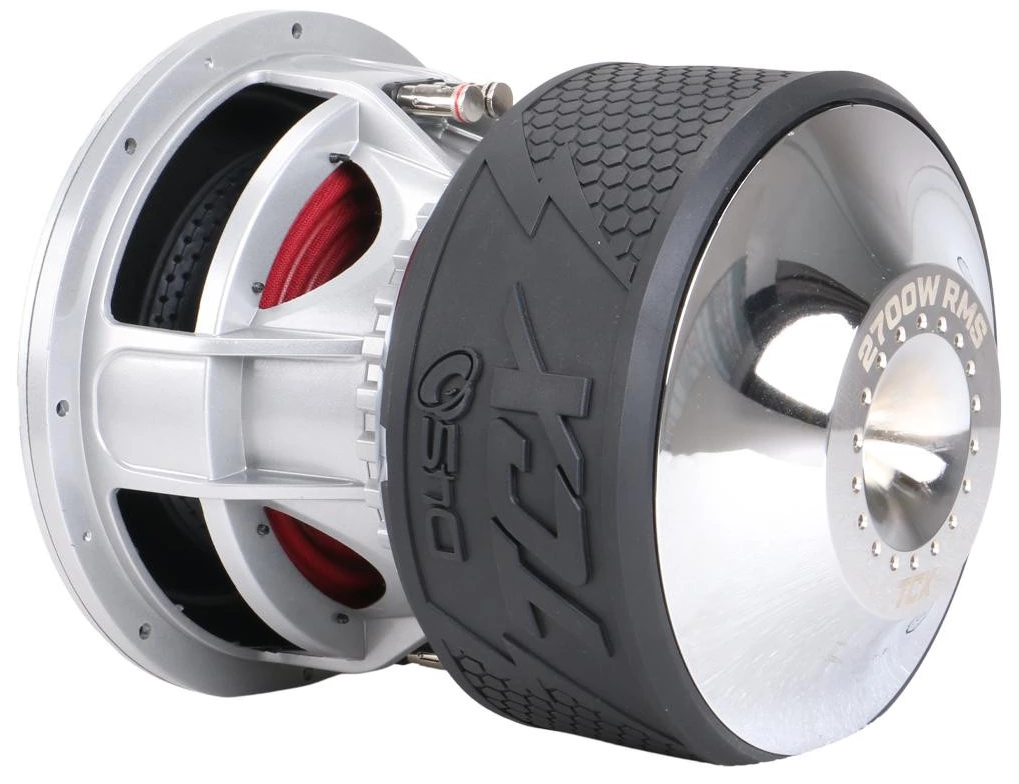

Down4Sound TCX10D1
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 10″ / 275 mm |
| Resonance | 40 Hz |
| Q factor | 0.41 |
| Sensitivity | 91 dB |
| Linear excursion | ± 33 mm |
| Program power | 5400 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91dB
Thiele & Small parameters
- Resonance frequency (free air) fS 40Hz
- Mechanical quality factor QMS 3.59
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.41
Large signal parameters
- Maximum linear excursion (one way) xmax 33mm
- Air volume displaced at xmax VD 3743cm³
- Power handling P 2700W
- Program power Pmax 5400W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series, estimated) LE 2.26mH
- Winding material Aluminum
- Former material Anodized Aluminum
Magnet
- Force factor (in series) Bl 20.5N/A
- Motor constant Bl/√RE 15.3N/√W
- Diameter 240mm
- Material Y35 Ferrite
Diaphragm
- Effective diameter 380mm
- Effective area SD 1134cm²
- Moving mass (including air load) MMS 431g
- Moving mass MMD 425g
- Material Carbon Fiber
Suspensions
- Stiffness KMS 27.2N/mm
- Compliance CMS 36.8µm/N
- Equivalent volume to the compliance VAS 6.89L
- Mechanical resistance RMS 30.2N·s/m
- Surround material High-roll, stitched
- Spider material Triple
Dimensions
- Nominal diameter 10″
- 275mm
- Overall diameter 275mm
- Baffle cutout diameter 261mm
- Mounting depth 292mm
- Volume occupied by the driver (estimated) 1.9L
