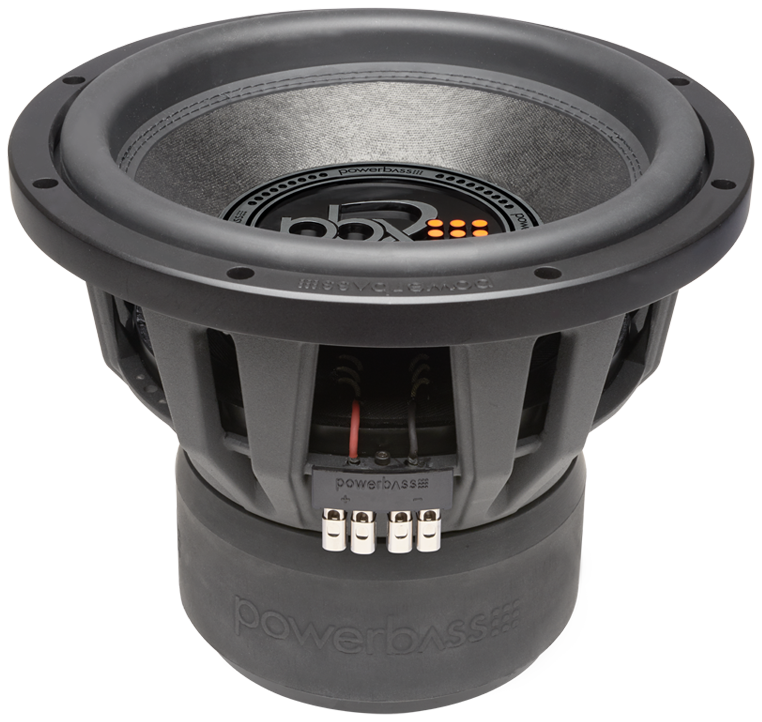

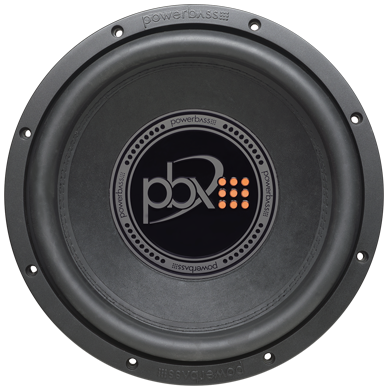

PowerBass 3XL-1510D
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 15″ / 381 mm |
| Resonance | 29.4 Hz |
| Q factor | 0.45 |
| Sensitivity | 91 dB |
| Linear excursion | ± 24 mm |
| Program power | 3000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91dB
- Frequency response 25 - 400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29.4Hz
- Mechanical quality factor QMS 5.08
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 24mm
- Air volume displaced at xmax VD 2115cm³
- Power handling P 1500W
- Program power Pmax 3000W
- Peak power Ppeak 3000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 2.0Ω
- Inductance (1kHz, in series, estimated) LE 2.62mH
- VC Diameter 89mm
- Winding material Copper Clad Aluminium
- Former material BASV
Magnet
- Force factor (in series) Bl 17.9N/A
- Motor constant Bl/√RE 12.7N/√W
- Weight 10.5kg
- Material Y-35 strontium ferrite
Diaphragm
- Effective diameter 260mm
- Effective area SD 881cm²
- Moving mass (including air load) MMS 463g
- Moving mass MMD 271g
- Material DDC Multi-Layered Non-Pressed Paper Cone with Pulp Fibers Reinforcements
Suspensions
- Stiffness KMS 10.2N/mm
- Compliance CMS 73µm/N
- Equivalent volume to the compliance VAS 80.4L
- Mechanical resistance RMS 13.6N·s/m
- Surround material High Roll Foam
Dimensions
- Nominal diameter 15″
- 381mm
- Baffle cutout diameter 280mm
- Mounting depth 282mm
- Volume occupied by the driver (estimated) 4.3L
- Frame material Custom Cast Aluminium
