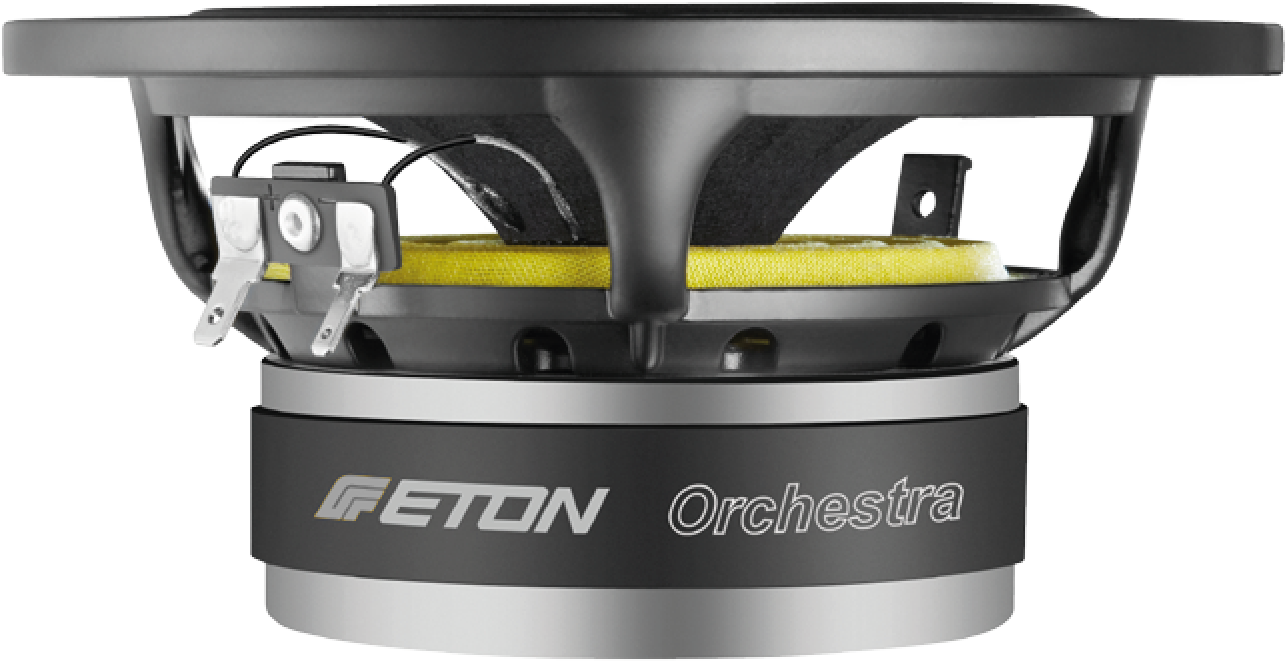

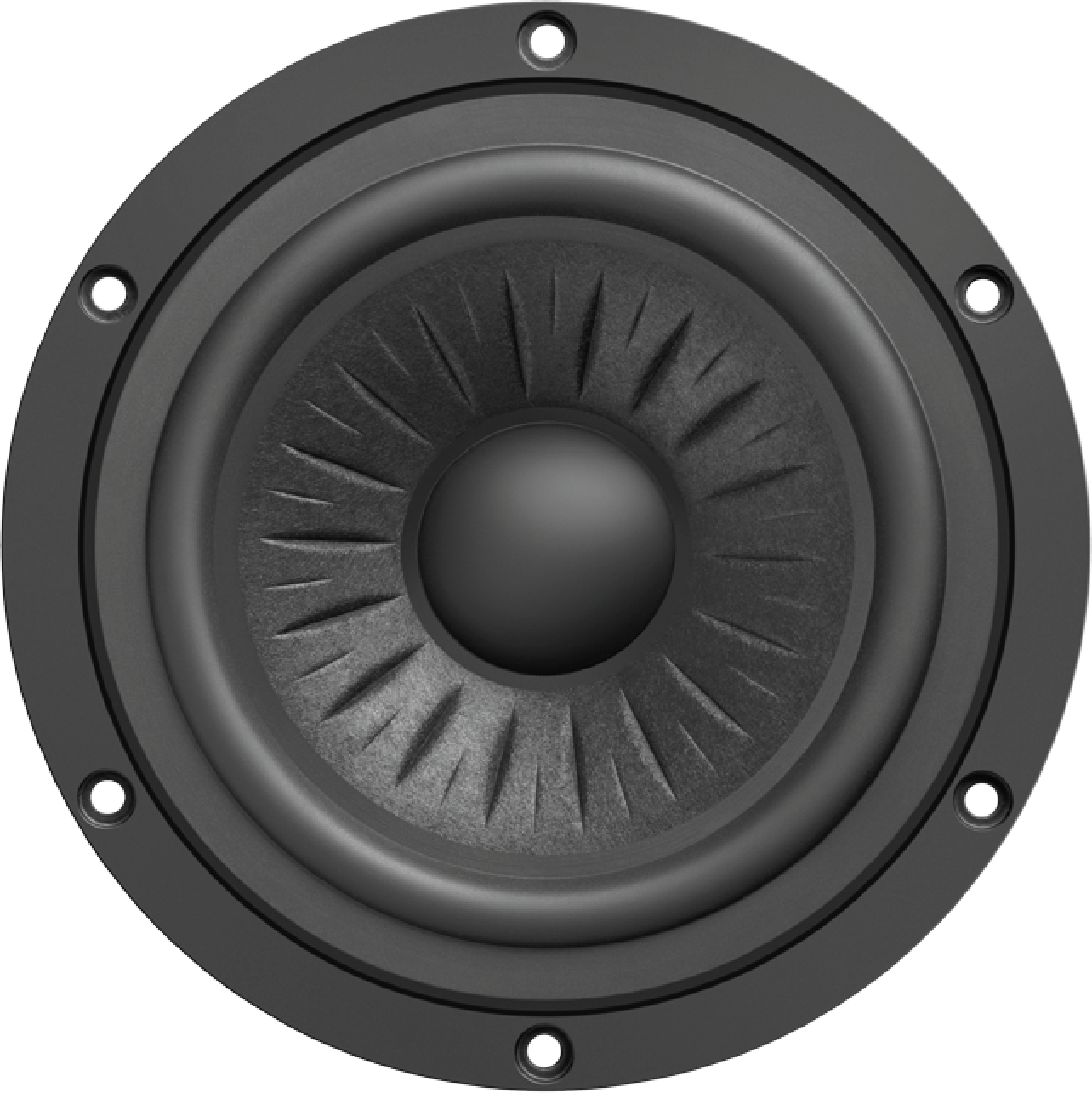

ETON 5-612/C8/25RP

Woofer

5″ / 148 mm
Nominal diameter
53 Hz
Resonance
0.36
Q factor
88 dB
Sensitivity
± 2.5 mm
Linear excursion
100 W
Program Power
ETON 5-612/C8/25RP WooferETON 5-612/C8/25RP Woofer
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
Sensitivity (1W, 1m, infinite baffle)
SPL1W
87.6
dB
Frequency response
53 - 4000
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
53.0
Hz
Mechanical quality factor
QMS
7.89
Electrical quality factor
QES
0.38
Total quality factor
QTS
0.36

Large signal parameters

Maximum linear excursion
xmax
2.5
mm
Air volume displaced at xmax
VD
20
cm³
Power handling
P
50
W
Program power
Pmax
100
W

Voice Coil

Nominal impedance
Z
8
Ω
DC resistance
RE
5.4
Ω
Inductance (1kHz)
LE
0.44
mH
VC Diameter
25
mm

Magnet

Force factor
Bl
5.9
N/A
Motor constant
Bl/√RE
2.54
N/√W
Diameter
90
mm

Diaphragm

Effective diameter
101
mm
Effective area
SD
80
cm²
Moving mass
MMS
7.8
g
Moving mass (without air load)
MMD
7.2
g

Suspensions

Stiffness
KMS
0.92
N/mm
Compliance
CMS
1090
µm/N
Equivalent volume to the compliance
VAS
9.8
L
Mechanical resistance
RMS
0.33
N·s/m

Dimensions

Nominal diameter
5
″
148
mm
Overall diameter
148
mm
Baffle cutout diameter
120
mm
Overall depth
68
mm
Flange thickness
0
mm
Mounting depth
68
mm
Volume occupied by the driver (estimated)
0.37
L
Net weight
1.25
kg
Impedance
SPL

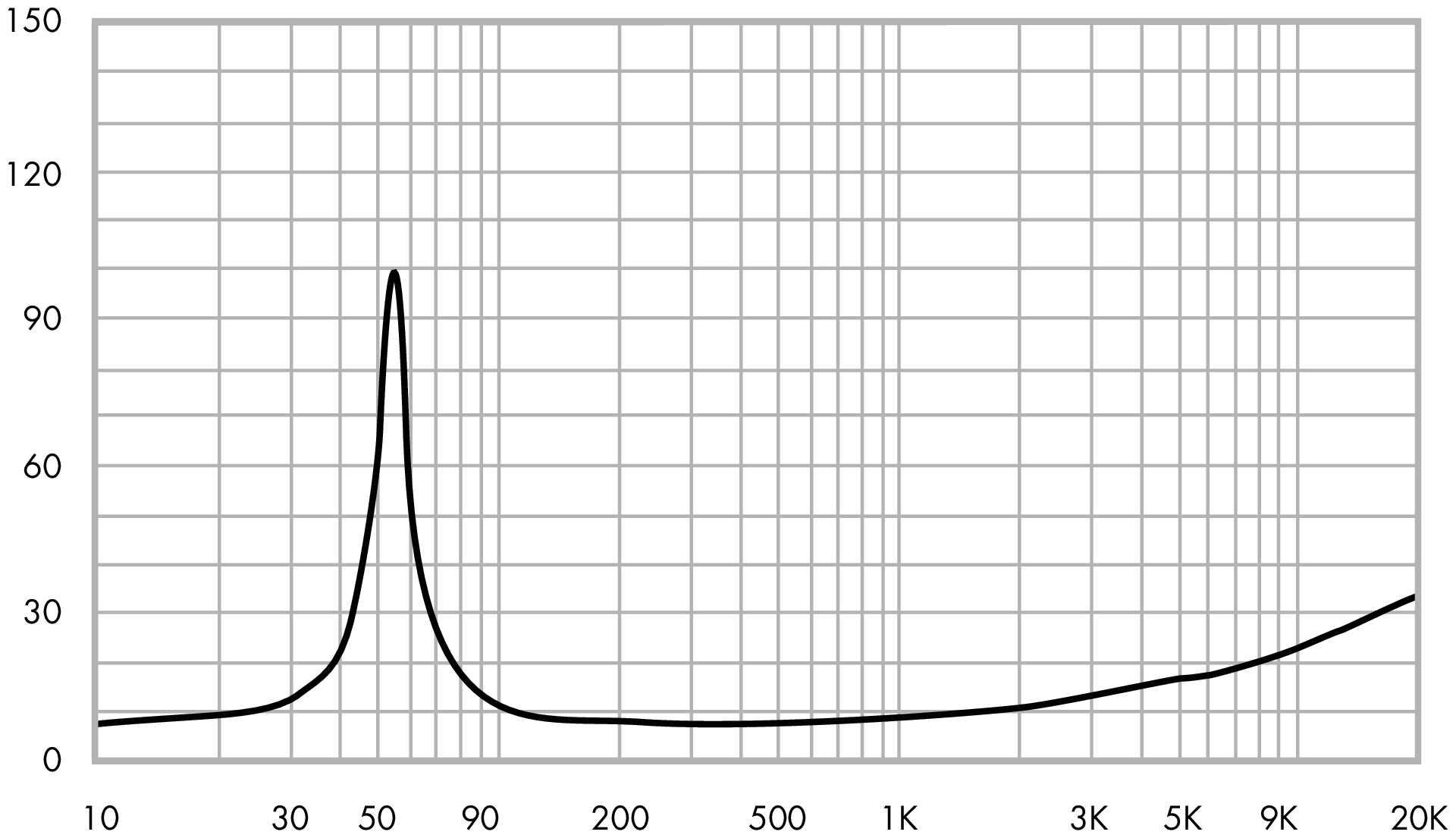

ETON 5-612/C8/25RP Impedance

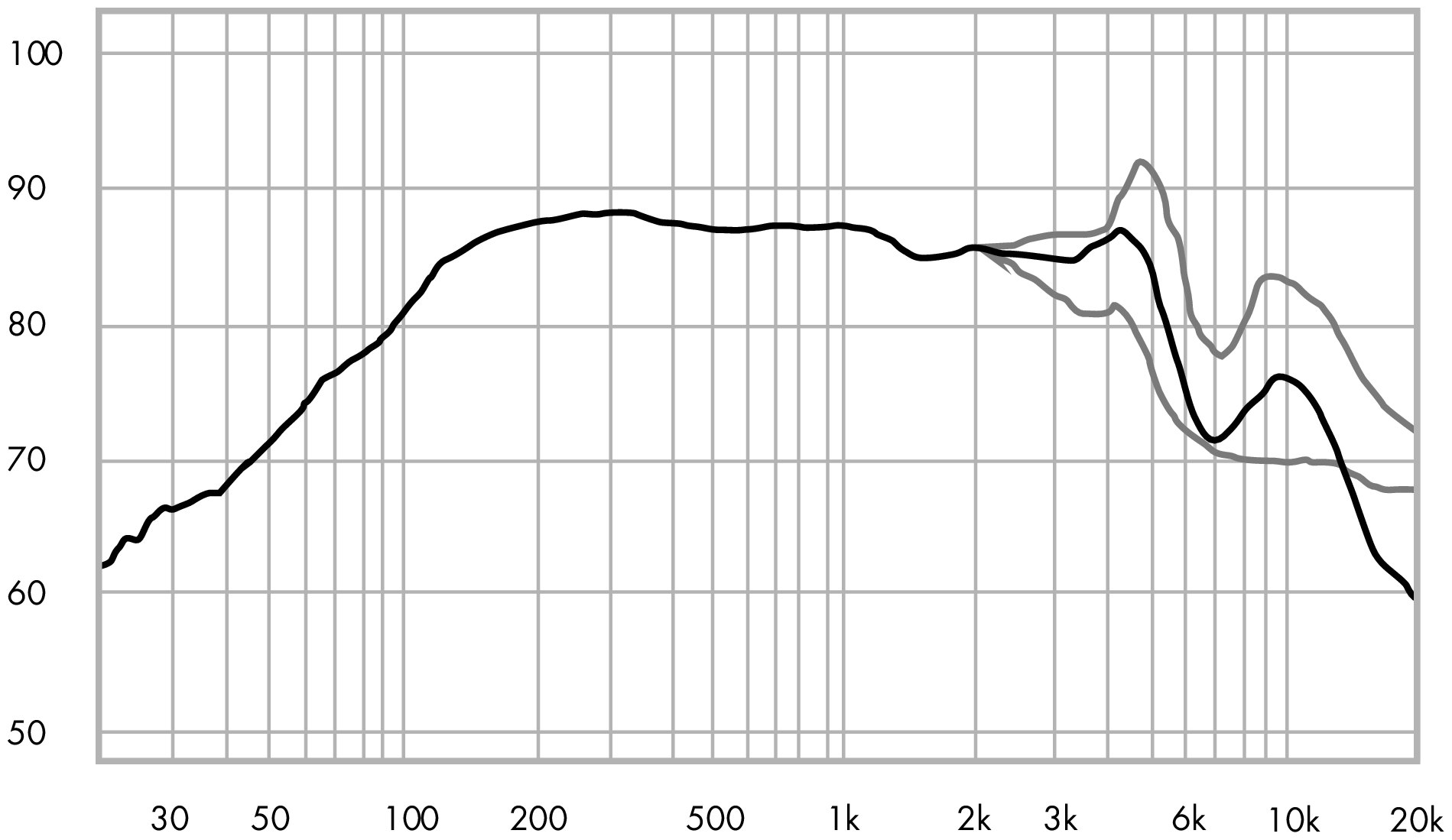

ETON 5-612/C8/25RP SPL
ETON 5-612/C8/25RP Dimensions
DatasheetDatasheet
