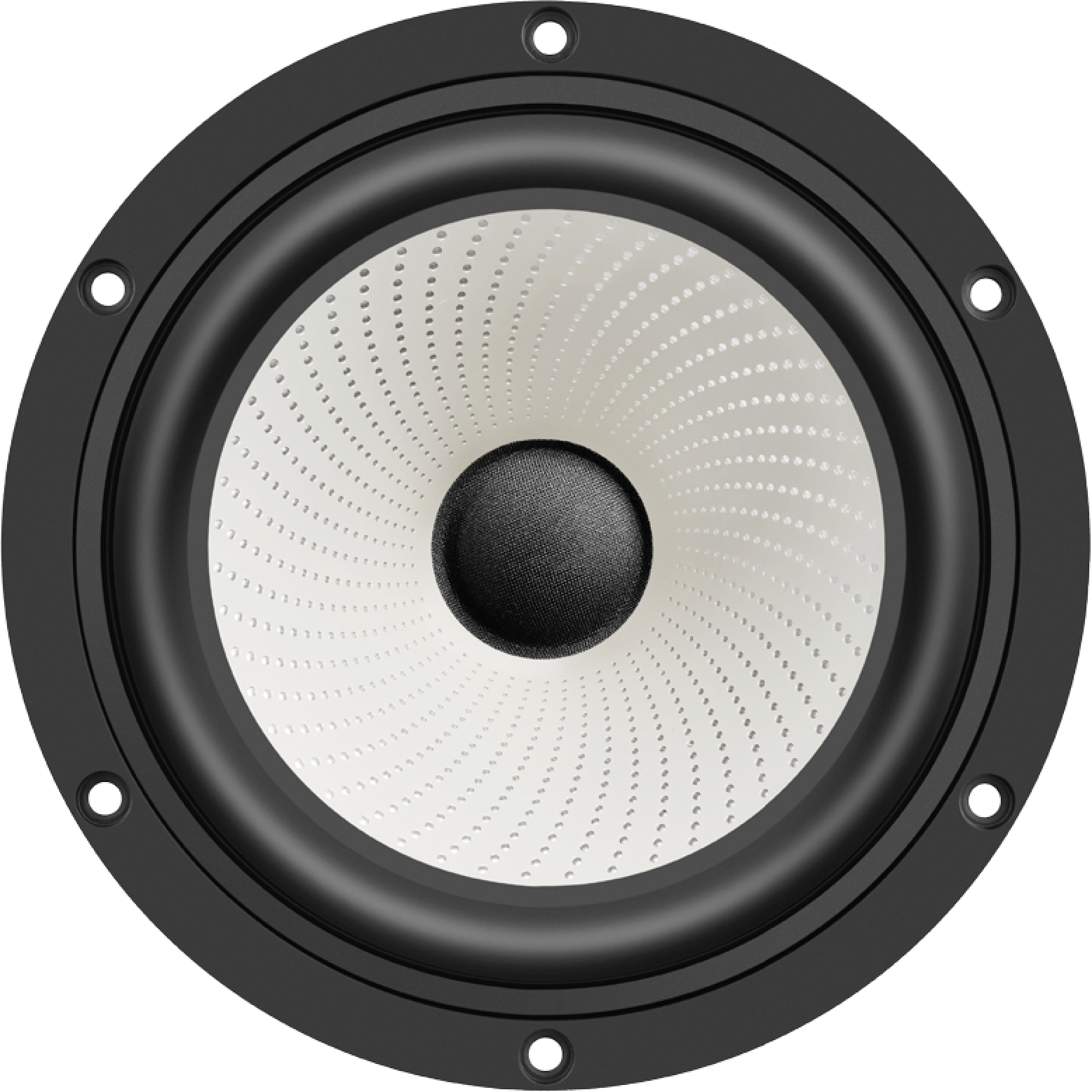

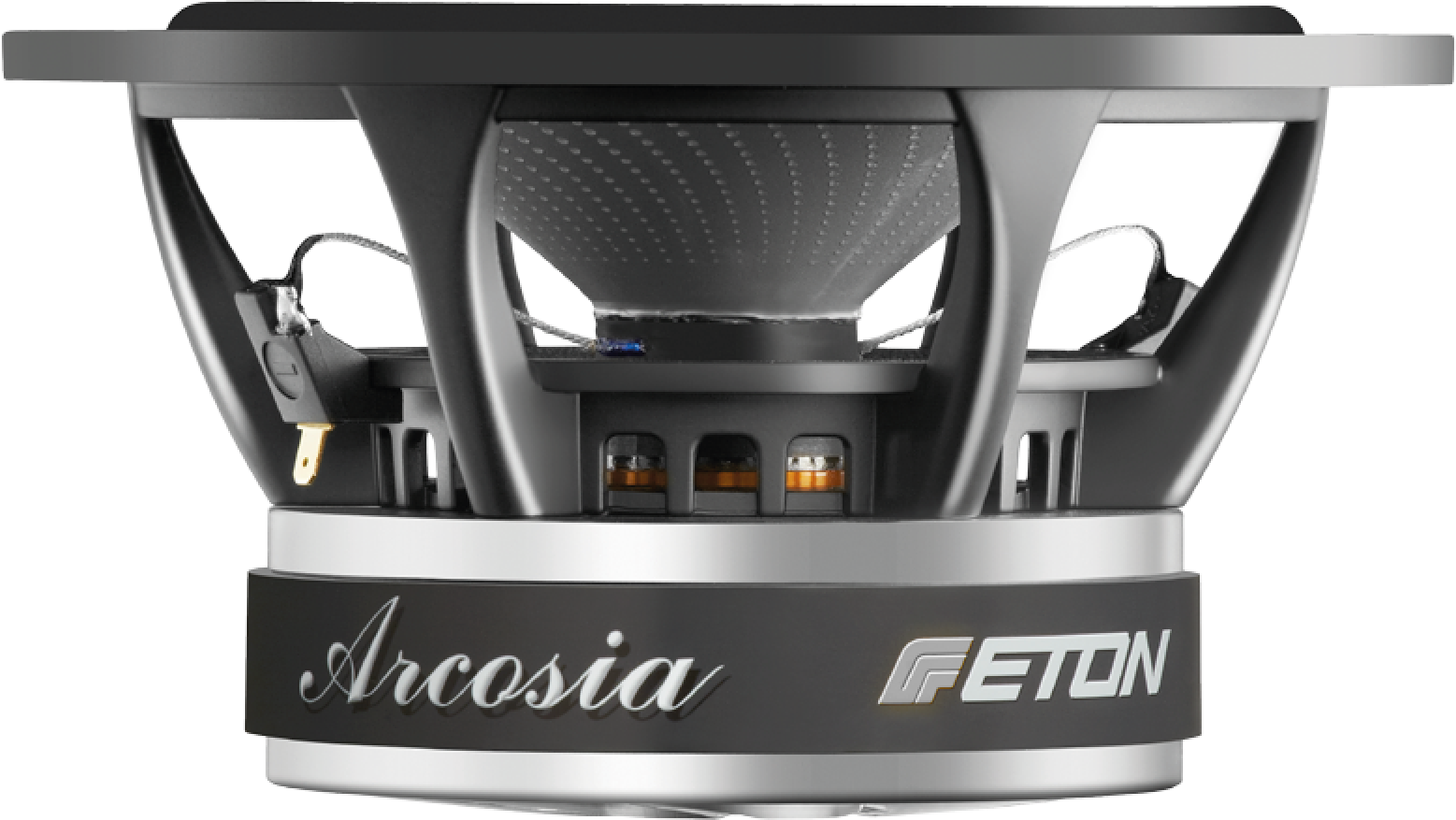

ETON Arcosia 7-208
8Ω
Subwoofer
| Nominal diameter | 8″ / 181 mm |
| Resonance | 31 Hz |
| Q factor | 0.32 |
| Sensitivity | 87.6 dB |
| Linear excursion | ± 9.5 mm |
| Program Power | 200 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.6dB

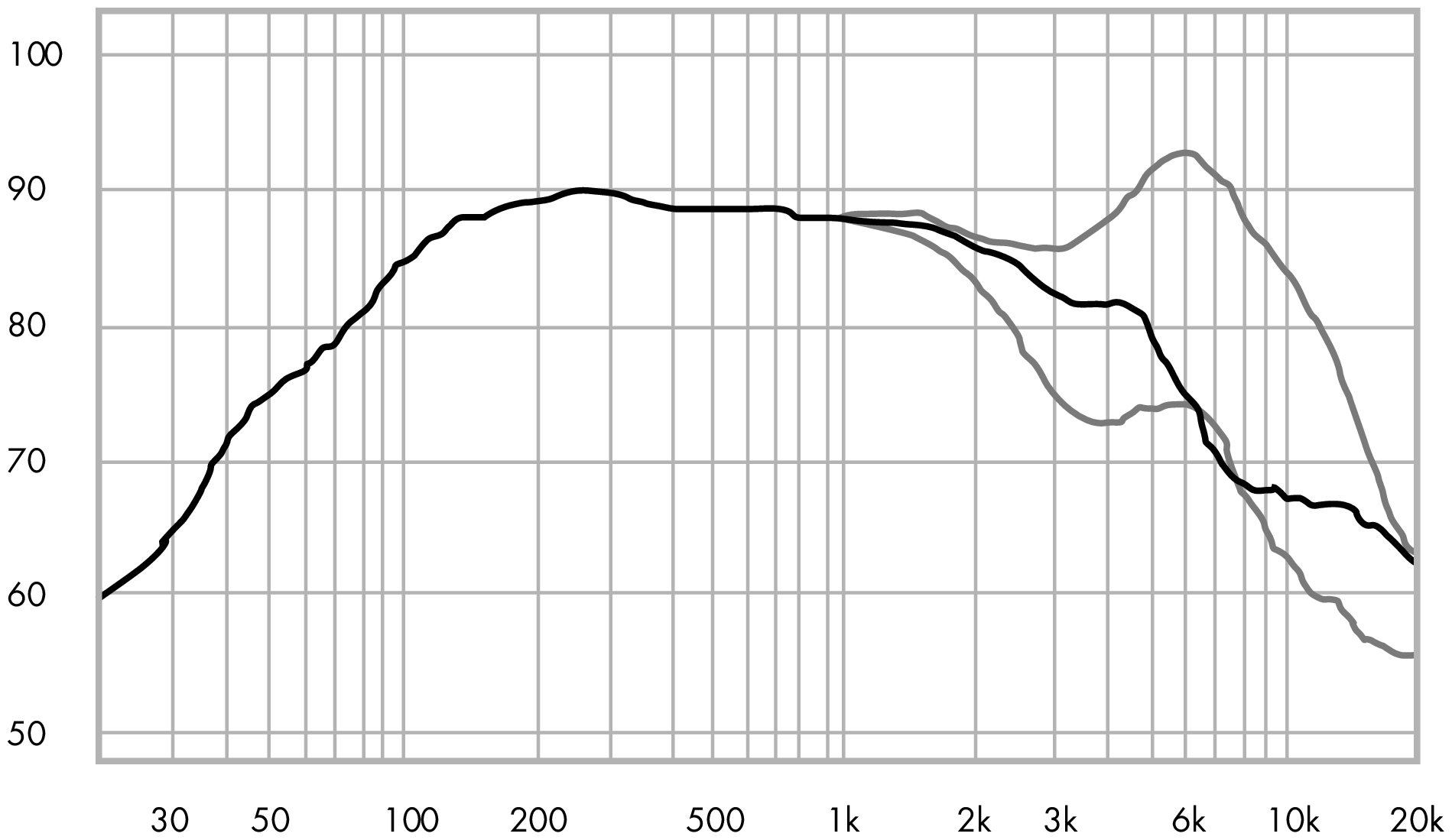

- Frequency response 50 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 5.88
- Electrical quality factor QES 0.34
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion xmax 9.5mm
- Air volume displaced at xmax VD 130cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil

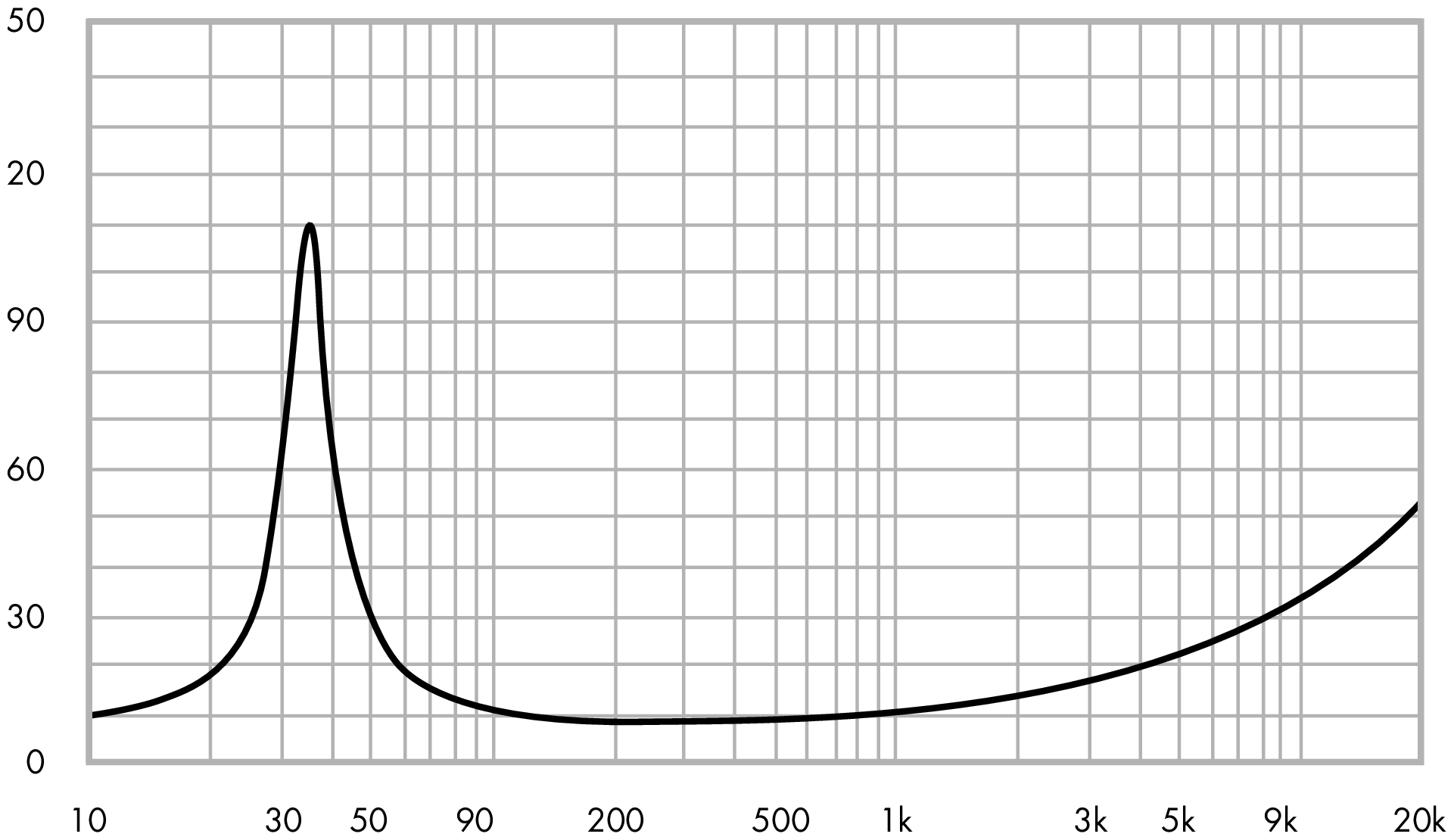

- Nominal impedance Z 8Ω
- DC resistance RE 6.5Ω
- Inductance (1kHz) LE 0.87mH
- VC Diameter 32mm
- Winding material Copper
- Former material Glassfibre
Magnet
- Flux density B 1.26T
- Force factor Bl 8N/A
- Motor constant Bl/√RE 3.14N/√W
- Air gap height HAG 6mm
- Diameter 121mm
- Height 17mm
- Material Ferrite
Diaphragm
- Effective diameter 132mm
- Effective area SD 137cm²
- Moving mass MMS 16.3g
- Moving mass (without air load) MMD 15g
Suspensions
- Stiffness KMS 0.8N/mm
- Compliance CMS 1250µm/N
- Equivalent volume to the compliance VAS 32.9L
- Mechanical resistance RMS 0.67N·s/m
Dimensions
- Nominal diameter 8″
- 181mm
- Overall diameter 181mm
- Baffle cutout diameter 150mm
- Overall depth 97mm
- Flange thickness 6mm
- Mounting depth 91mm
- Volume occupied by the driver (estimated) 0.85L
- Net weight 2.6kg
.png)
.png)
.png)
