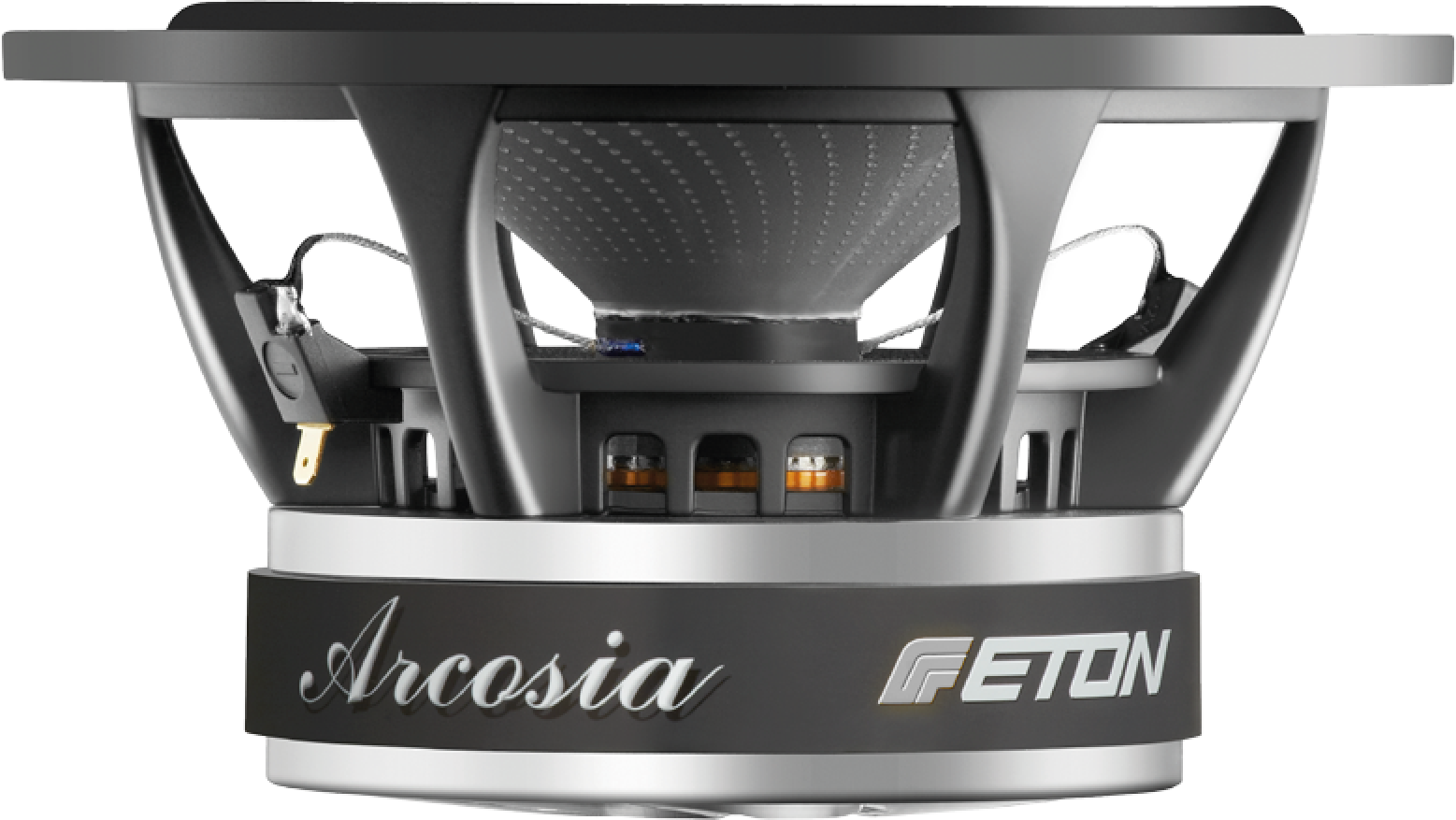

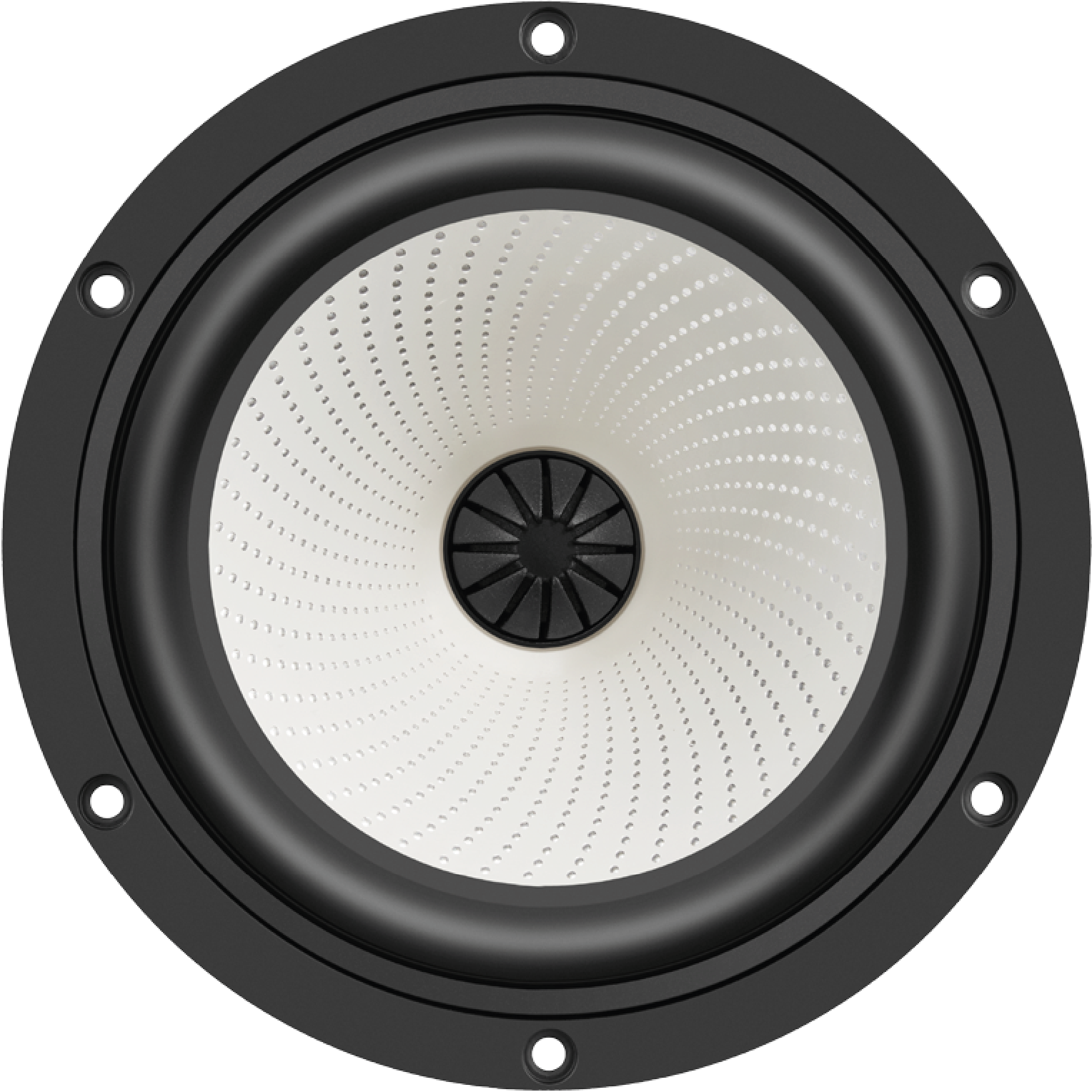

ETON Arcosia 7-308
8Ω
Subwoofer
| Nominal diameter | 8″ / 181 mm |
| Resonance | 32 Hz |
| Q factor | 0.31 |
| Sensitivity | 87.9 dB |
| Linear excursion | ± 9.5 mm |
| Program Power | 200 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.9dB

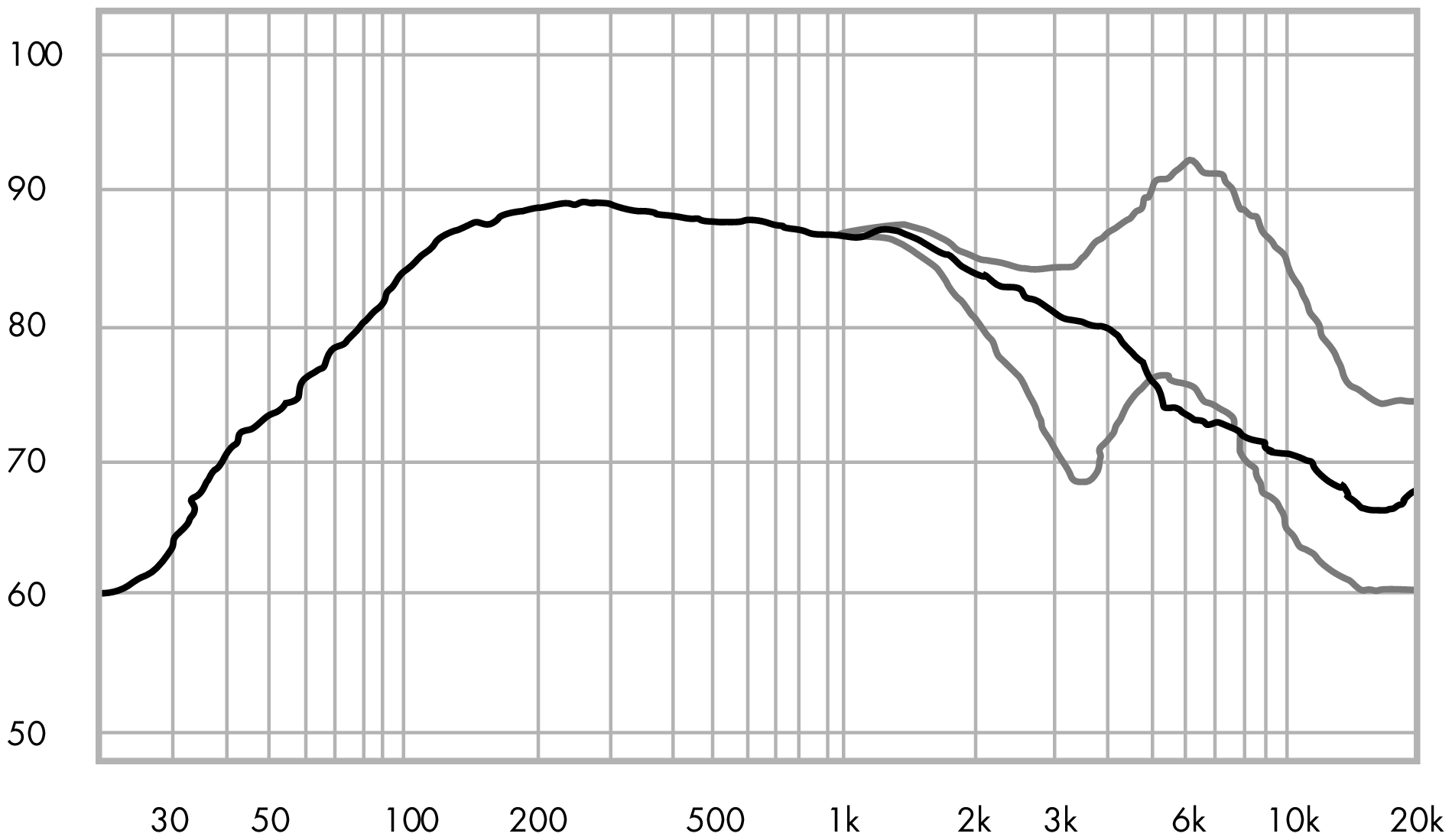

- Frequency response 50 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32Hz
- Mechanical quality factor QMS 6.33
- Electrical quality factor QES 0.32
- Total quality factor QTS 0.31
Large signal parameters
- Maximum linear excursion xmax 9.5mm
- Air volume displaced at xmax VD 130cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil

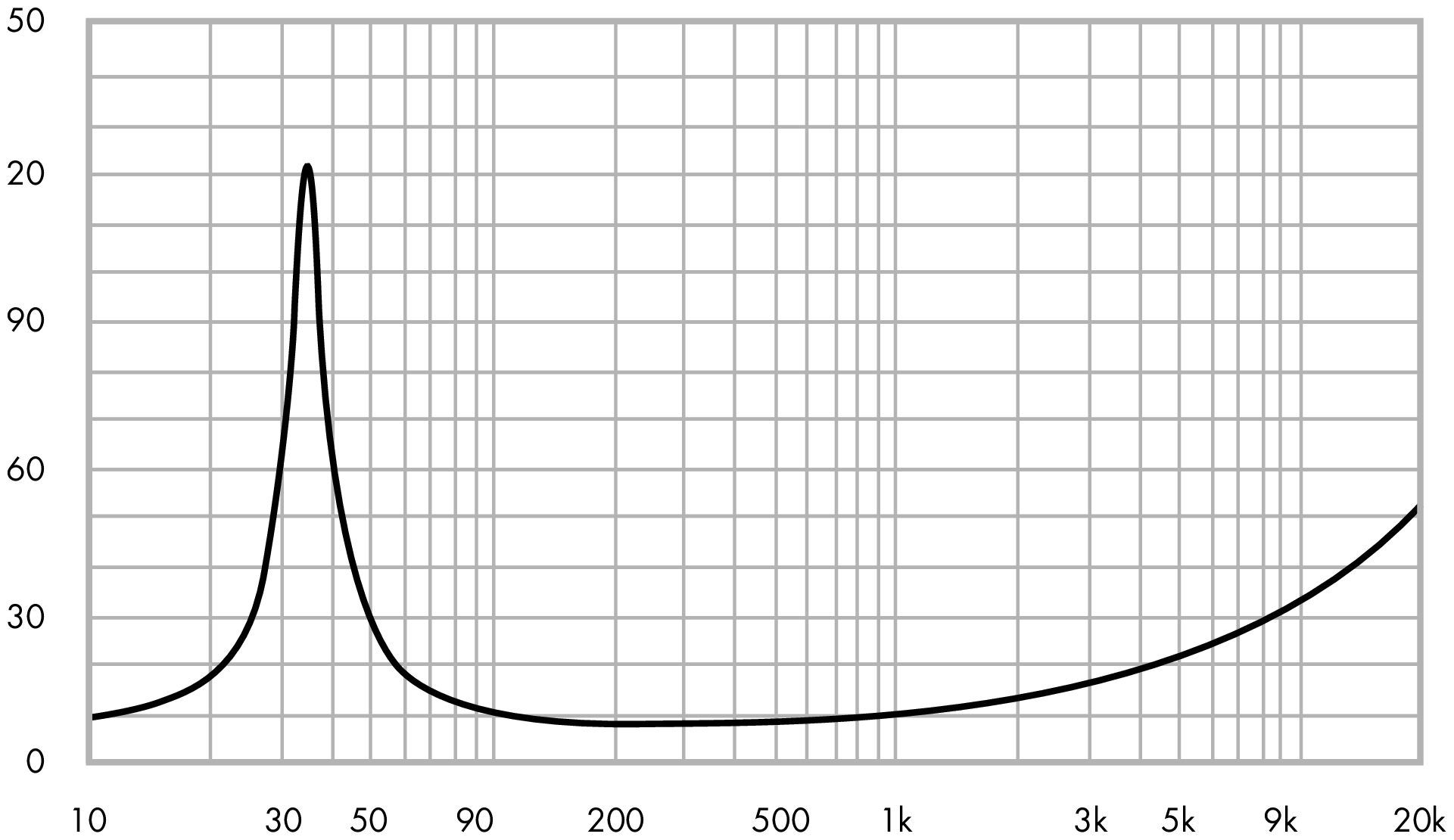

- Nominal impedance Z 8Ω
- DC resistance RE 6.6Ω
- Inductance (1kHz) LE 0.87mH
- VC Diameter 32mm
- Winding material Copper
- Former material Glassfibre
Magnet
- Flux density B 1.26T
- Force factor Bl 8.2N/A
- Motor constant Bl/√RE 3.19N/√W
- Air gap height HAG 6mm
- Diameter 121mm
- Height 20mm
- Material Ferrite
Diaphragm
- Effective diameter 132mm
- Effective area SD 137cm²
- Moving mass MMS 16g
- Moving mass (without air load) MMD 14.7g
Suspensions
- Stiffness KMS 0.813N/mm
- Compliance CMS 1230µm/N
- Equivalent volume to the compliance VAS 32.5L
- Mechanical resistance RMS 0.62N·s/m
Dimensions
- Nominal diameter 8″
- 181mm
- Overall diameter 181mm
- Baffle cutout diameter 150mm
- Overall depth 97mm
- Flange thickness 6mm
- Mounting depth 91mm
- Volume occupied by the driver (estimated) 0.87L
- Net weight 2.67kg
.png)
.png)
.png)
