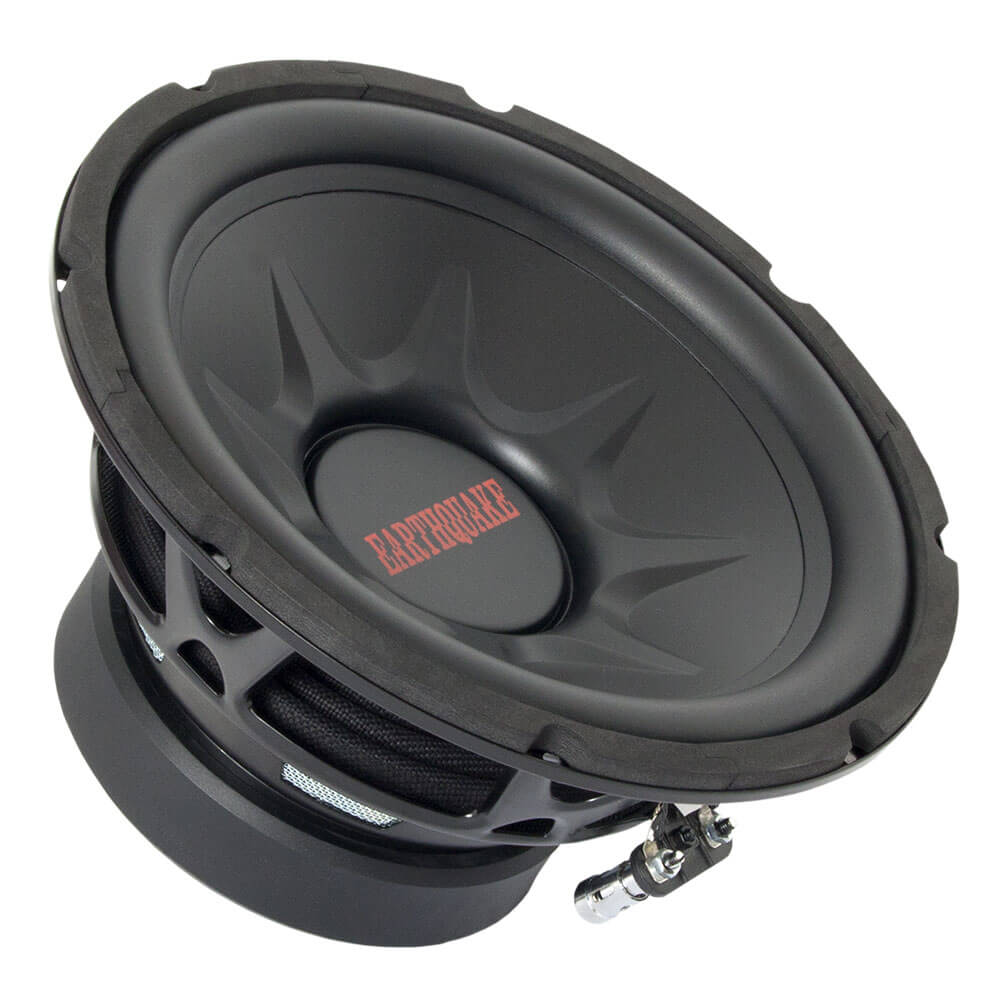

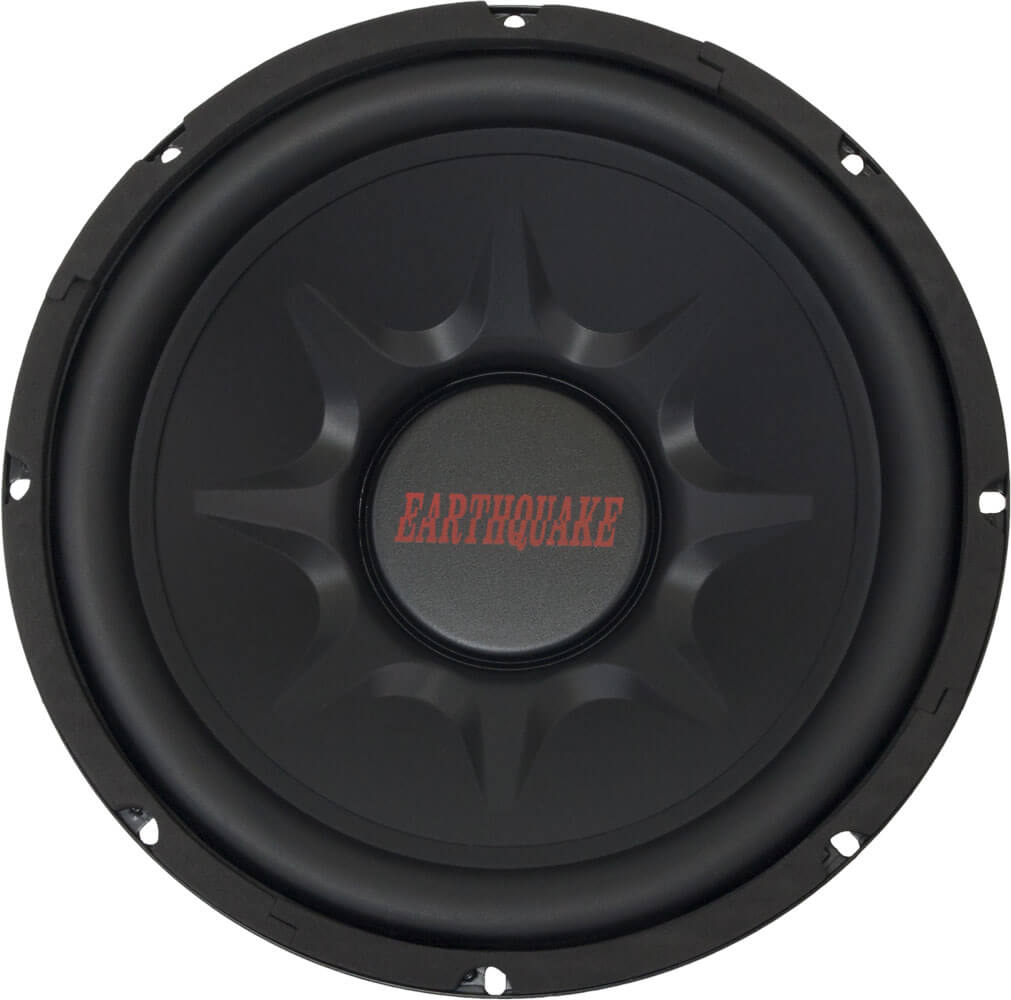

Earthquake TNT-10S
4Ω
Subwoofer
| Nominal diameter | 10″ / 258 mm |
| Resonance | 35 Hz |
| Q factor | 0.62 |
| Sensitivity | 82.9 dB |
| Program power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 6.36
- Electrical quality factor QES 0.69
- Total quality factor QTS 0.62
Large signal parameters
- Power handling P 300W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.6Ω
- Inductance (1kHz, estimated) LE 2.24mH
- VC Diameter 50.8mm
Magnet
- Force factor Bl 13.1N/A
- Motor constant Bl/√RE 6.89N/√W
- Diameter 140mm
Diaphragm
- Effective diameter 197mm
- Effective area SD 304cm²
- Moving mass (including air load) MMS 150g
- Moving mass MMD 146g
Suspensions
- Stiffness KMS 7.25N/mm
- Compliance CMS 138µm/N
- Equivalent volume to the compliance VAS 18.1L
- Mechanical resistance RMS 5.18N·s/m
Dimensions
- Nominal diameter 10″
- 258mm
- Overall diameter 258mm
- Baffle cutout diameter 247mm
- Overall depth 142mm
- Volume occupied by the driver (estimated) 1.9L
