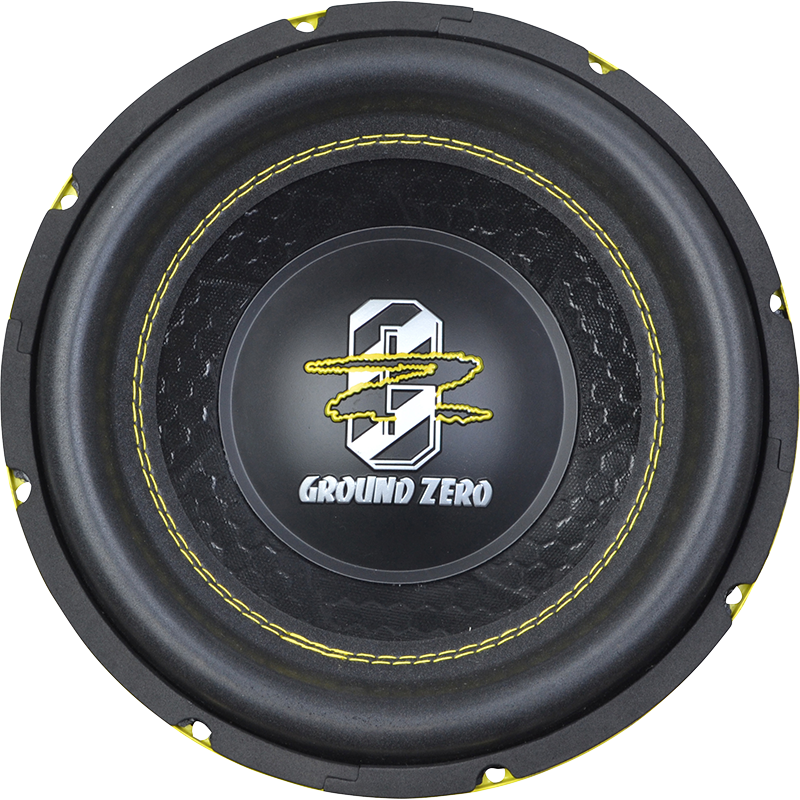

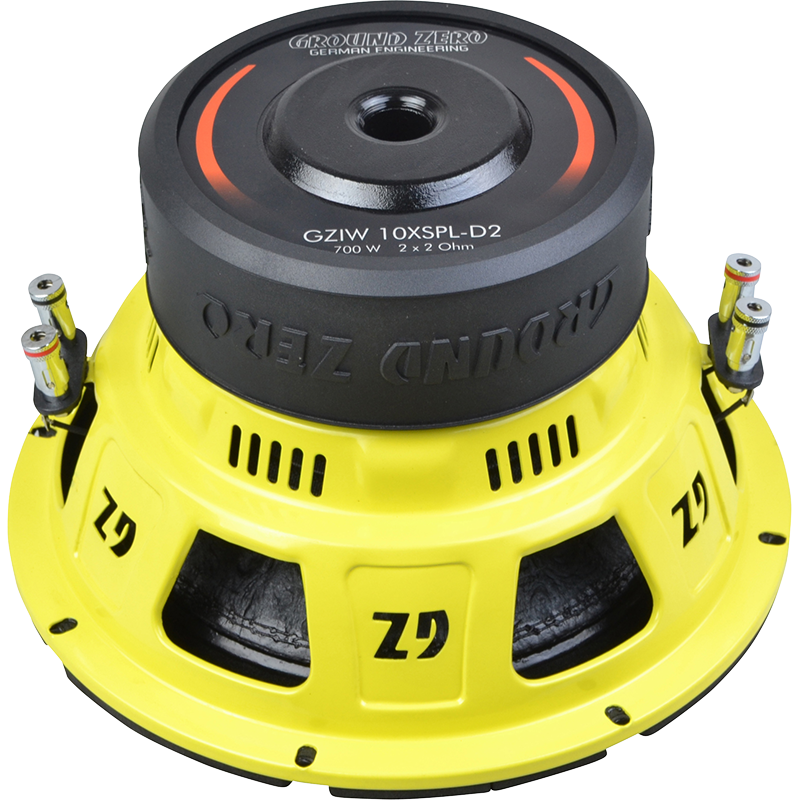

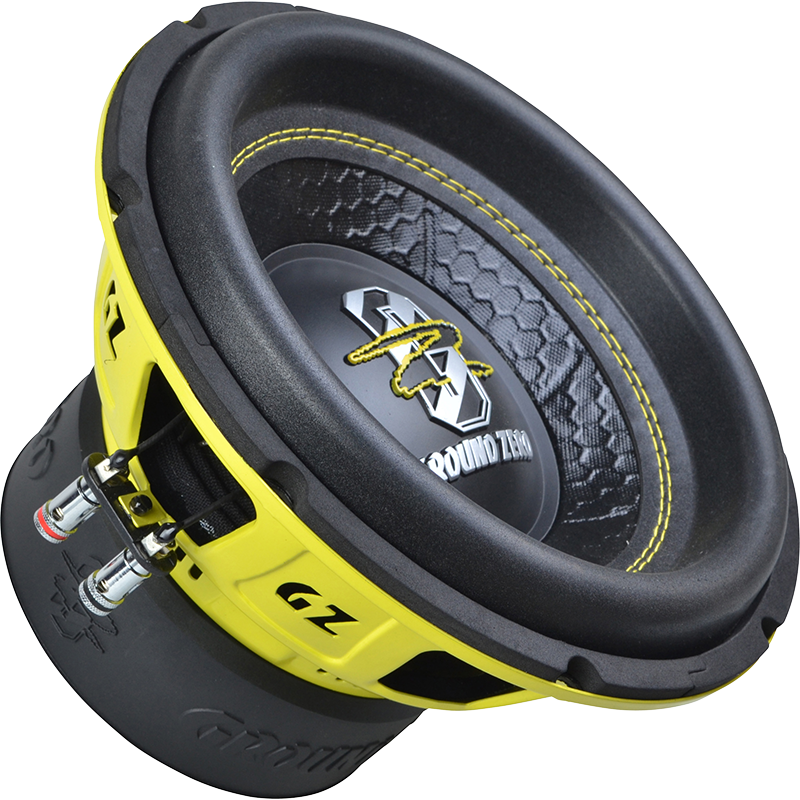

Ground Zero IRIDIUM GZIW 10XSPL-D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 36.2 Hz |
| Q factor | 0.61 |
| Sensitivity | 83.3 dB |
| Linear excursion | ± 16 mm |
| Program Power | 700 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 36.2Hz
- Mechanical quality factor QMS 10.50
- Electrical quality factor QES 0.65
- Total quality factor QTS 0.61
Large signal parameters
- Maximum linear excursion (one way) xmax 16mm
- Air volume displaced at xmax VD 550cm³
- Power handling P 500W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.9Ω
- Inductance (1kHz, in series) LE 2.96mH
- VC Diameter 63mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 17N/A
- Motor constant Bl/√RE 8.56N/√W
Diaphragm
- Effective diameter 209mm
- Effective area SD 344cm²
- Moving mass MMS 205g
- Moving mass (without air load) MMD 201g
- Material Reinforced paper
Suspensions
- Stiffness KMS 10.9N/mm
- Compliance CMS 92µm/N
- Equivalent volume to the compliance VAS 15.4L
- Mechanical resistance RMS 4.45N·s/m
- Surround material Sandwich
- Spider material Progressive 2-layer
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 257mm
- Baffle cutout diameter 230mm
- Mounting depth 147mm
- Volume occupied by the driver (estimated) 1.6L
