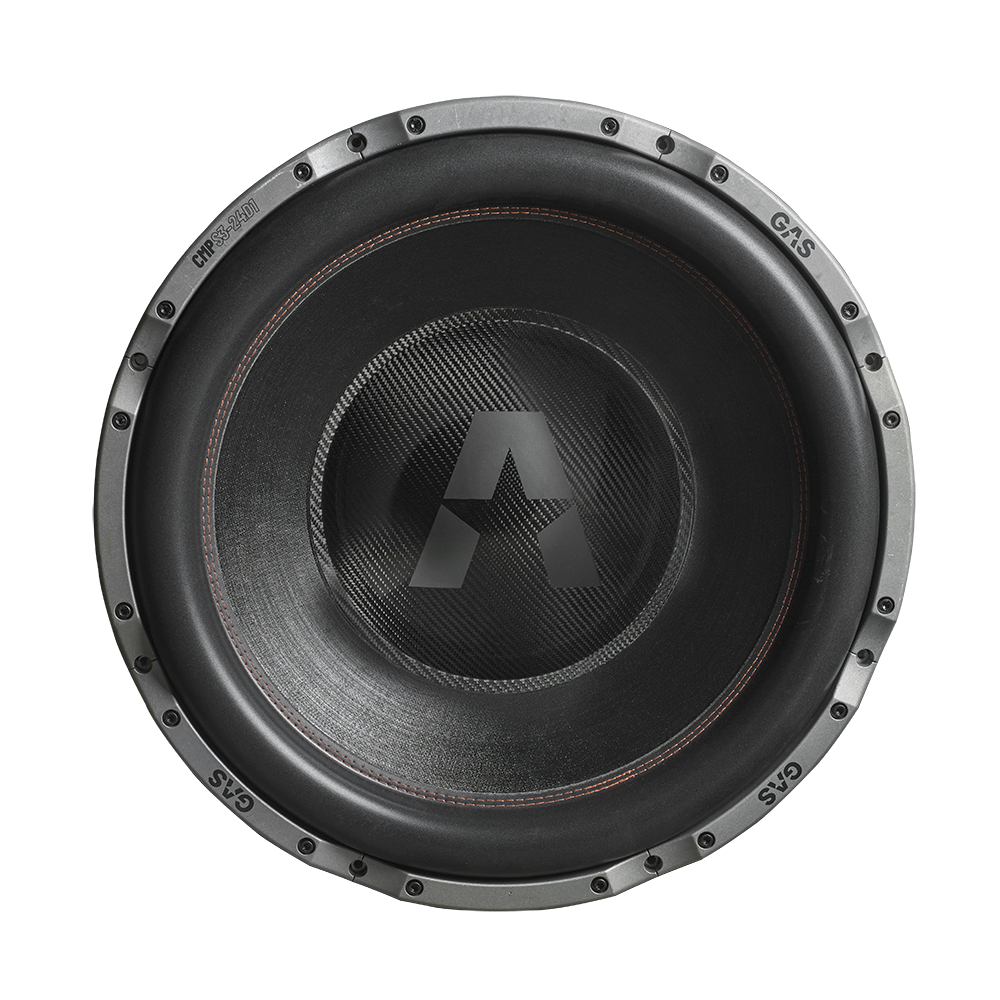

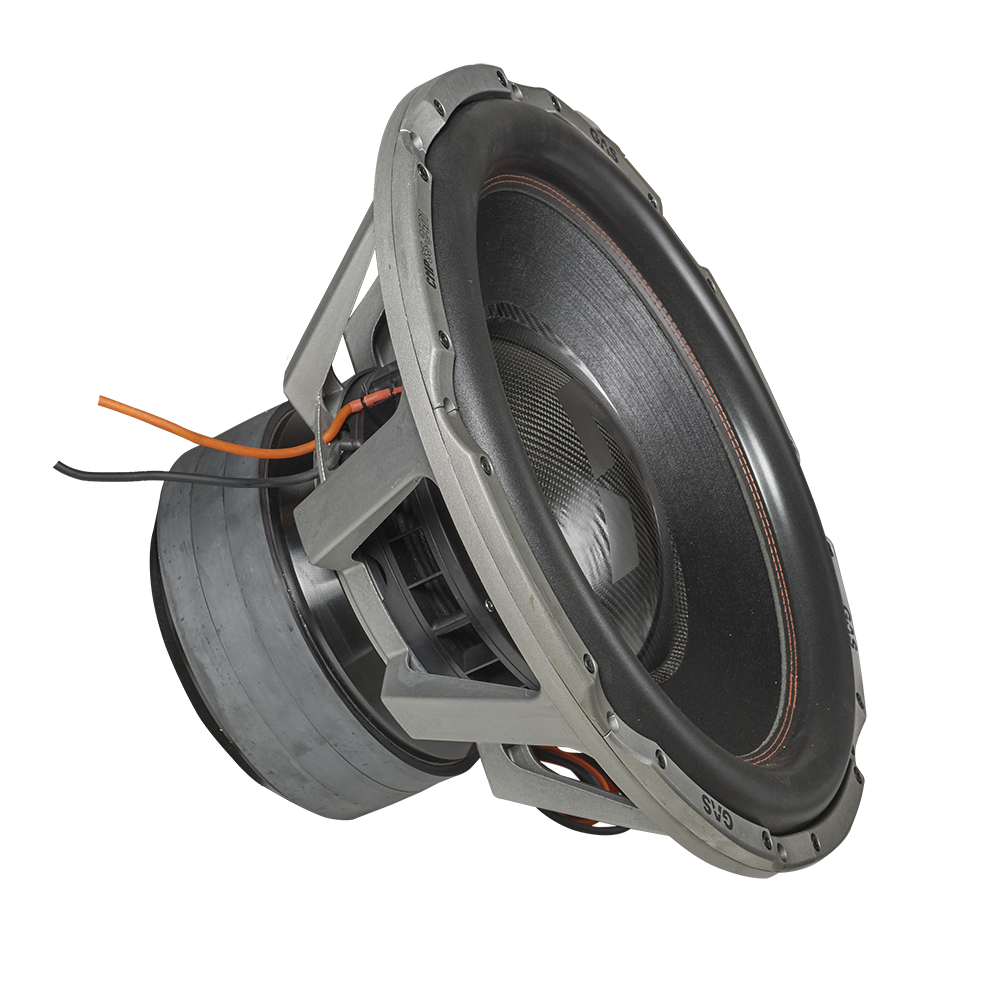

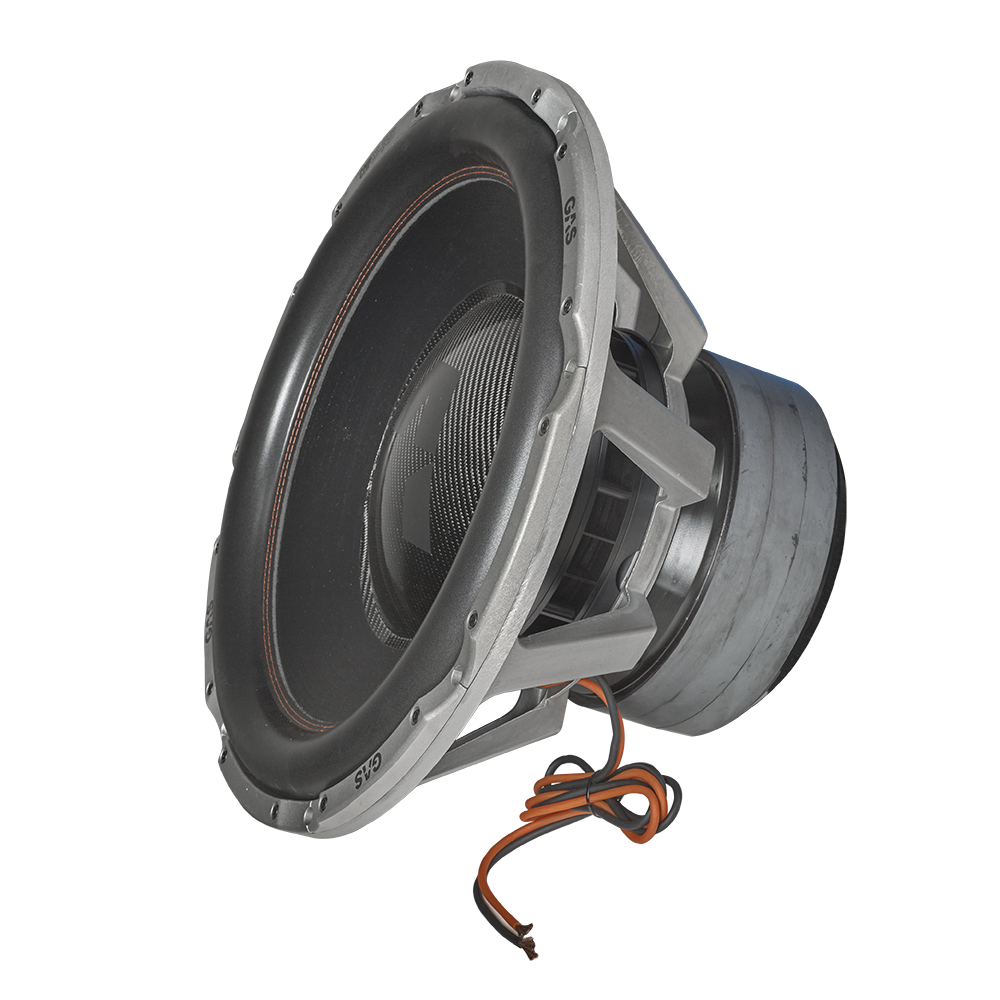

GAS Audio Power CMP S3-24D1
2x1Ω
Subwoofer
| Nominal diameter | 24″ / 610 mm |
| Resonance | 27 Hz |
| Q factor | 0.38 |
| Sensitivity | 92.2 dB |
| Linear excursion | ± 27 mm |
| Program Power | 17000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.2dB
- Frequency response 19 - 80Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 27Hz
- Mechanical quality factor QMS 3.93
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion (one way) xmax 27mm
- Air volume displaced at xmax VD 5513cm³
- Power handling P 8500W
- Program power Pmax 17000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 2.2Ω
- Inductance (1kHz, in series) LE 1.4mH
- VC Diameter 127mm
- Winding material Aluminum
Magnet
- Force factor (in series) Bl 22.4N/A
- Motor constant Bl/√RE 15.1N/√W
- Diameter 312mm
- Height 90mm
- Material Ferrite
Diaphragm
- Effective diameter 510mm
- Effective area SD 2042cm²
- Moving mass MMS 673g
- Moving mass (without air load) MMD 607g
- Material Mica pulp
Suspensions
- Stiffness KMS 17.5N/mm
- Compliance CMS 57µm/N
- Equivalent volume to the compliance VAS 123L
- Mechanical resistance RMS 29.1N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 24″
- 610mm
- Overall diameter 617mm
- Baffle cutout diameter 593mm
- Overall depth 328mm
- Volume occupied by the driver 15.9L
- Net weight 76.0kg
- Frame material Aluminium
