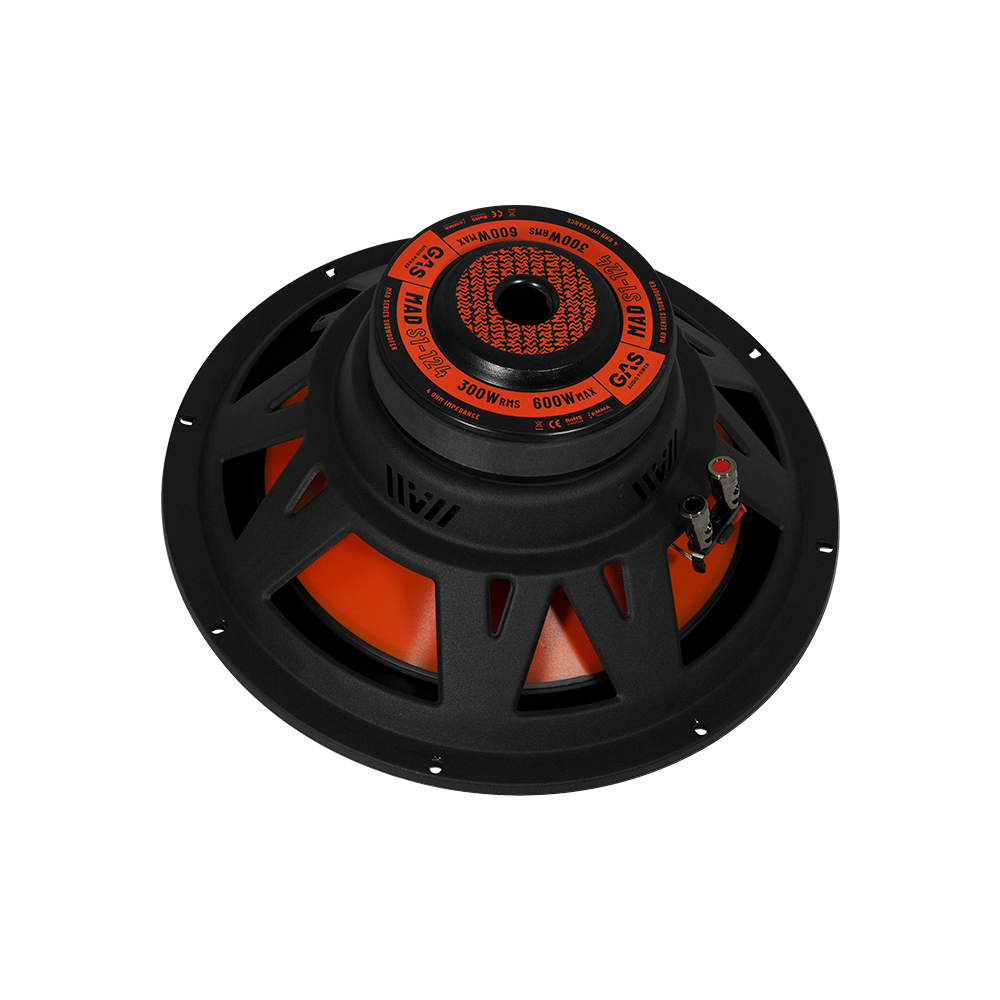

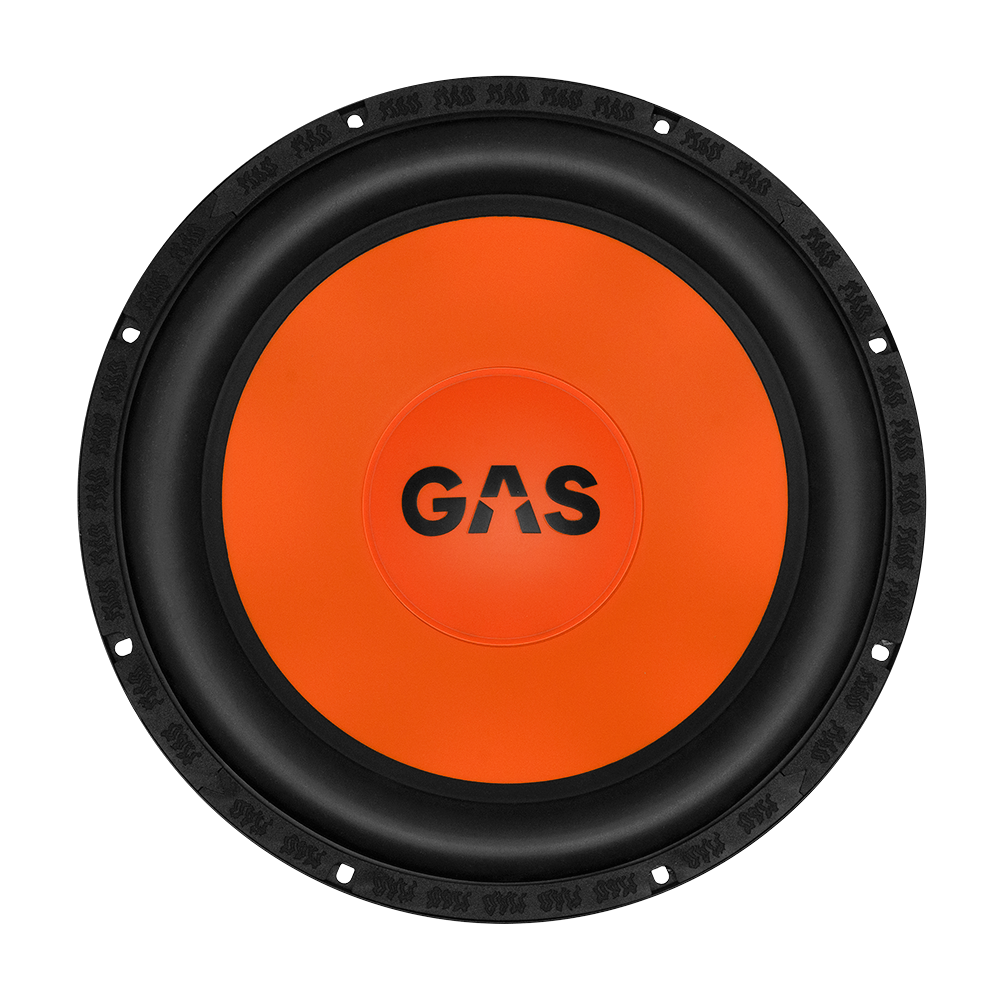

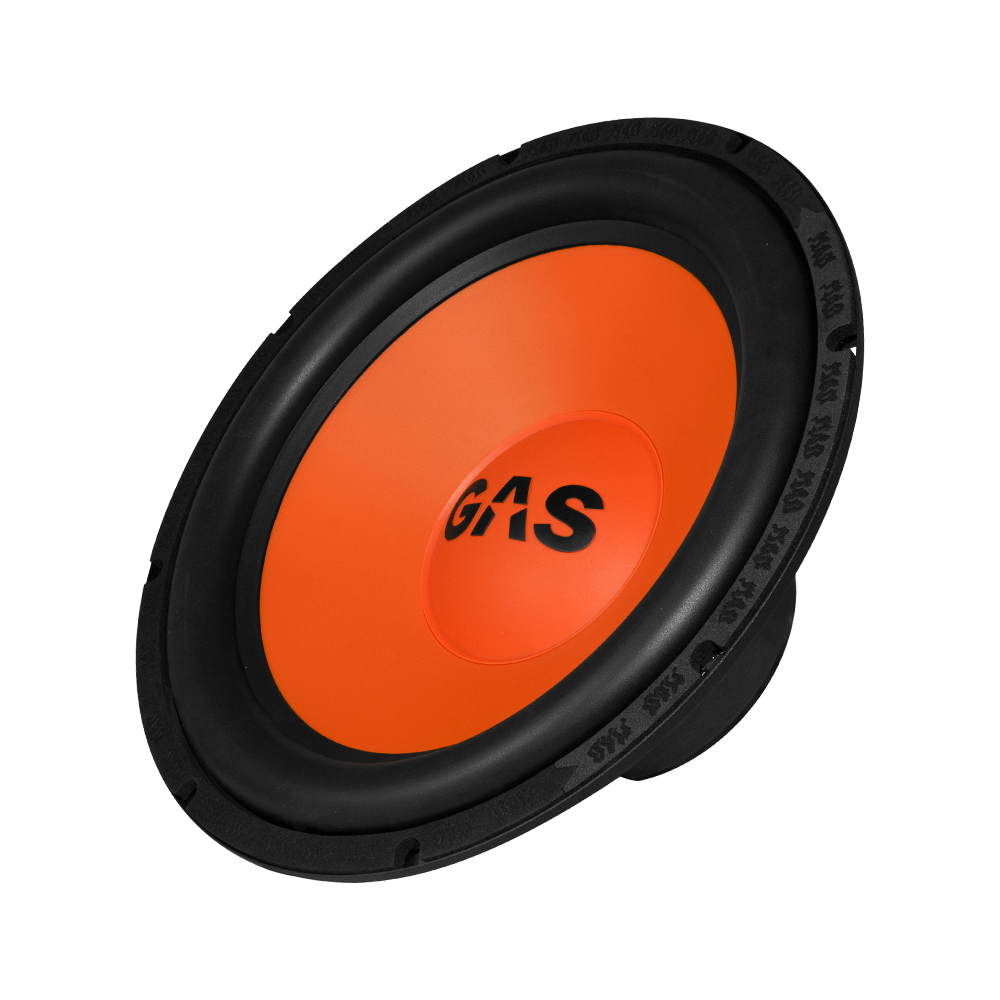

GAS Audio Power MAD S1-124
4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 32 Hz |
| Q factor | 0.59 |
| Sensitivity | 85.9 dB |
| Linear excursion | ± 8.5 mm |
| Program Power | 600 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.9dB
- Frequency response 27 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32Hz
- Mechanical quality factor QMS 4.06
- Electrical quality factor QES 0.72
- Total quality factor QTS 0.59
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Air volume displaced at xmax VD 390cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.1Ω
- Inductance (1kHz) LE 2.21mH
- VC Diameter 51mm
- Winding material Copper
Magnet
- Force factor Bl 9.5N/A
- Motor constant Bl/√RE 5.4N/√W
- Diameter 130mm
- Material Ferrite
Diaphragm
- Effective diameter 242mm
- Effective area SD 459cm²
- Moving mass MMS 121g
- Moving mass (without air load) MMD 114g
- Material Polypropylene
Suspensions
- Stiffness KMS 4N/mm
- Compliance CMS 250µm/N
- Equivalent volume to the compliance VAS 74.7L
- Mechanical resistance RMS 6.01N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 312mm
- Baffle cutout diameter 278mm
- Overall depth 136mm
- Flange thickness 9mm
- Mounting depth 127mm
- Volume occupied by the driver 1.4L
- Net weight 3.46kg
- Frame material Steel
