KICKER CompVR 52CVR124
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 28.5 Hz |
| Q factor | 0.65 |
| Sensitivity | 85.9 dB |
| Linear excursion | ± 16.5 mm |
| Program Power | 900 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 28.5Hz
- Mechanical quality factor QMS 8.97
- Electrical quality factor QES 0.70
- Total quality factor QTS 0.65
Large signal parameters
- Maximum linear excursion xmax 16.5mm
- Air volume displaced at xmax VD 876cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.1Ω
- Inductance (1kHz, in series) LE 5.73mH
Magnet
- Force factor (in series) Bl 18.2N/A
- Motor constant Bl/√RE 6.86N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 185g
- Moving mass (without air load) MMD 177g
Suspensions
- Stiffness KMS 5.95N/mm
- Compliance CMS 168µm/N
- Equivalent volume to the compliance VAS 67L
- Mechanical resistance RMS 3.7N·s/m

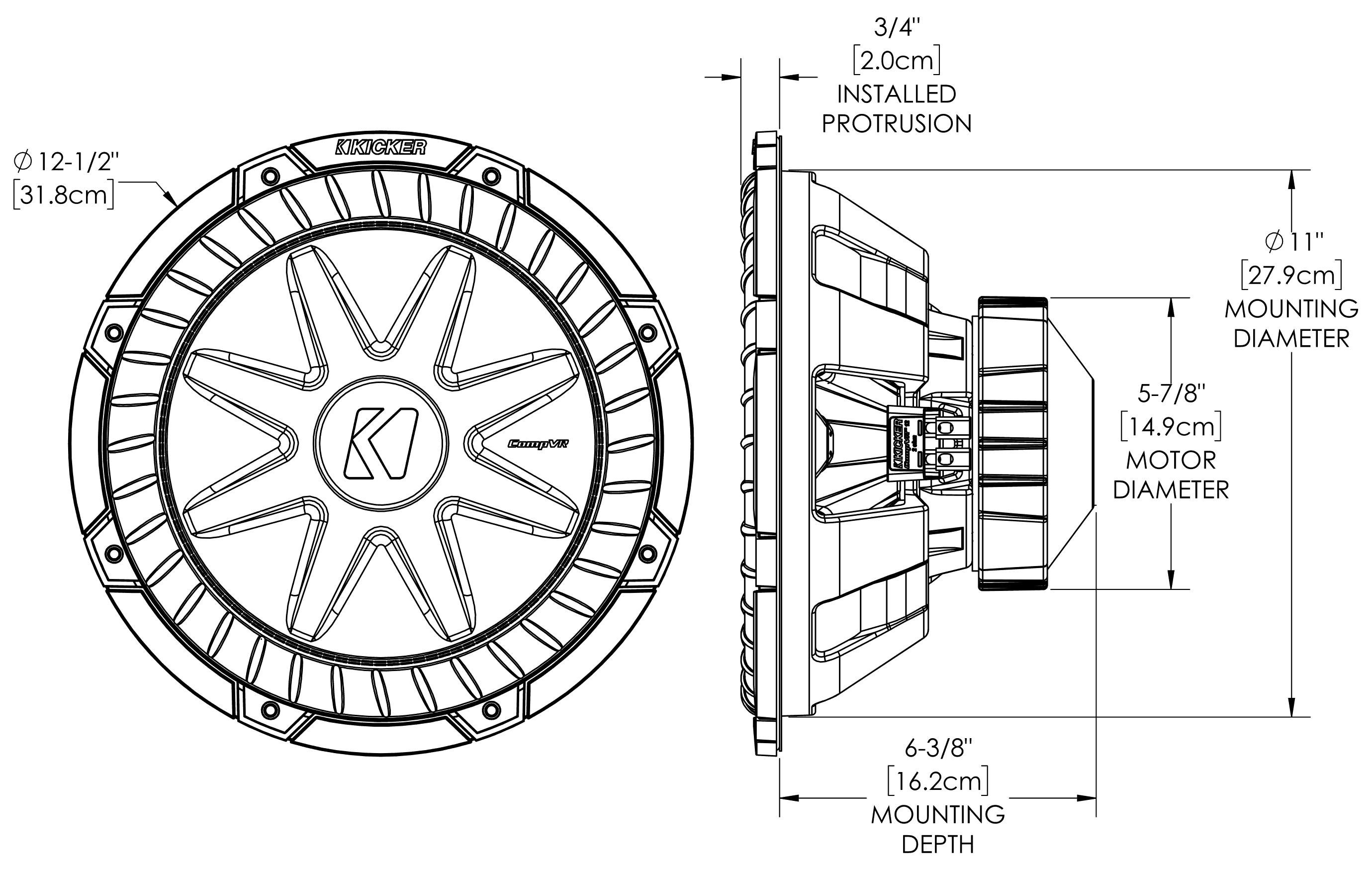

Dimensions
- Nominal diameter 12″
- 300mm
- Baffle cutout diameter 279mm
- Mounting depth 162mm
- Volume occupied by the driver (estimated) 2.3L
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
