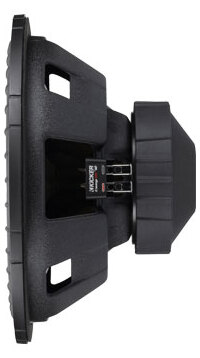

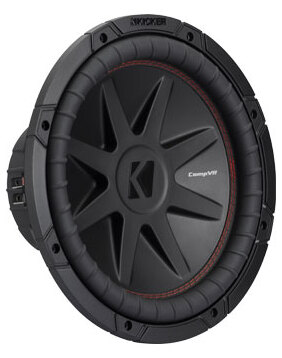

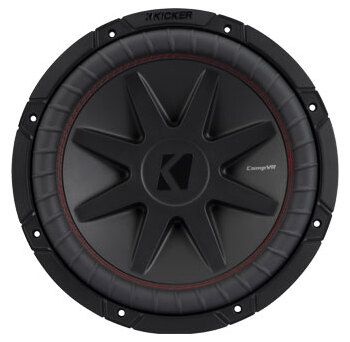

KICKER CompVR 52CVR122
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 27 Hz |
| Q factor | 0.57 |
| Sensitivity | 85.9 dB |
| Linear excursion | ± 16.5 mm |
| Program Power | 900 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 27Hz
- Mechanical quality factor QMS 7.79
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.57
Large signal parameters
- Maximum linear excursion xmax 16.5mm
- Air volume displaced at xmax VD 876cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.7Ω
- Inductance (1kHz, in series) LE 3.89mH
Magnet
- Force factor (in series) Bl 14.1N/A
- Motor constant Bl/√RE 7.35N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 197g
- Moving mass (without air load) MMD 189g
Suspensions
- Stiffness KMS 5.68N/mm
- Compliance CMS 177µm/N
- Equivalent volume to the compliance VAS 70.4L
- Mechanical resistance RMS 4.29N·s/m

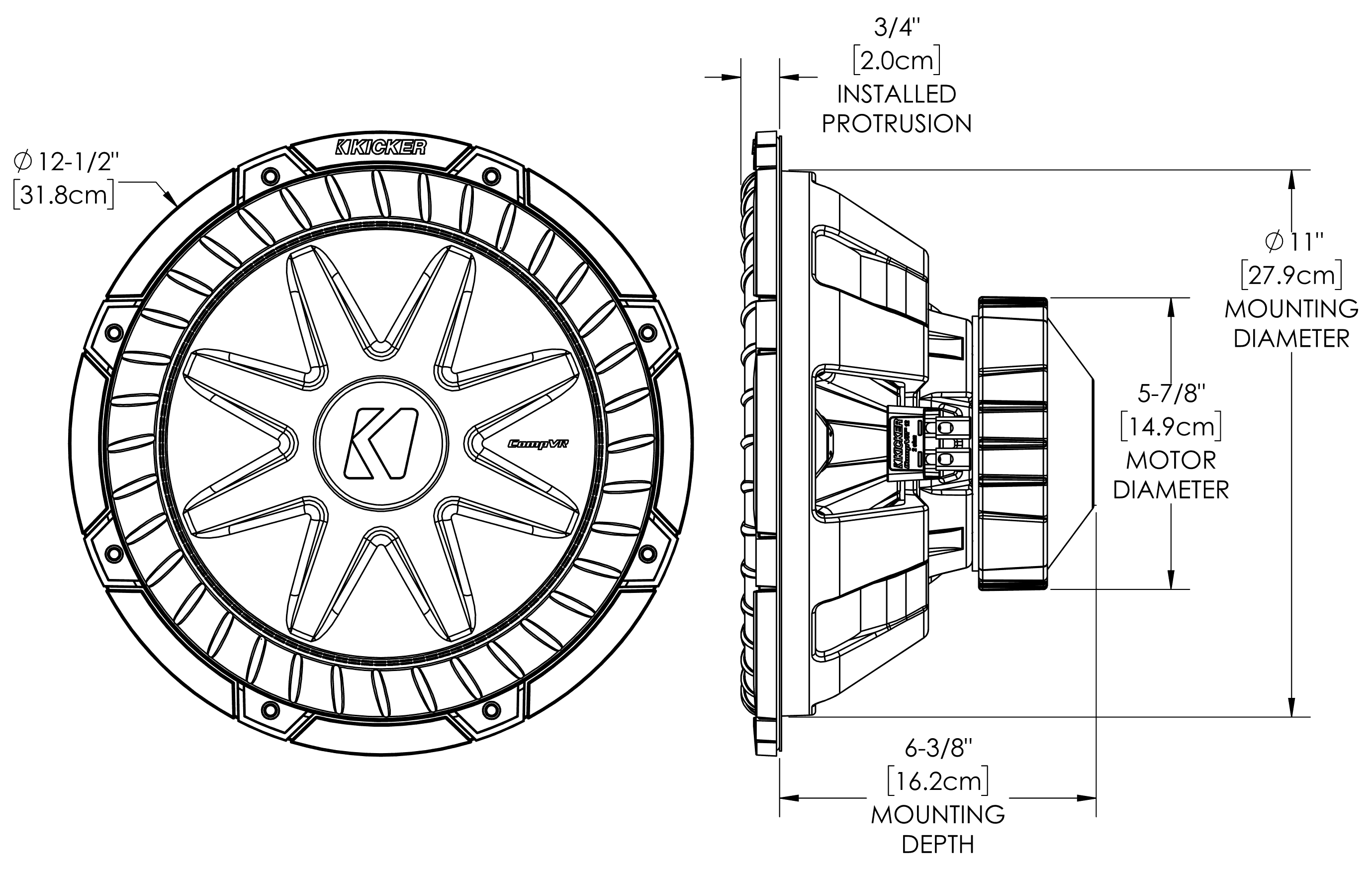

Dimensions
- Nominal diameter 12″
- 300mm
- Baffle cutout diameter 279mm
- Mounting depth 162mm
- Volume occupied by the driver (estimated) 2.3L
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
