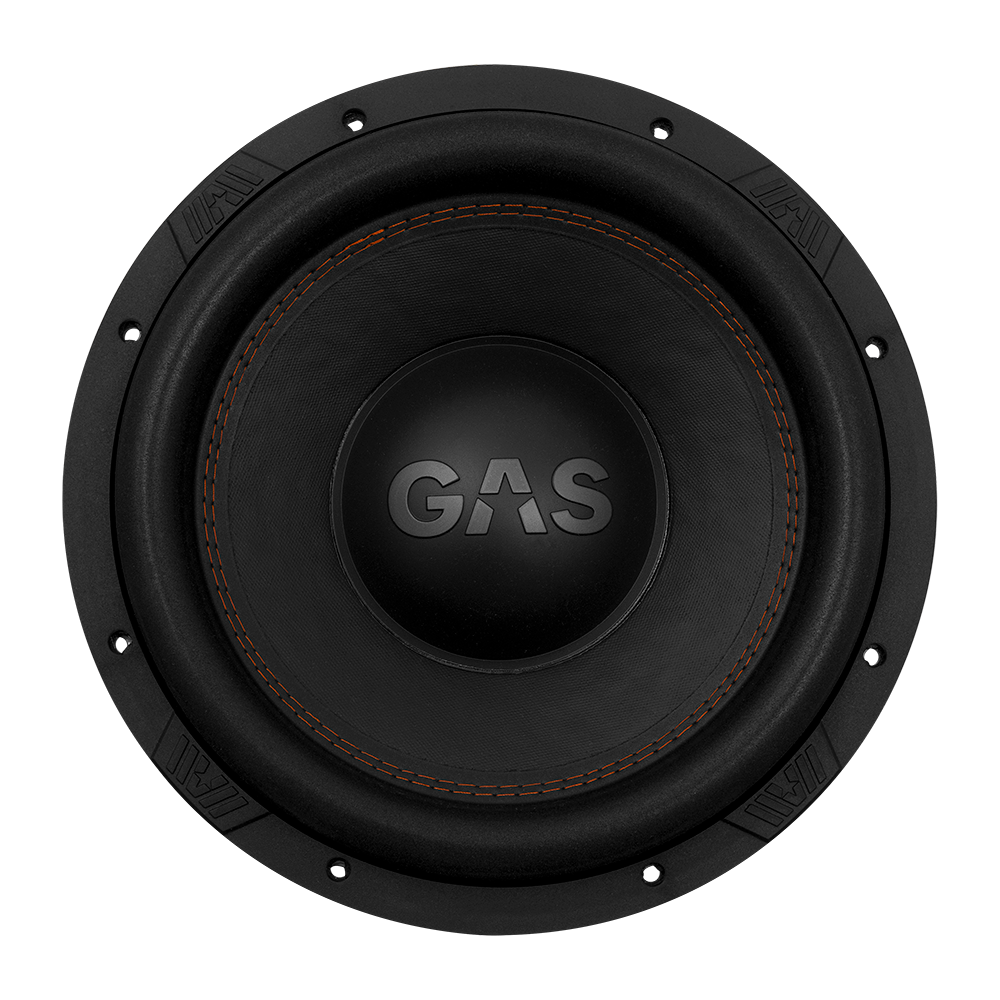

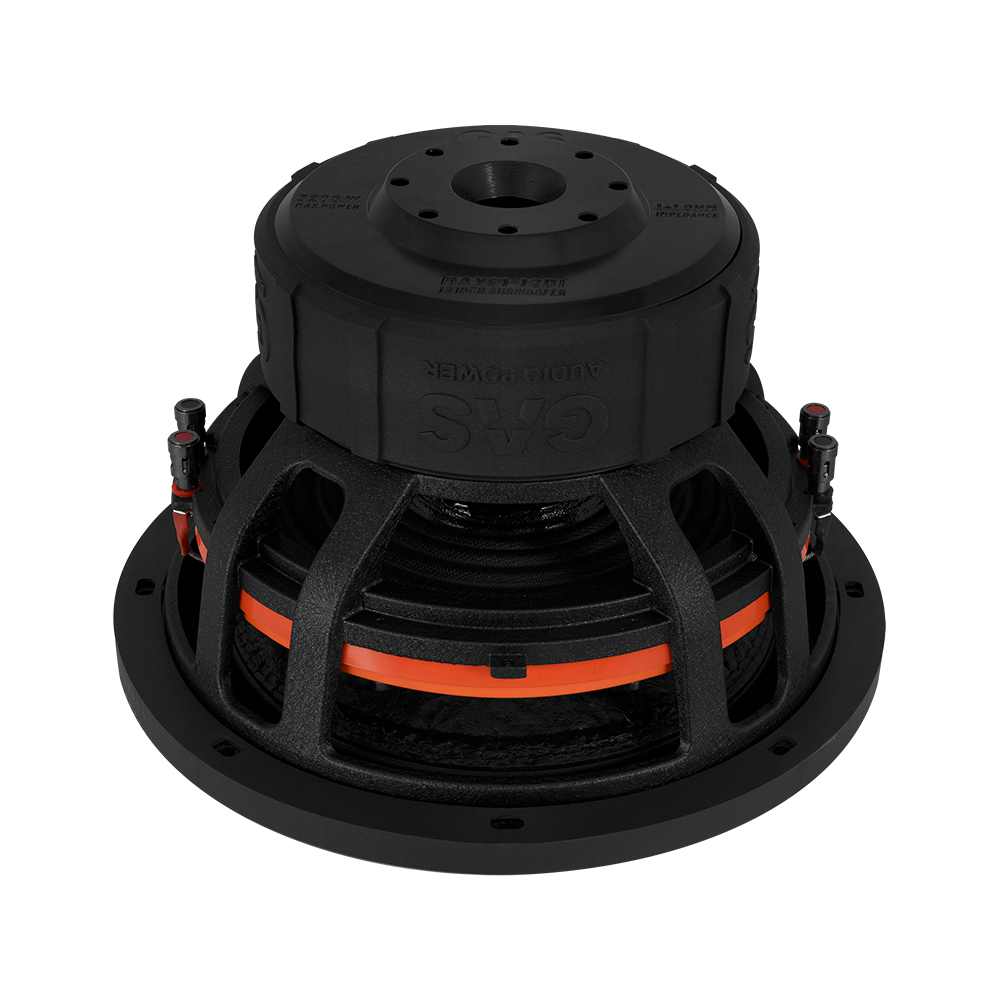

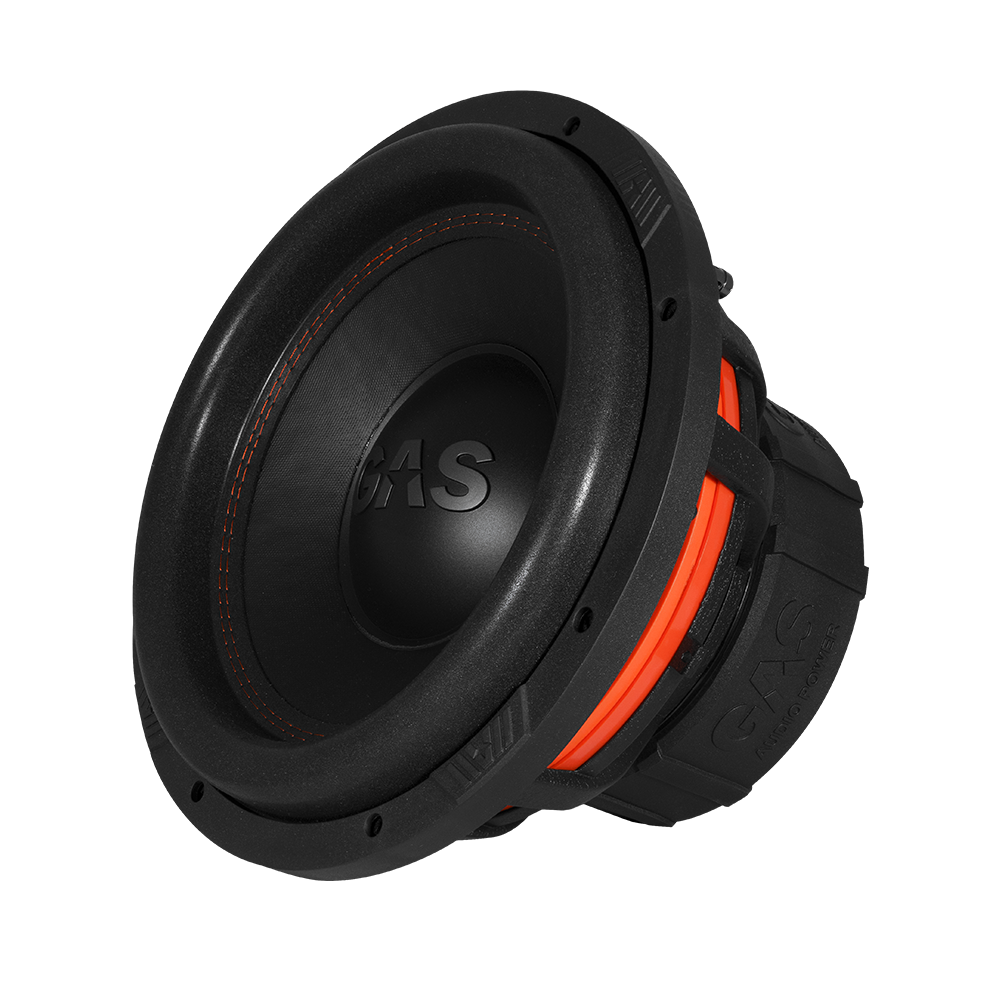

GAS Audio Power MAX S1-12D1
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 27.4 Hz |
| Q factor | 0.48 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 20 mm |
| Program Power | 3200 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 27.4Hz
- Mechanical quality factor QMS 5.81
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 1060cm³
- Power handling P 1600W
- Program power Pmax 3200W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 1.17mH
- VC Diameter 76.2mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 13.9N/A
- Motor constant Bl/√RE 10.4N/√W
- Diameter 202mm
- Weight 5.67kg
- Material Ferrite
Diaphragm
- Effective diameter 260mm
- Effective area SD 530cm²
- Moving mass MMS 346g
- Moving mass (without air load) MMD 337g
- Material Paper
Suspensions
- Stiffness KMS 9.8N/mm
- Compliance CMS 102µm/N
- Equivalent volume to the compliance VAS 33.4L
- Mechanical resistance RMS 10.3N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 326mm
- Baffle cutout diameter 285mm
- Overall depth 203mm
- Flange thickness 16mm
- Mounting depth 187mm
- Volume occupied by the driver 3.1L
- Net weight 13.2kg
- Frame material Aluminium
