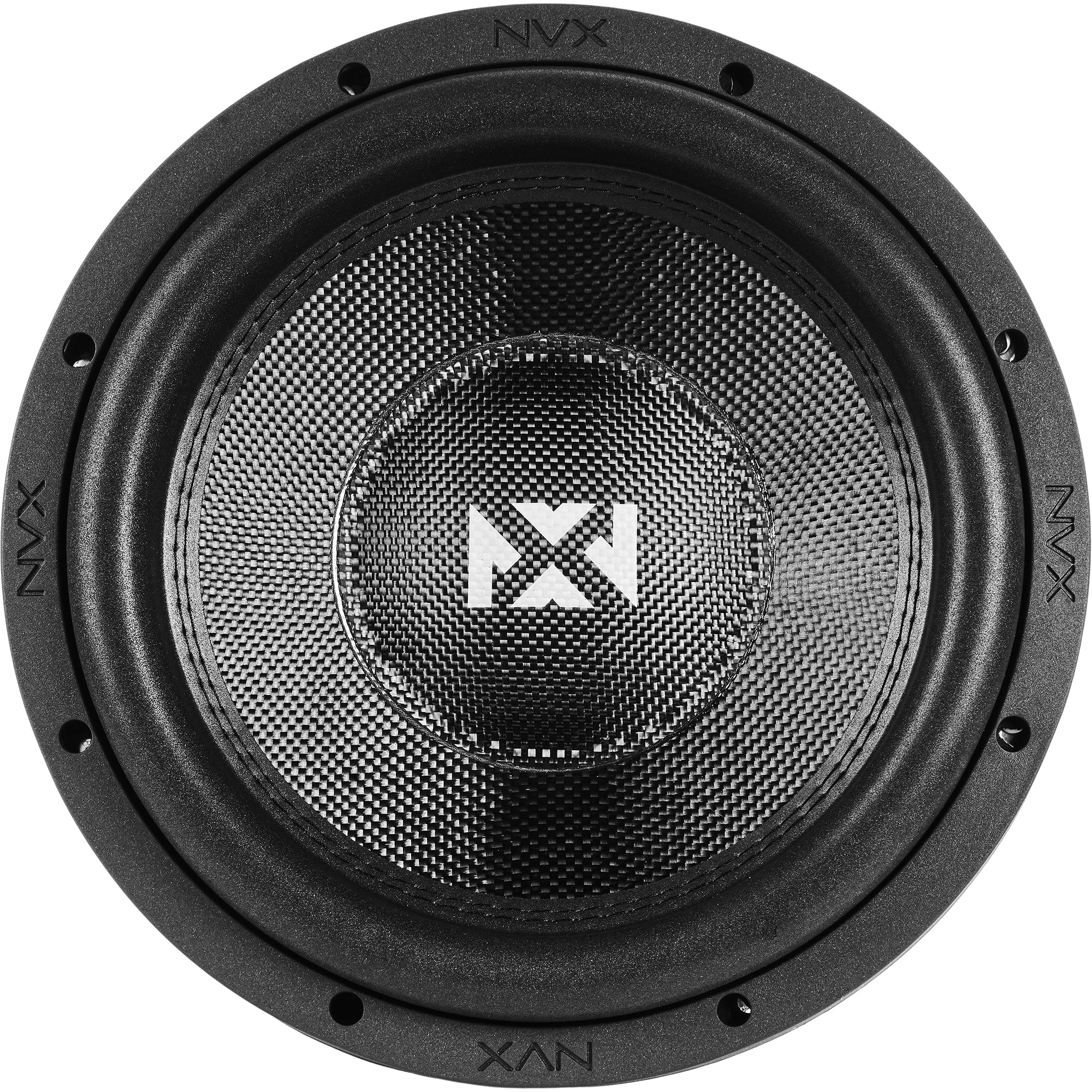

NVX VCW122v3
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 321 mm |
| Resonance | 25.1 Hz |
| Q factor | 0.40 |
| Sensitivity | 84 dB |
| Linear excursion | ± 23 mm |
| Program power | 2400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 25.1Hz
- Mechanical quality factor QMS 5.12
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 23mm
- Air volume displaced at xmax VD 1219cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.2Ω
- Inductance (1kHz, in series, estimated) LE 3.66mH
Magnet
- Force factor (in series) Bl 20.8N/A
- Motor constant Bl/√RE 11.6N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 530cm²
- Moving mass (including air load) MMS 374g
- Moving mass MMD 365g
Suspensions
- Stiffness KMS 9.26N/mm
- Compliance CMS 108µm/N
- Equivalent volume to the compliance VAS 42.9L
- Mechanical resistance RMS 11.5N·s/m
Dimensions
- Nominal diameter 12″
- 321mm
- Overall diameter 321mm
- Baffle cutout diameter 284mm
- Mounting depth 174mm
- Volume occupied by the driver 4.25L
- Net weight 13.5kg
