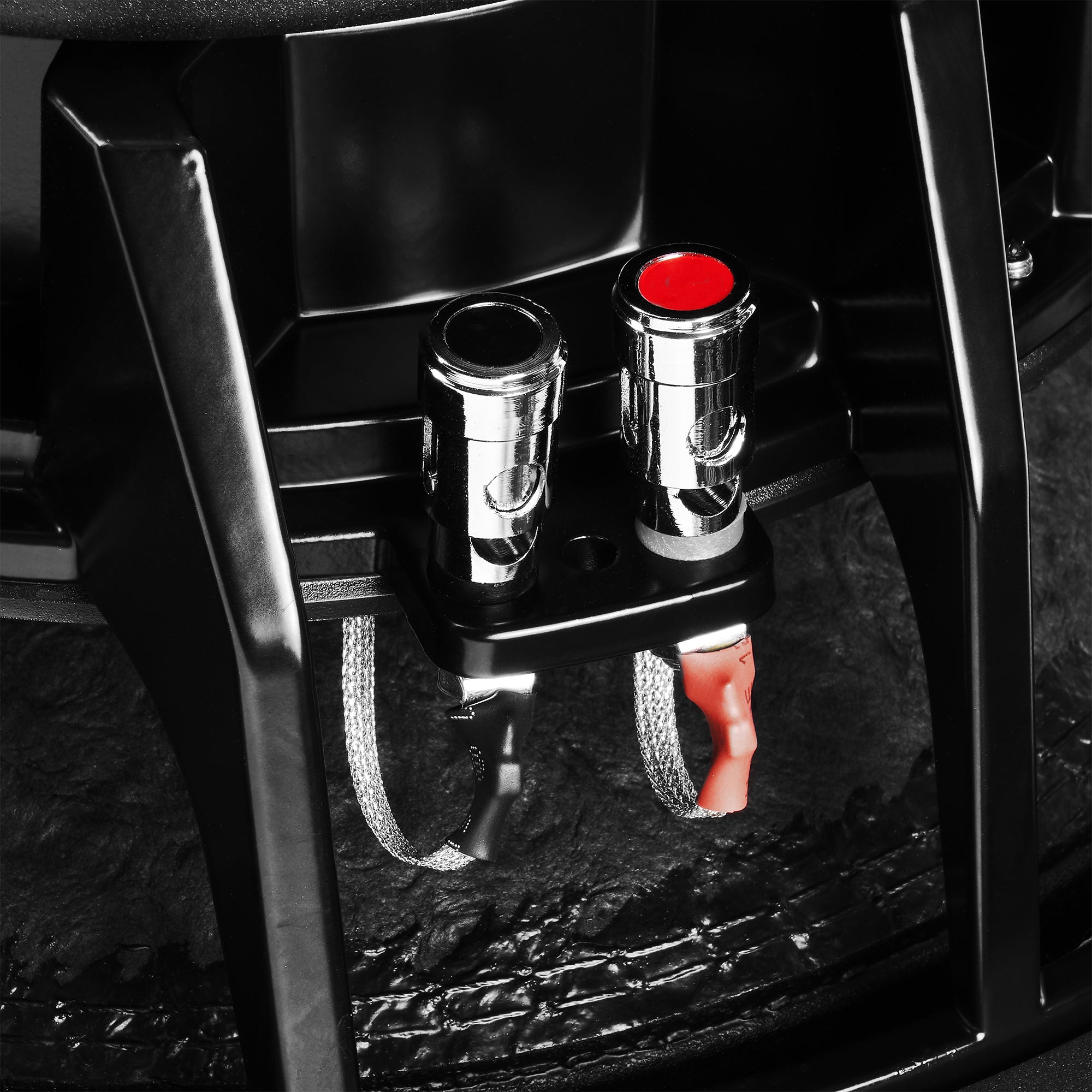

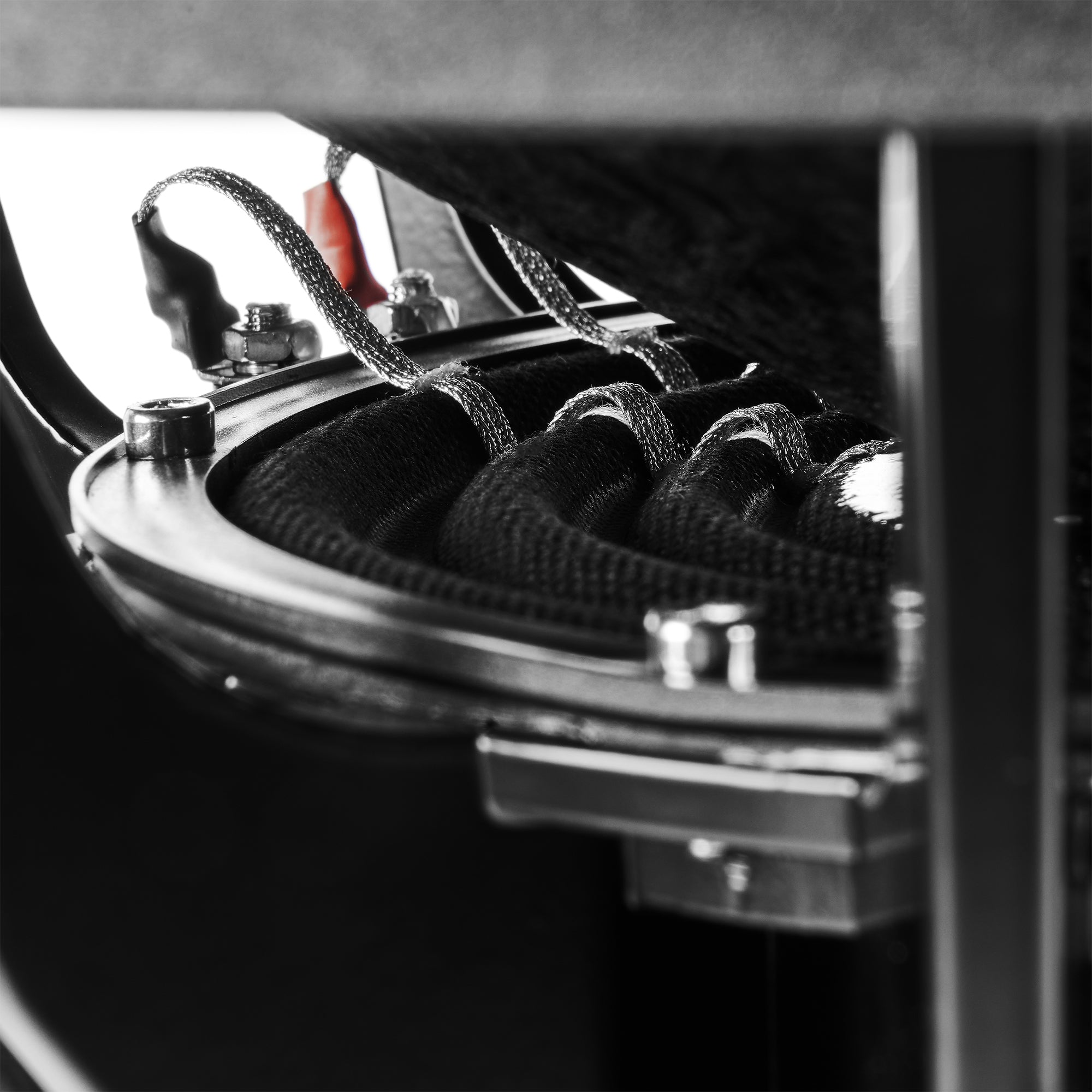

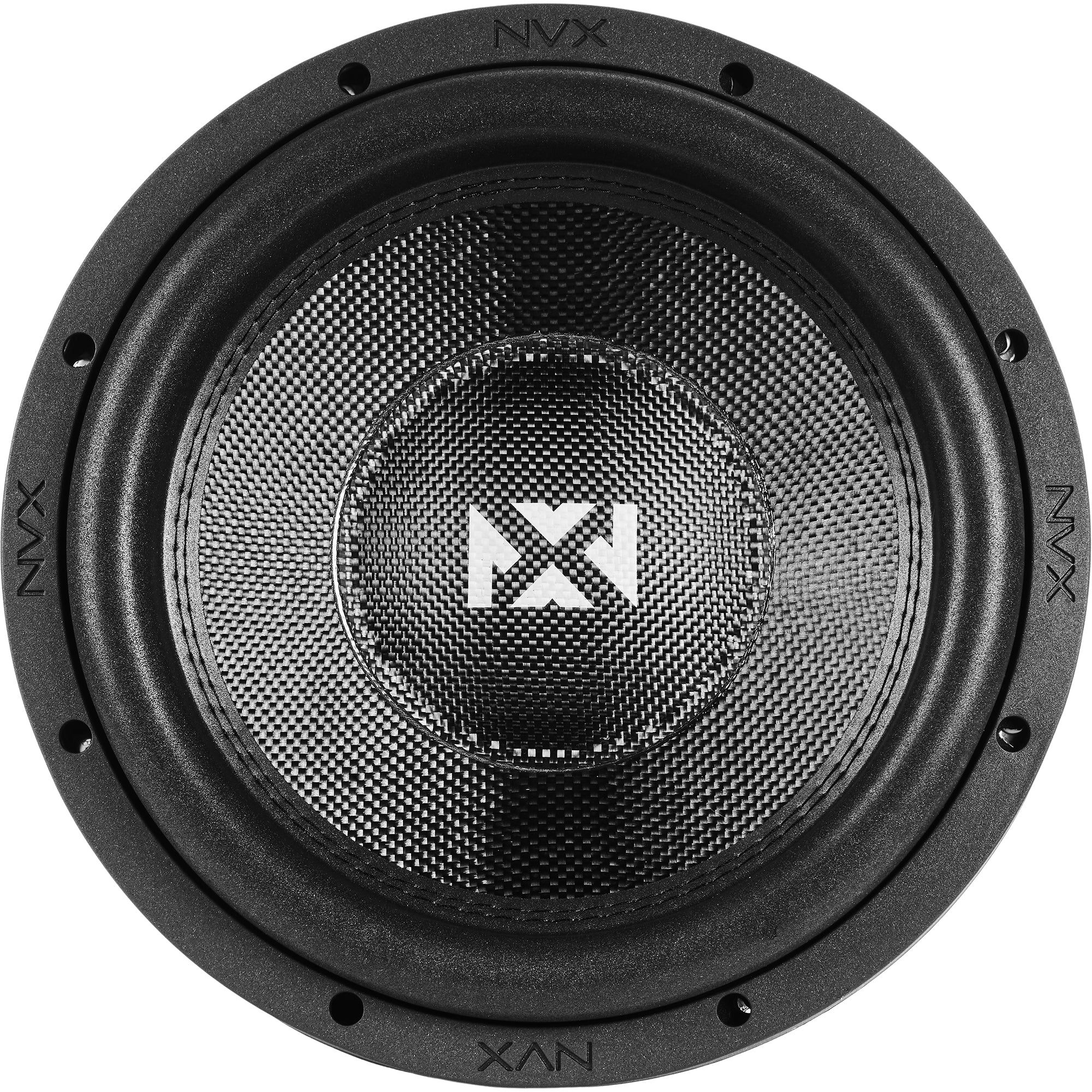

NVX VCW124v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 12″ / 321 mm |
| Resonance | 29.4 Hz |
| Q factor | 0.55 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 23 mm |
| Program power | 2400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29.4Hz
- Mechanical quality factor QMS 4.73
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.55
Large signal parameters
- Maximum linear excursion (one way) xmax 23mm
- Air volume displaced at xmax VD 1219cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 4.43mH
Magnet
- Force factor (in series) Bl 18.3N/A
- Motor constant Bl/√RE 7.23N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 530cm²
- Moving mass (including air load) MMS 176g
- Moving mass MMD 167g
Suspensions
- Stiffness KMS 5.99N/mm
- Compliance CMS 167µm/N
- Equivalent volume to the compliance VAS 66.7L
- Mechanical resistance RMS 6.85N·s/m
Dimensions
- Nominal diameter 12″
- 321mm
- Overall diameter 321mm
- Baffle cutout diameter 284mm
- Mounting depth 174mm
- Volume occupied by the driver 4.25L
- Net weight 13.5kg
