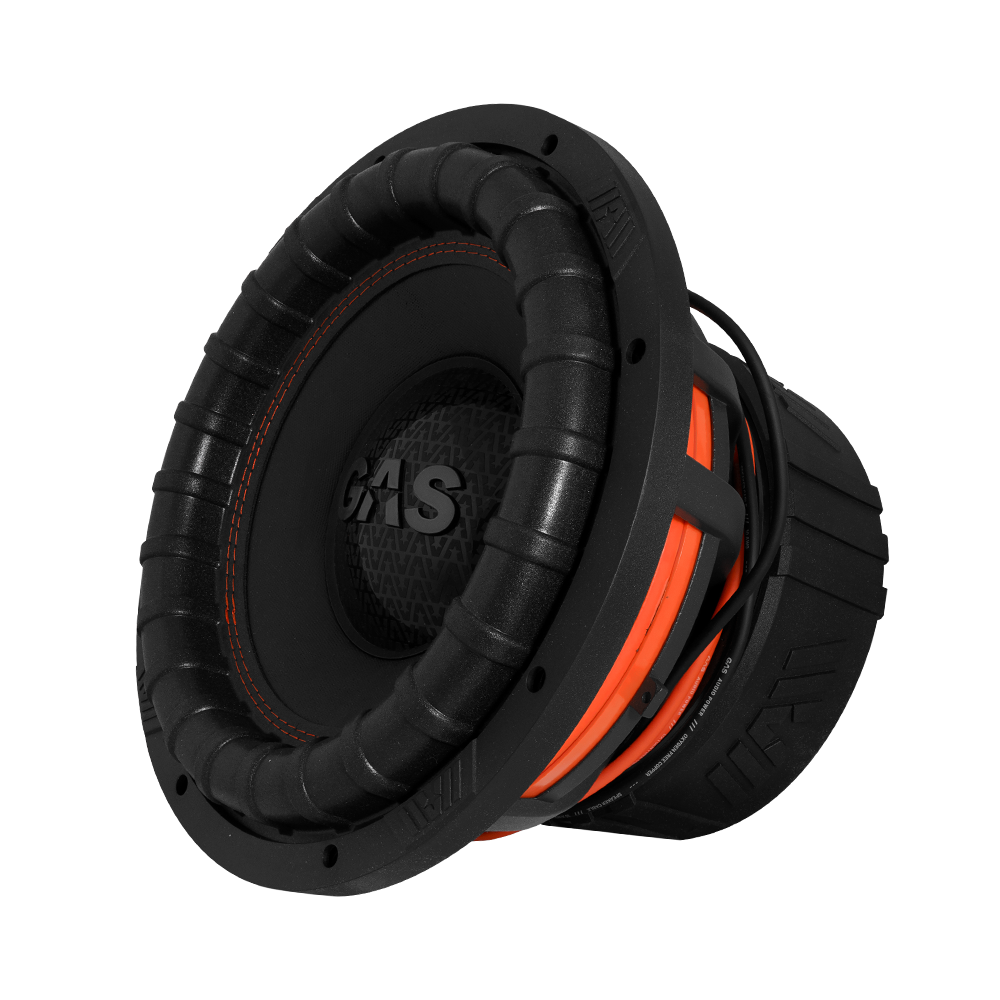

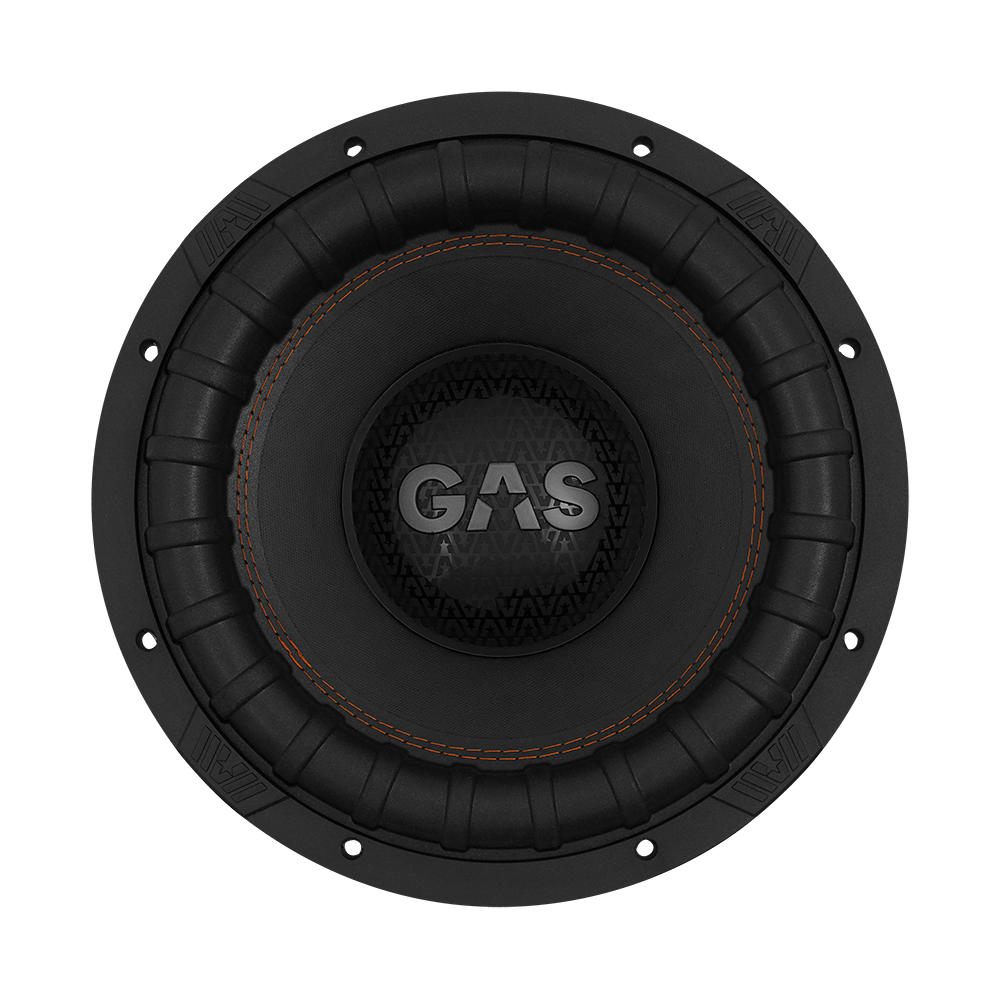

GAS Audio Power MAX S2-12D1
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 34.8 Hz |
| Q factor | 0.42 |
| Sensitivity | 85.3 dB |
| Linear excursion | ± 22.5 mm |
| Program Power | 5000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.3dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34.8Hz
- Mechanical quality factor QMS 5.28
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.42
Large signal parameters
- Maximum linear excursion (one way) xmax 22.5mm
- Air volume displaced at xmax VD 1078cm³
- Power handling P 2500W
- Program power Pmax 5000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 2.2Ω
- Inductance (1kHz, in series) LE 1.16mH
- VC Diameter 76.2mm
- Winding material Copper
- Former material Black Aluminum SV
Magnet
- Force factor (in series) Bl 18.2N/A
- Motor constant Bl/√RE 12.3N/√W
- Diameter 230mm
- Weight 9.185kg
- Material Ferrite
Diaphragm
- Effective diameter 247mm
- Effective area SD 479cm²
- Moving mass MMS 305g
- Moving mass (without air load) MMD 297g
- Material Paper / Mica
Suspensions
- Stiffness KMS 14.7N/mm
- Compliance CMS 68µm/N
- Equivalent volume to the compliance VAS 25L
- Mechanical resistance RMS 12.6N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 326mm
- Baffle cutout diameter 285mm
- Overall depth 212mm
- Flange thickness 16mm
- Mounting depth 196mm
- Volume occupied by the driver 4.8L
- Net weight 19.8kg
- Frame material Aluminium
