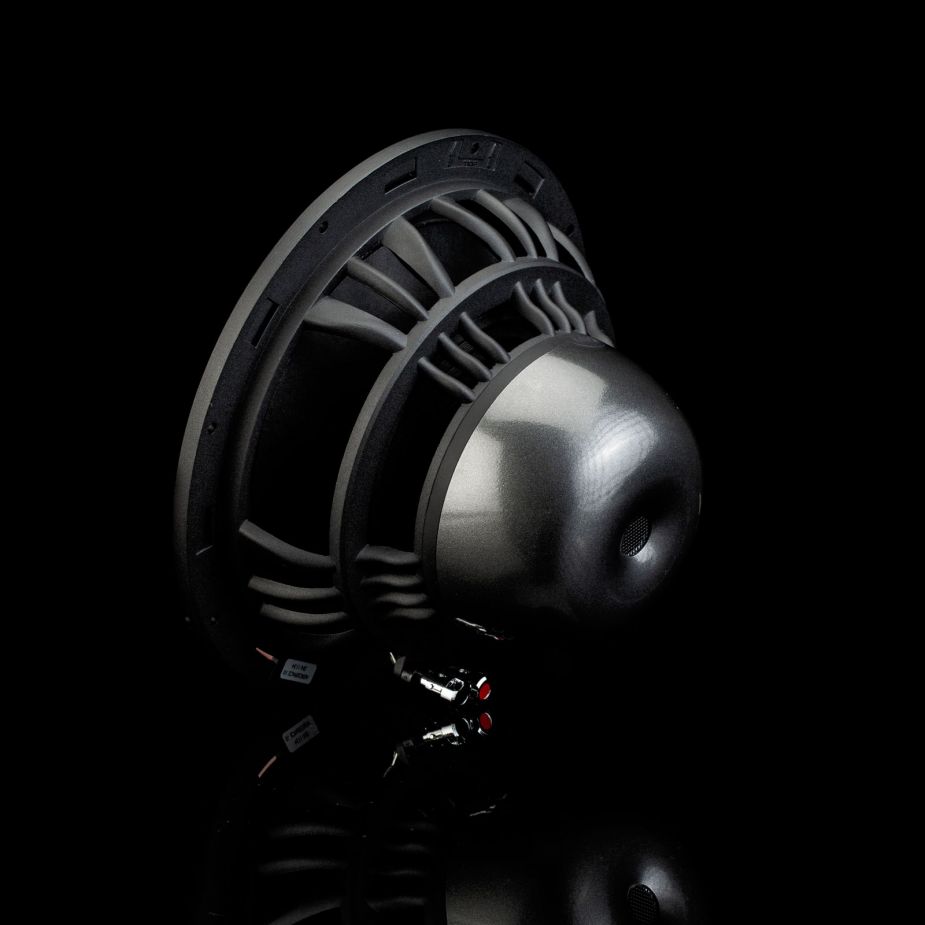

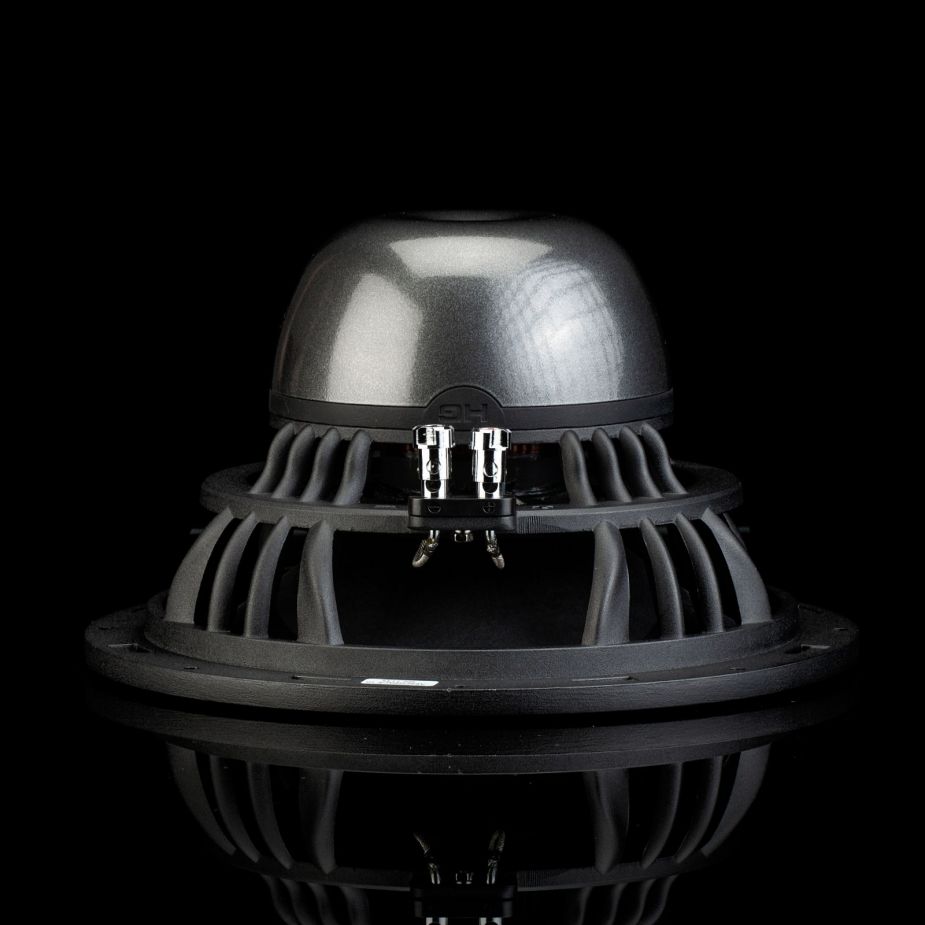

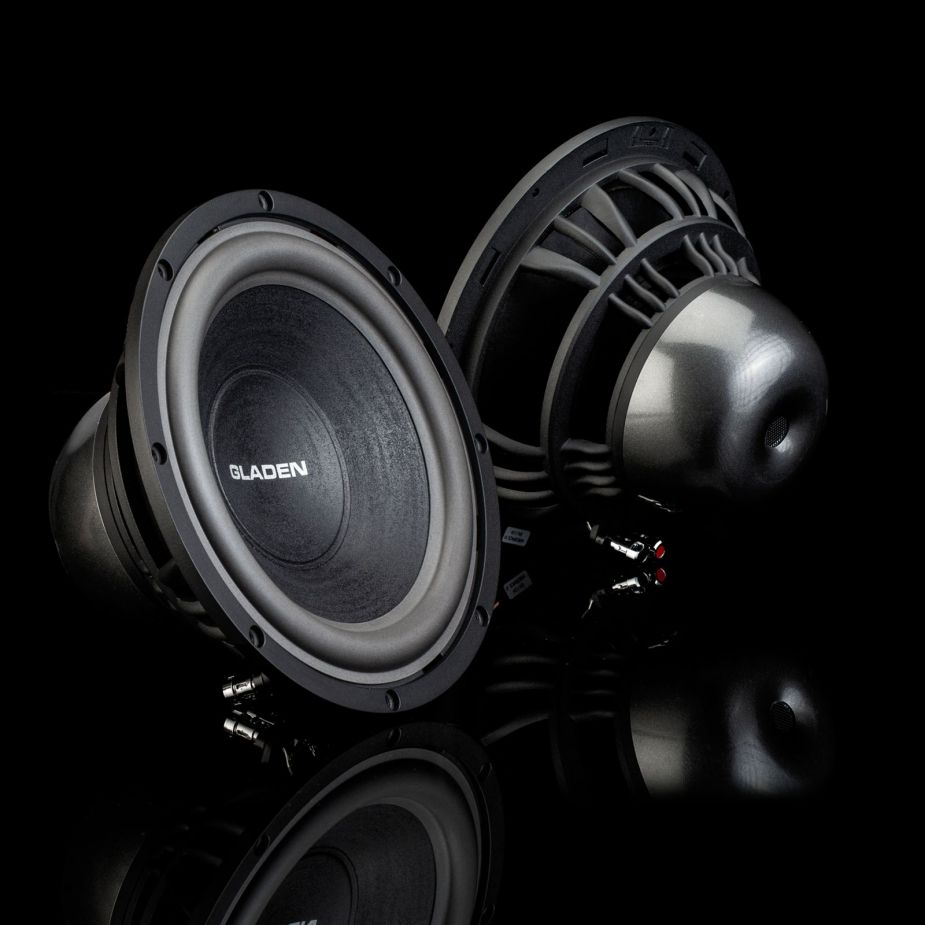

GLADEN AEROSPACE AERO 10
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 34.5 Hz |
| Q factor | 0.56 |
| Sensitivity | 86 dB |
| Linear excursion | ± 15 mm |
| Program power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86dB
Thiele & Small parameters
- Resonance frequency (free air) fS 34.5Hz
- Mechanical quality factor QMS 10.80
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion (one way) xmax 15mm
- Maximum excursion before damage xlim 25mm
- Air volume displaced at xmax VD 519cm³
- Power handling P 400W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz, estimated) LE 1.61mH
- VC Diameter 65mm
- Winding height HVC 38mm
- Former material CFK
Magnet
- Force factor Bl 11.2N/A
- Motor constant Bl/√RE 6.17N/√W
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass (including air load) MMS 104g
- Moving mass MMD 99.4g
- Material PFP
Suspensions
- Stiffness KMS 5N/mm
- Compliance CMS 200µm/N
- Equivalent volume to the compliance VAS 34.2L
- Mechanical resistance RMS 2.1N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 279mm
- Baffle cutout diameter 236mm
- Mounting depth 147mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Aluminium
