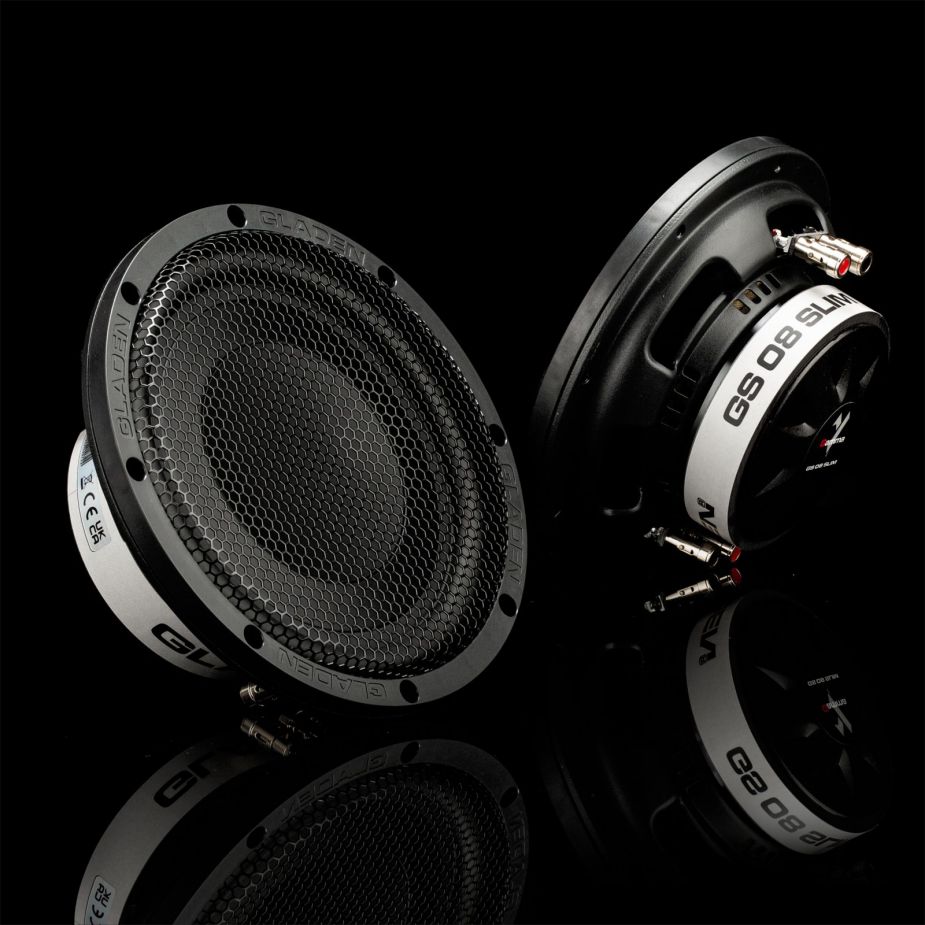

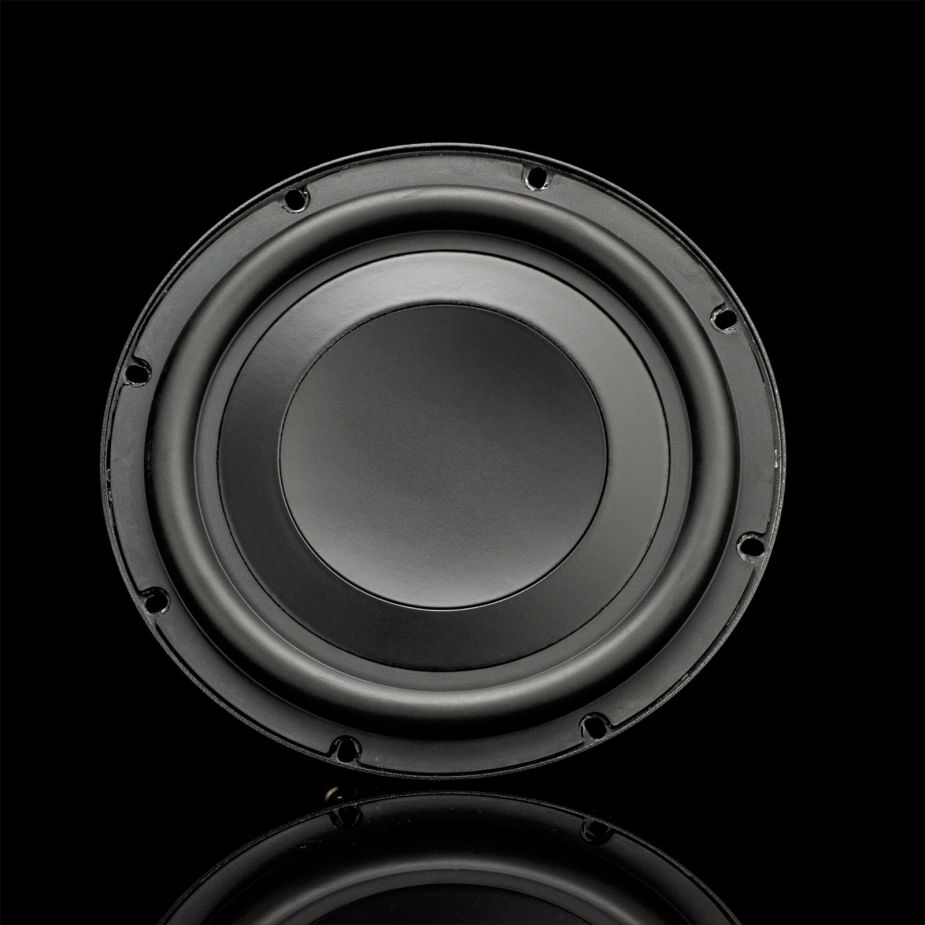

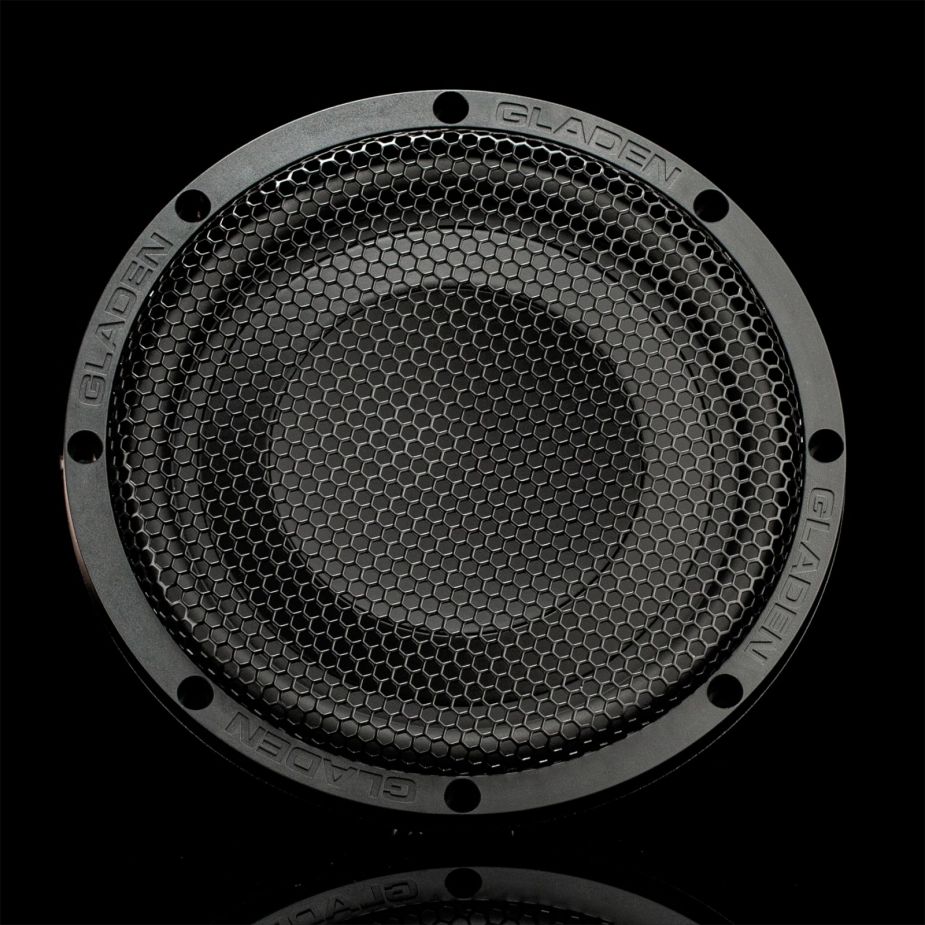

GLADEN GS08-SLIM
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 209 mm |
| Resonance | 43.4 Hz |
| Q factor | 0.57 |
| Sensitivity | 82 dB |
| Program power | 300 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82dB
Thiele & Small parameters
- Resonance frequency (free air) fS 43.4Hz
- Mechanical quality factor QMS 6.29
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.57
Large signal parameters
- Power handling P 200W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.3Ω
- Inductance (1kHz, in series, estimated) LE 1.57mH
- VC Diameter 38.1mm
Magnet
- Force factor (in series) Bl 10.9N/A
- Motor constant Bl/√RE 5.98N/√W
- Diameter 120mm
Diaphragm
- Effective diameter 164mm
- Effective area SD 211cm²
- Moving mass (including air load) MMS 99.9g
- Moving mass MMD 97.6g
Suspensions
- Stiffness KMS 7.46N/mm
- Compliance CMS 134µm/N
- Equivalent volume to the compliance VAS 6.3L
- Mechanical resistance RMS 5.84N·s/m
Dimensions
- Nominal diameter 8″
- 209mm
- Overall diameter 209mm
- Baffle cutout diameter 183mm
- Mounting depth 76mm
- Volume occupied by the driver (estimated) 0.92L
