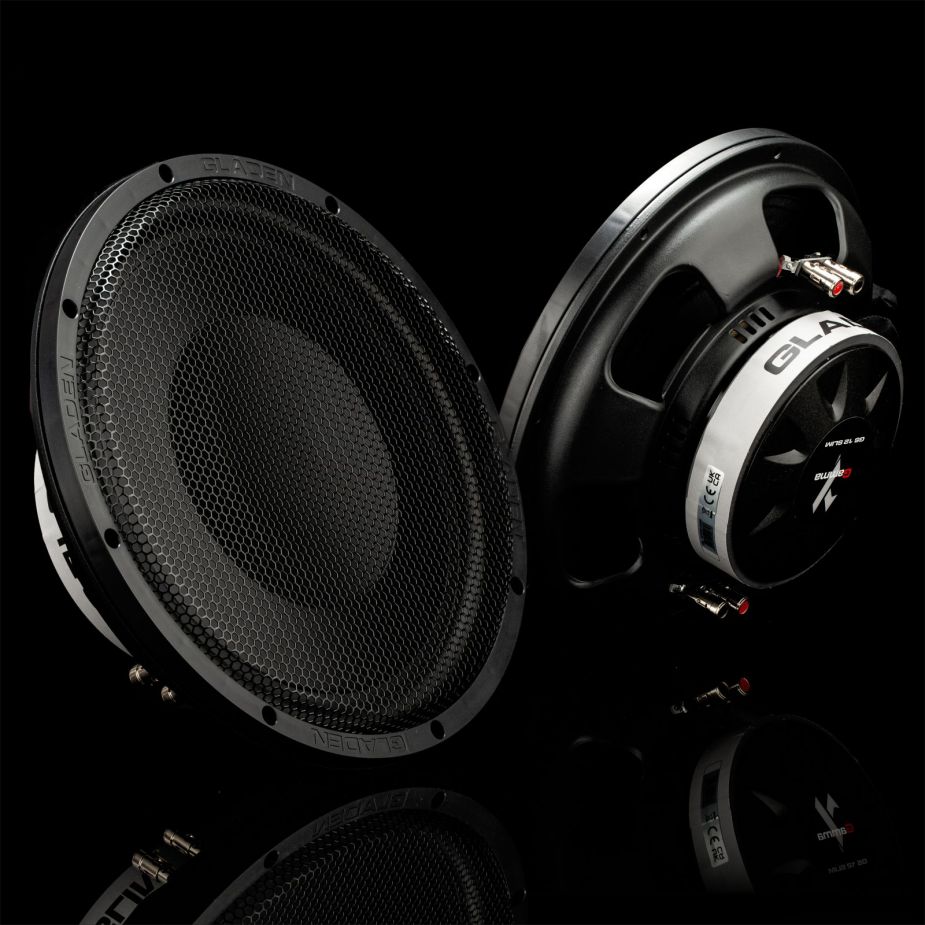

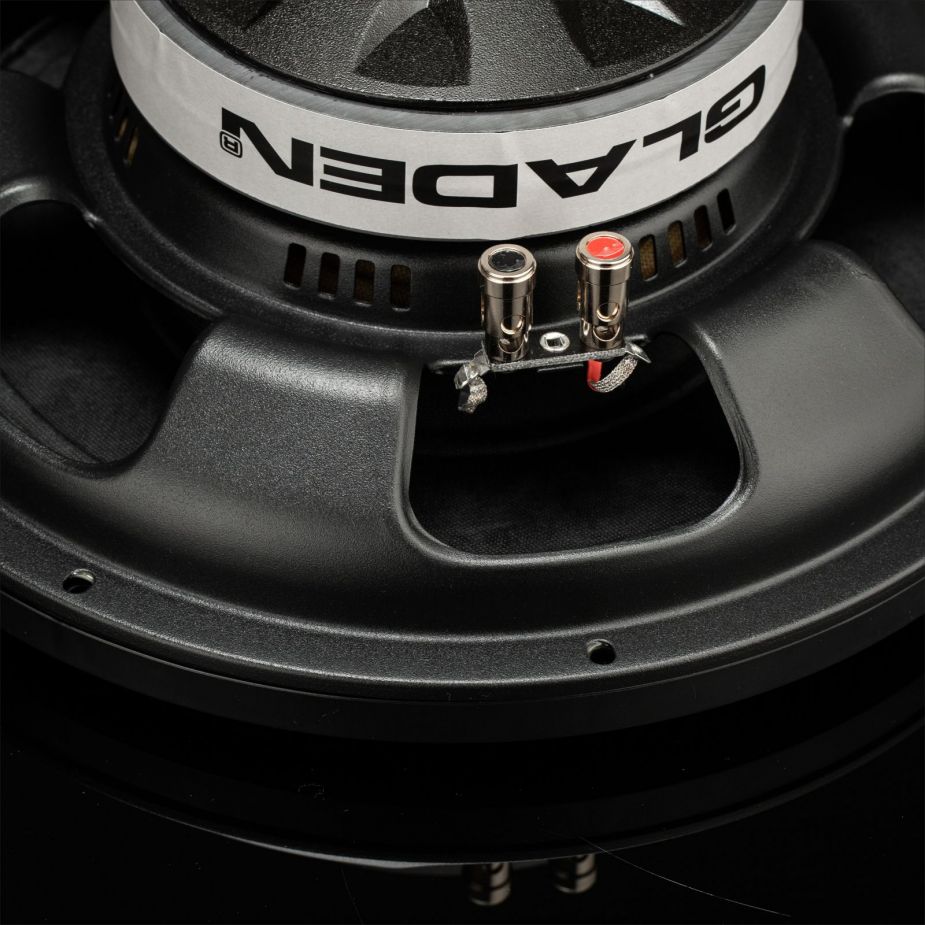

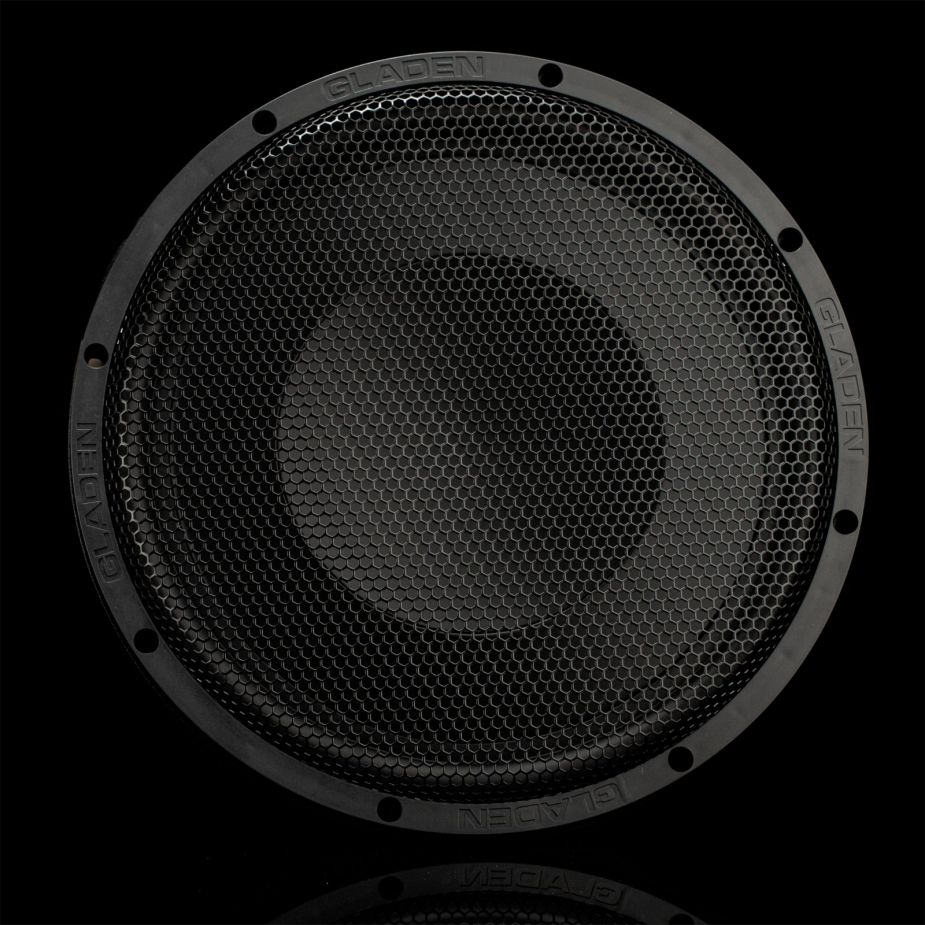

GLADEN GS12-SLIM
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 314 mm |
| Resonance | 26.5 Hz |
| Q factor | 0.45 |
| Sensitivity | 85.1 dB |
| Program power | 650 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 26.5Hz
- Mechanical quality factor QMS 5.64
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.45
Large signal parameters
- Power handling P 500W
- Program power Pmax 650W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 2.54mH
- VC Diameter 63.5mm
Magnet
- Force factor (in series) Bl 11.2N/A
- Motor constant Bl/√RE 5.92N/√W
- Diameter 155mm
Diaphragm
- Effective diameter 265mm
- Effective area SD 552cm²
- Moving mass (including air load) MMS 184g
- Moving mass MMD 175g
Suspensions
- Stiffness KMS 5.08N/mm
- Compliance CMS 197µm/N
- Equivalent volume to the compliance VAS 61.5L
- Mechanical resistance RMS 5.42N·s/m
Dimensions
- Nominal diameter 12″
- 314mm
- Overall diameter 314mm
- Baffle cutout diameter 285mm
- Mounting depth 100mm
- Volume occupied by the driver (estimated) 2.6L
