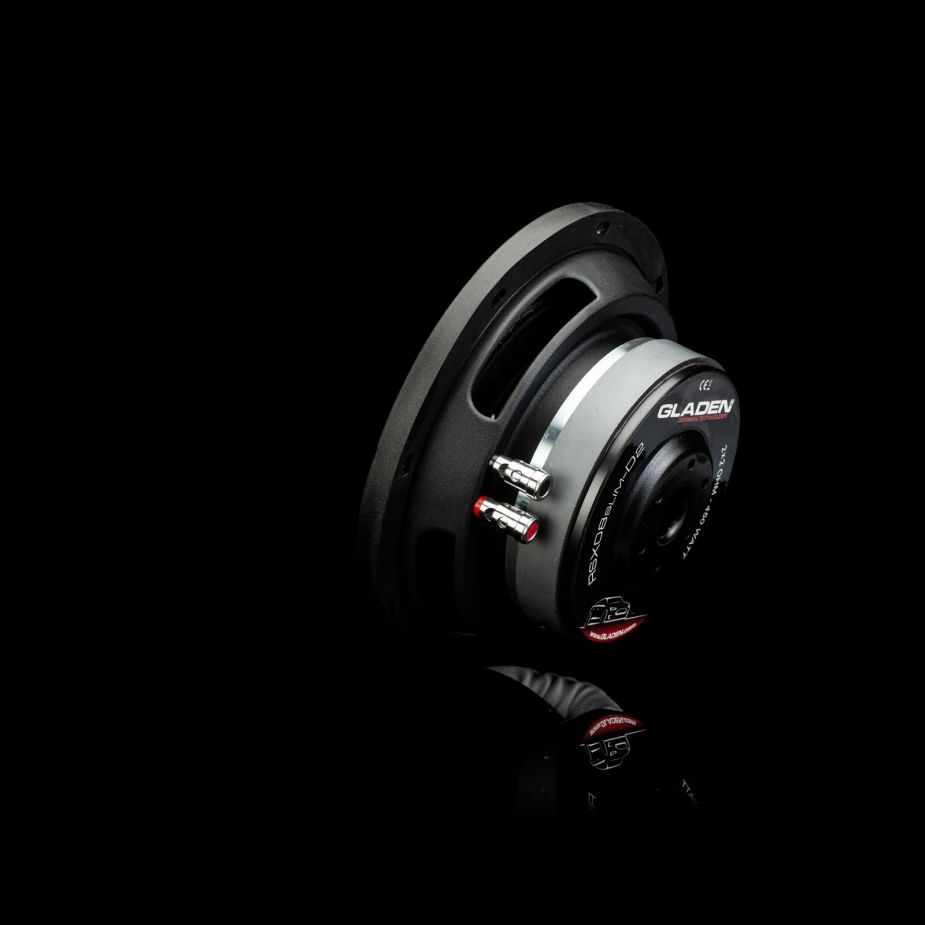

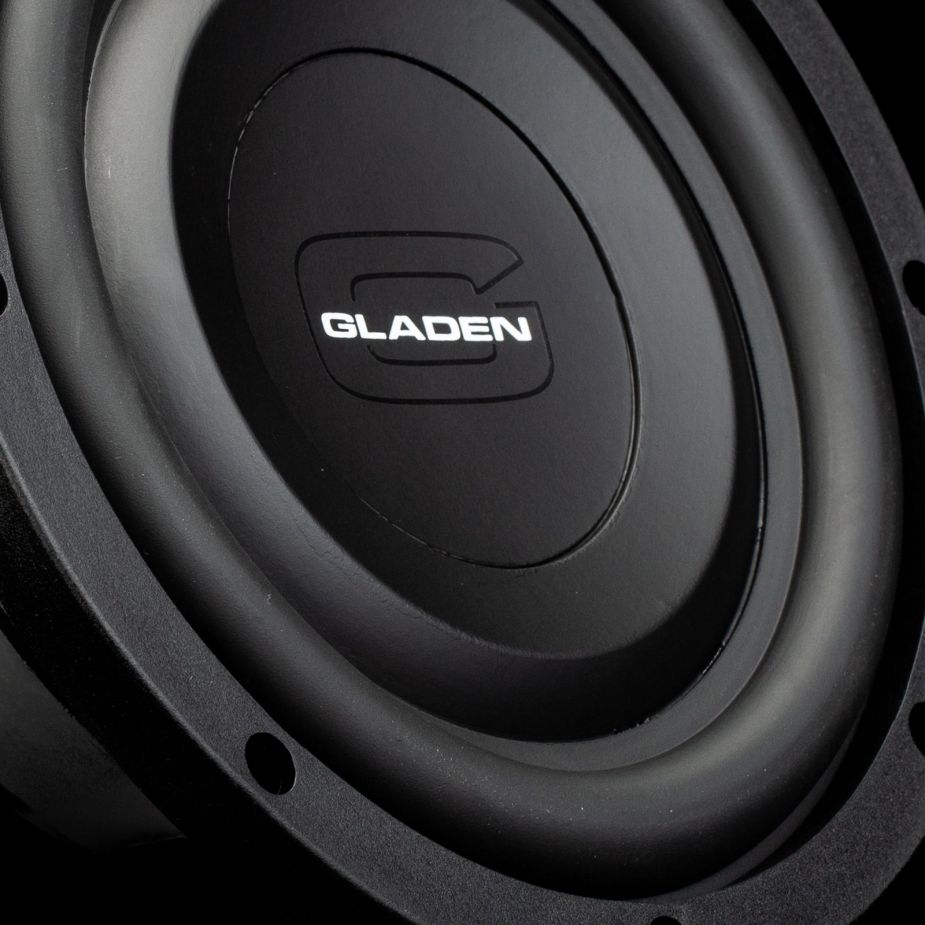

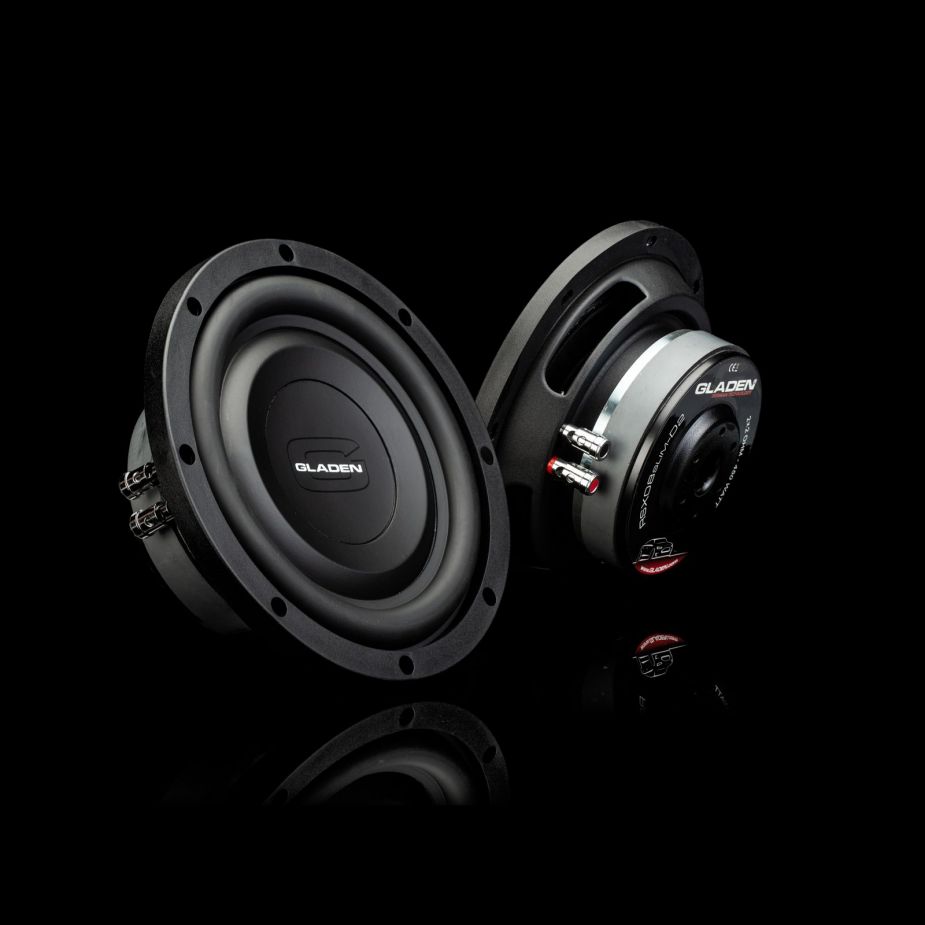

GLADEN RS-X 08 SLIM D2
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 214 mm |
| Resonance | 44 Hz |
| Q factor | 0.58 |
| Sensitivity | 87.5 dB |
| Linear excursion | ± 8 mm |
| Program power | 450 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 44Hz
- Mechanical quality factor QMS 17.40
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 8mm
- Air volume displaced at xmax VD 168cm³
- Power handling P 225W
- Program power Pmax 450W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series, estimated) LE 1.41mH
Magnet
- Force factor (in series) Bl 15.4N/A
- Motor constant Bl/√RE 5.44N/√W
Diaphragm
- Effective diameter 164mm
- Effective area SD 210cm²
- Moving mass (including air load) MMS 64g
- Moving mass MMD 61.7g
Suspensions
- Stiffness KMS 4.93N/mm
- Compliance CMS 203µm/N
- Equivalent volume to the compliance VAS 12.7L
- Mechanical resistance RMS 1.02N·s/m
Dimensions
- Nominal diameter 8″
- 214mm
- Overall diameter 214mm
- Baffle cutout diameter 179mm
- Mounting depth 75mm
- Volume occupied by the driver (estimated) 0.98L
