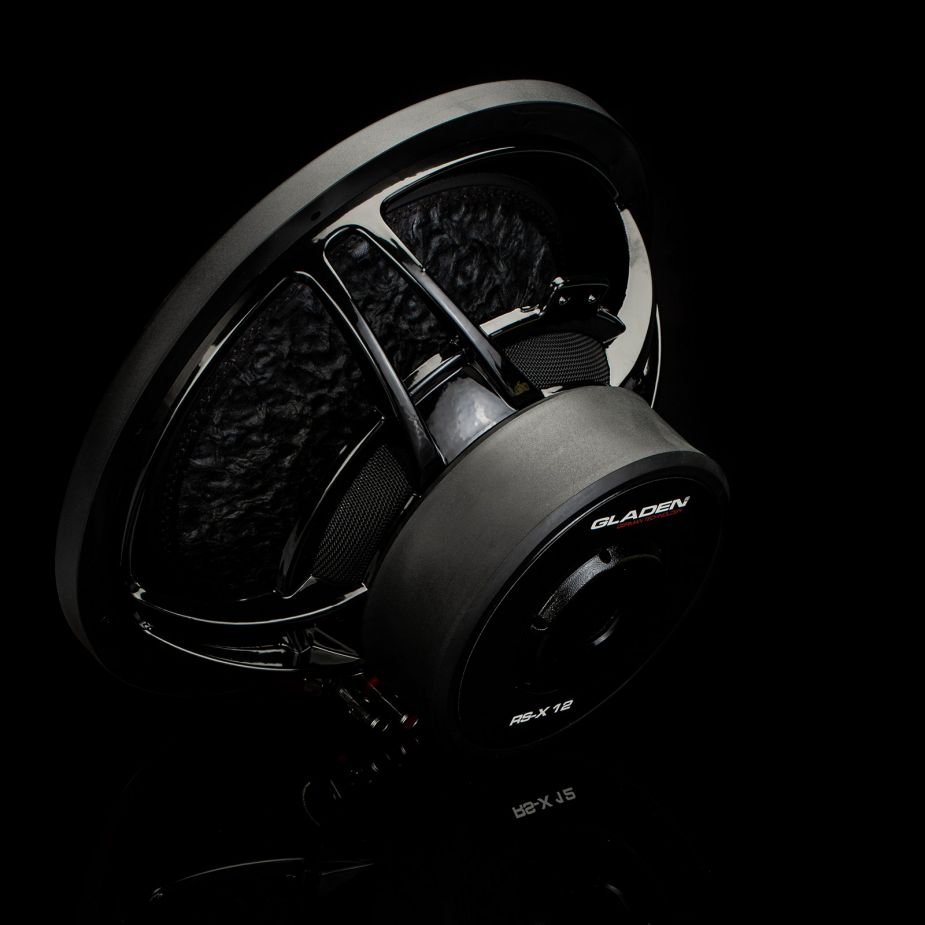

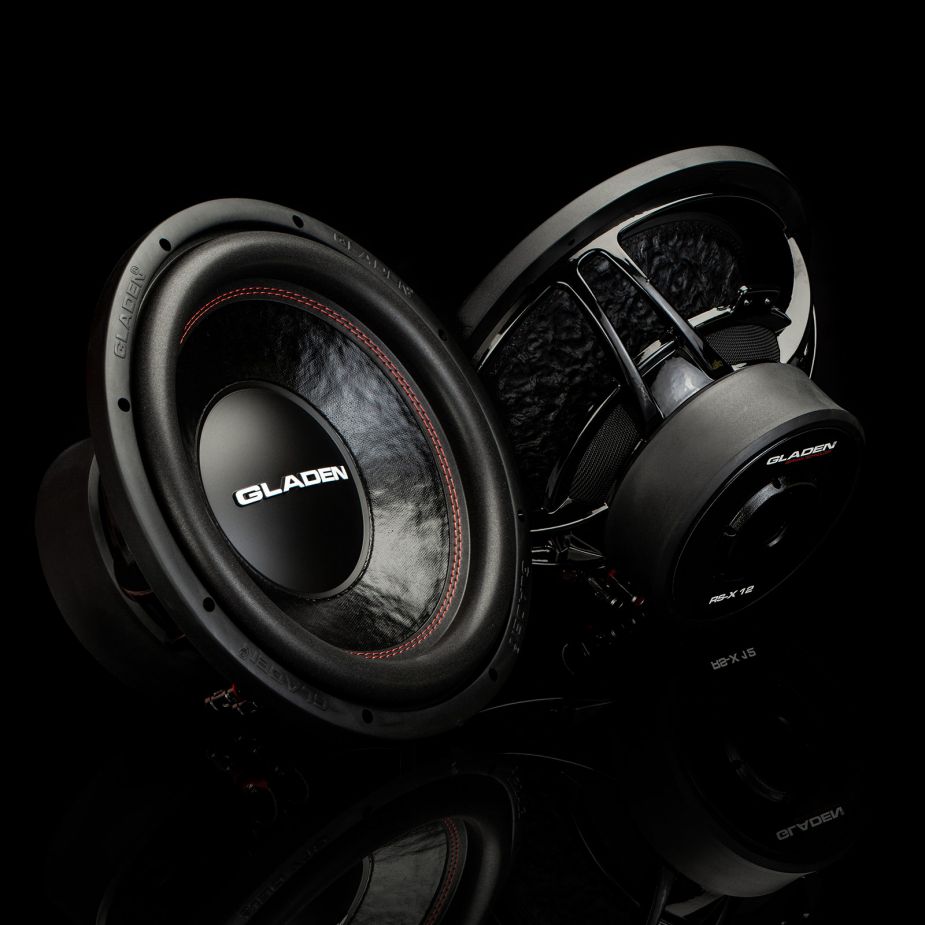

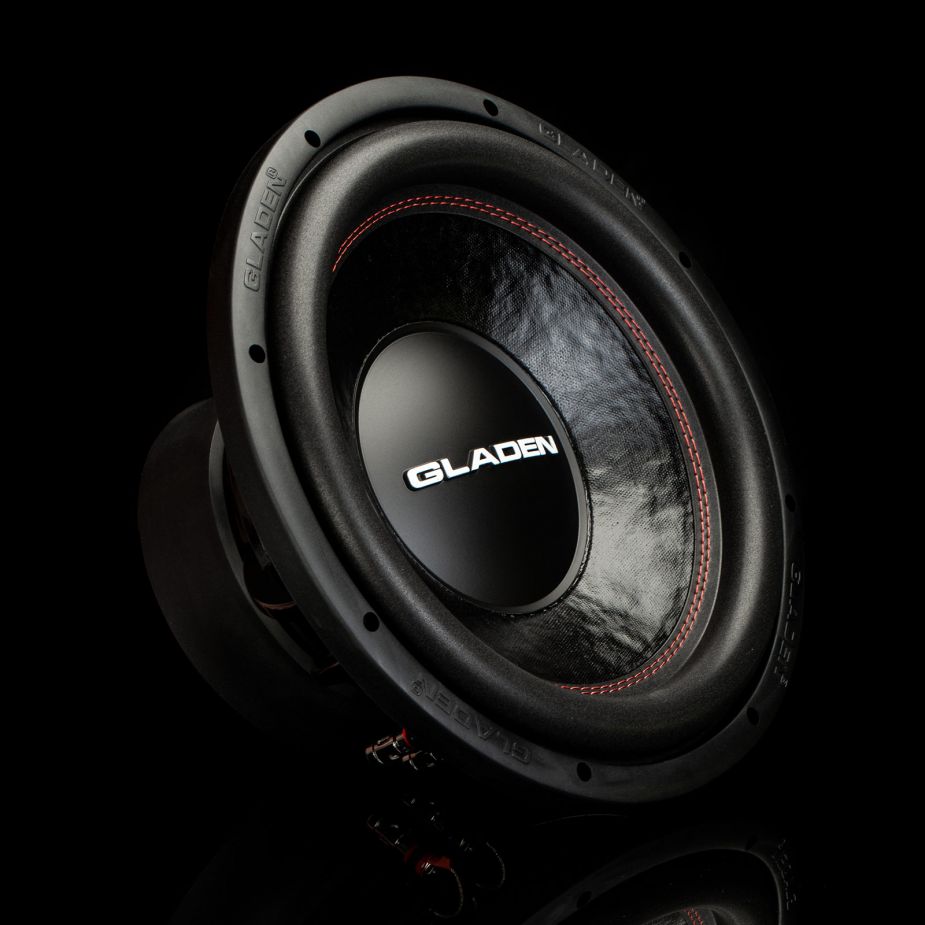

GLADEN RS-X 12
4Ω
Subwoofer
| Nominal diameter | 12″ / 317 mm |
| Resonance | 31.4 Hz |
| Q factor | 0.45 |
| Sensitivity | 87.6 dB |
| Program power | 750 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.4Hz
- Mechanical quality factor QMS 4.92
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.45
Large signal parameters
- Power handling P 500W
- Program power Pmax 750W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.7Ω
- Inductance (1kHz, estimated) LE 2.31mH
- VC Diameter 76.2mm
- Former material Aluminium
Magnet
- Force factor Bl 14.4N/A
- Motor constant Bl/√RE 7.46N/√W
- Diameter 185mm
Diaphragm
- Effective diameter 256mm
- Effective area SD 514cm²
- Moving mass (including air load) MMS 150g
- Moving mass MMD 141g
- Material Paper
Suspensions
- Stiffness KMS 5.88N/mm
- Compliance CMS 170µm/N
- Equivalent volume to the compliance VAS 63.6L
- Mechanical resistance RMS 6.54N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 317mm
- Overall diameter 317mm
- Baffle cutout diameter 284mm
- Mounting depth 148mm
- Volume occupied by the driver (estimated) 2.7L
- Frame material Aluminium
