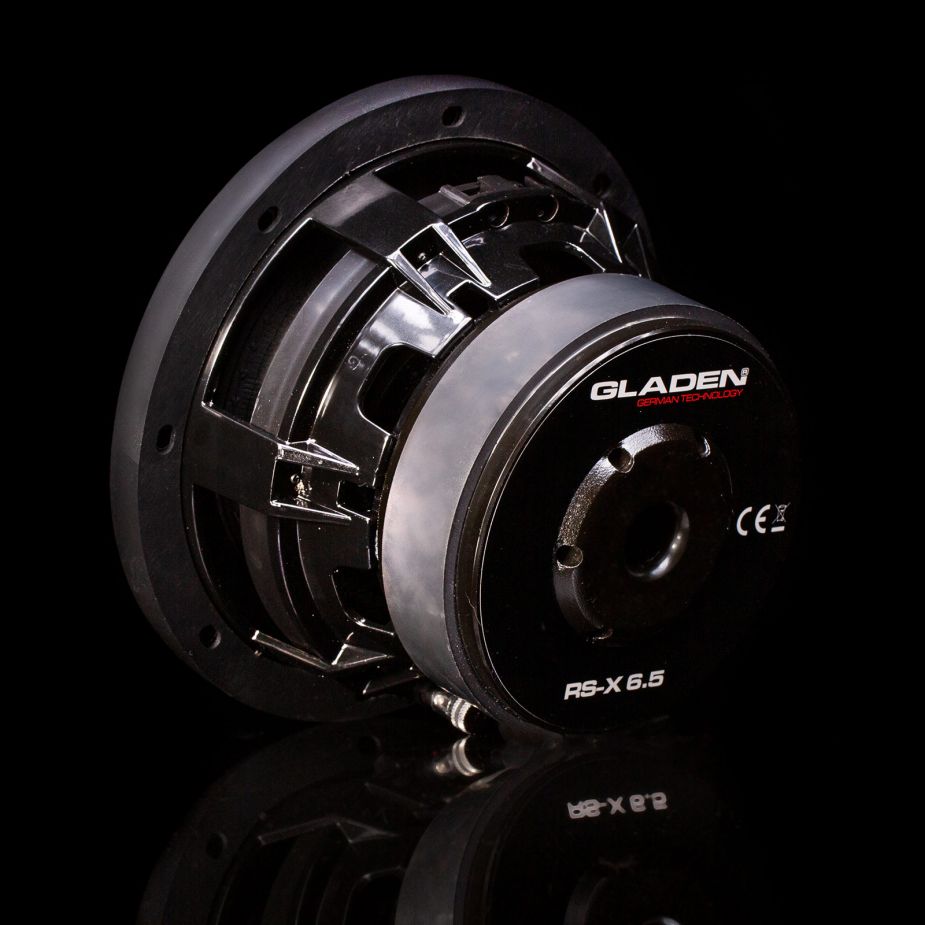

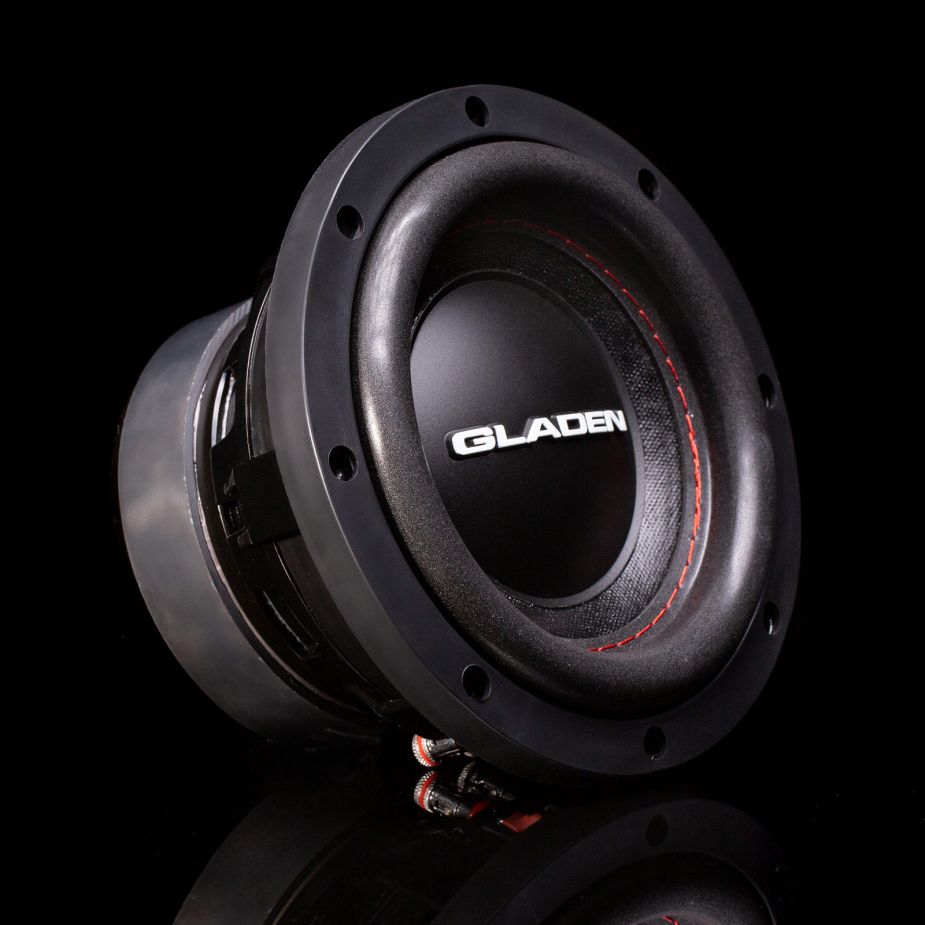

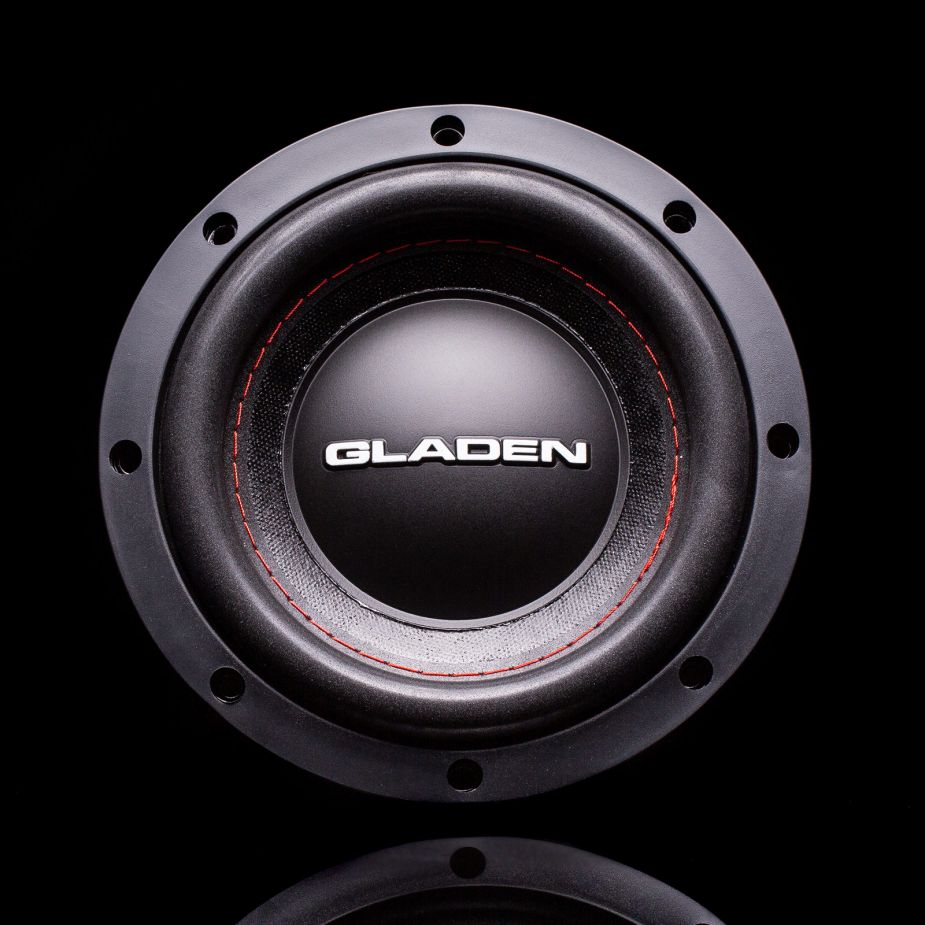

GLADEN RS-X 6.5
4Ω
Subwoofer
| Nominal diameter | 6.5″ / 180 mm |
| Resonance | 54.9 Hz |
| Q factor | 0.62 |
| Sensitivity | 82.1 dB |
| Program power | 350 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 54.9Hz
- Mechanical quality factor QMS 5.59
- Electrical quality factor QES 0.70
- Total quality factor QTS 0.62
Large signal parameters
- Power handling P 250W
- Program power Pmax 350W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz, estimated) LE 1.14mH
- VC Diameter 50.8mm
- Former material Aluminium
Magnet
- Force factor Bl 10.1N/A
- Motor constant Bl/√RE 5.56N/√W
- Diameter 120mm
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass (including air load) MMS 62.3g
- Moving mass MMD 61g
- Material Paper
Suspensions
- Stiffness KMS 7.41N/mm
- Compliance CMS 135µm/N
- Equivalent volume to the compliance VAS 3.88L
- Mechanical resistance RMS 2.5N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 6.5″
- 180mm
- Overall diameter 180mm
- Baffle cutout diameter 152mm
- Mounting depth 98mm
- Volume occupied by the driver (estimated) 0.62L
- Frame material Aluminium
