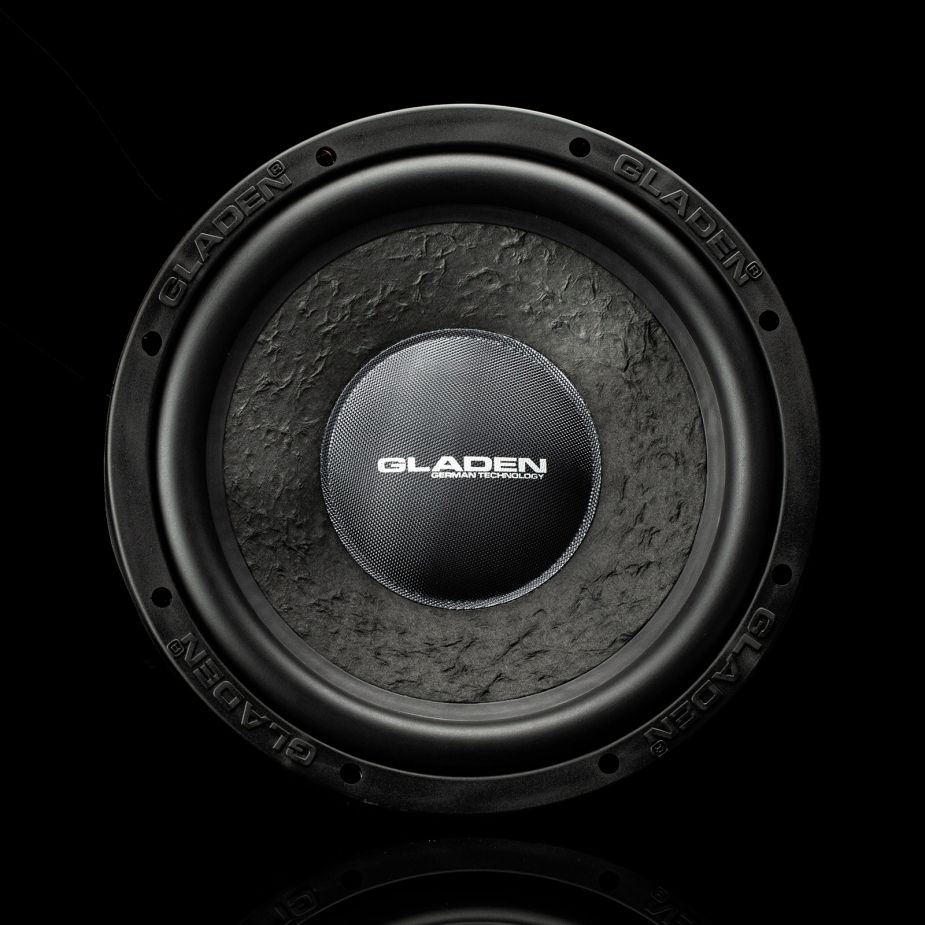

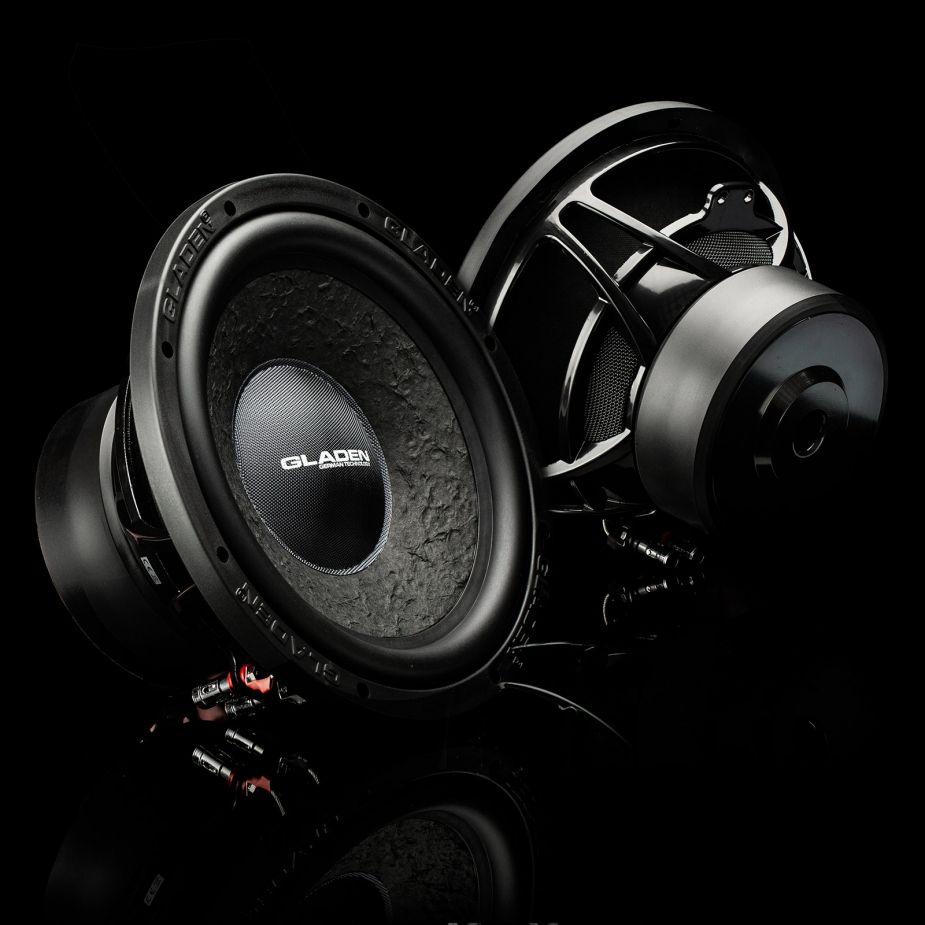

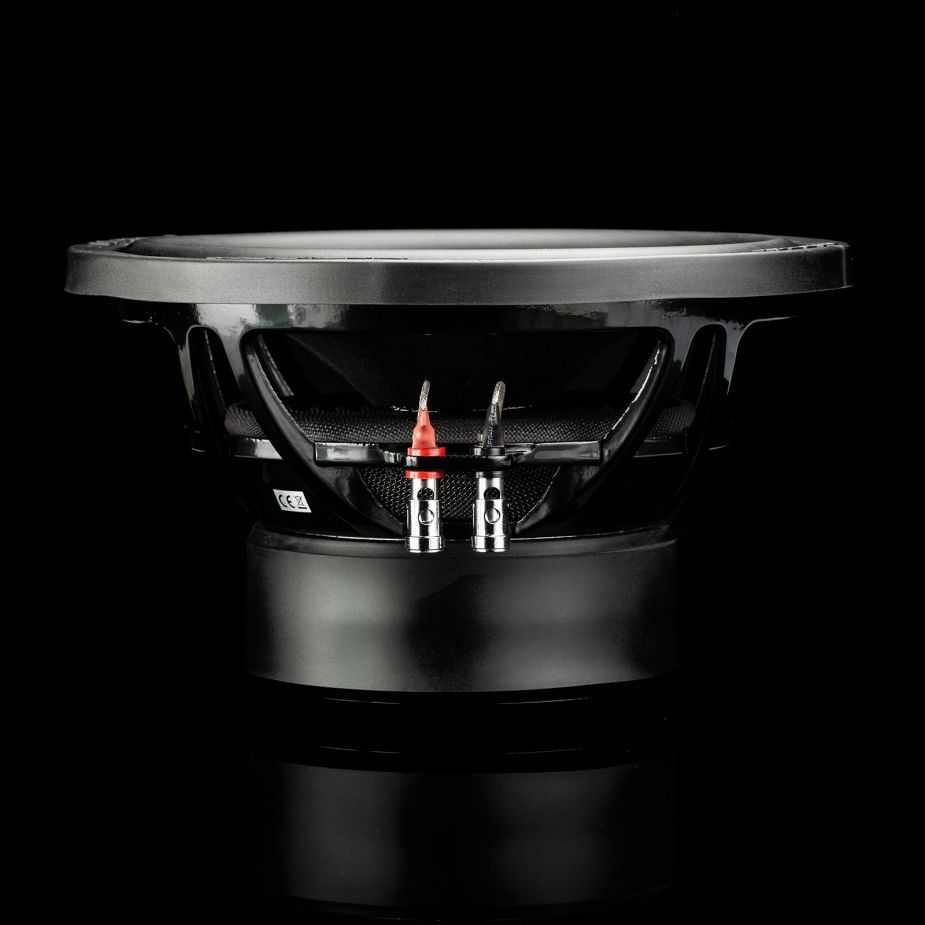

GLADEN RS 10
4Ω
Subwoofer
| Nominal diameter | 10″ / 260 mm |
| Resonance | 31.2 Hz |
| Q factor | 0.33 |
| Sensitivity | 88.3 dB |
| Program power | 375 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.2Hz
- Mechanical quality factor QMS 5.64
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.33
Large signal parameters
- Power handling P 250W
- Program power Pmax 375W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz, estimated) LE 1.62mH
- VC Diameter 50.8mm
- Former material Aluminium
Magnet
- Force factor Bl 14.1N/A
- Motor constant Bl/√RE 7.54N/√W
- Diameter 147mm
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass (including air load) MMS 96.4g
- Moving mass MMD 91.4g
- Material Paper
Suspensions
- Stiffness KMS 4N/mm
- Compliance CMS 250µm/N
- Equivalent volume to the compliance VAS 51L
- Mechanical resistance RMS 5.1N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 260mm
- Overall diameter 260mm
- Baffle cutout diameter 236mm
- Mounting depth 152mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Aluminium
