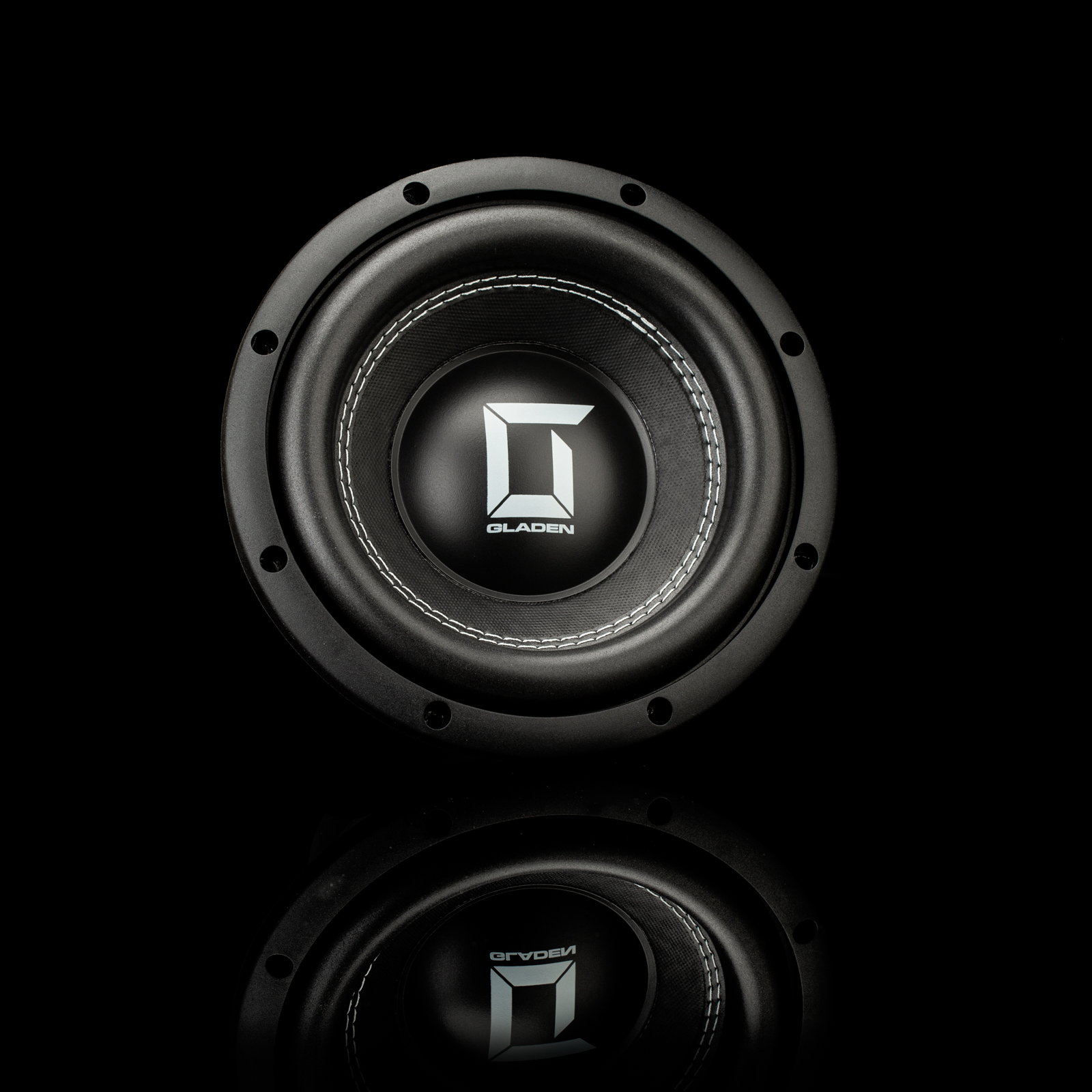

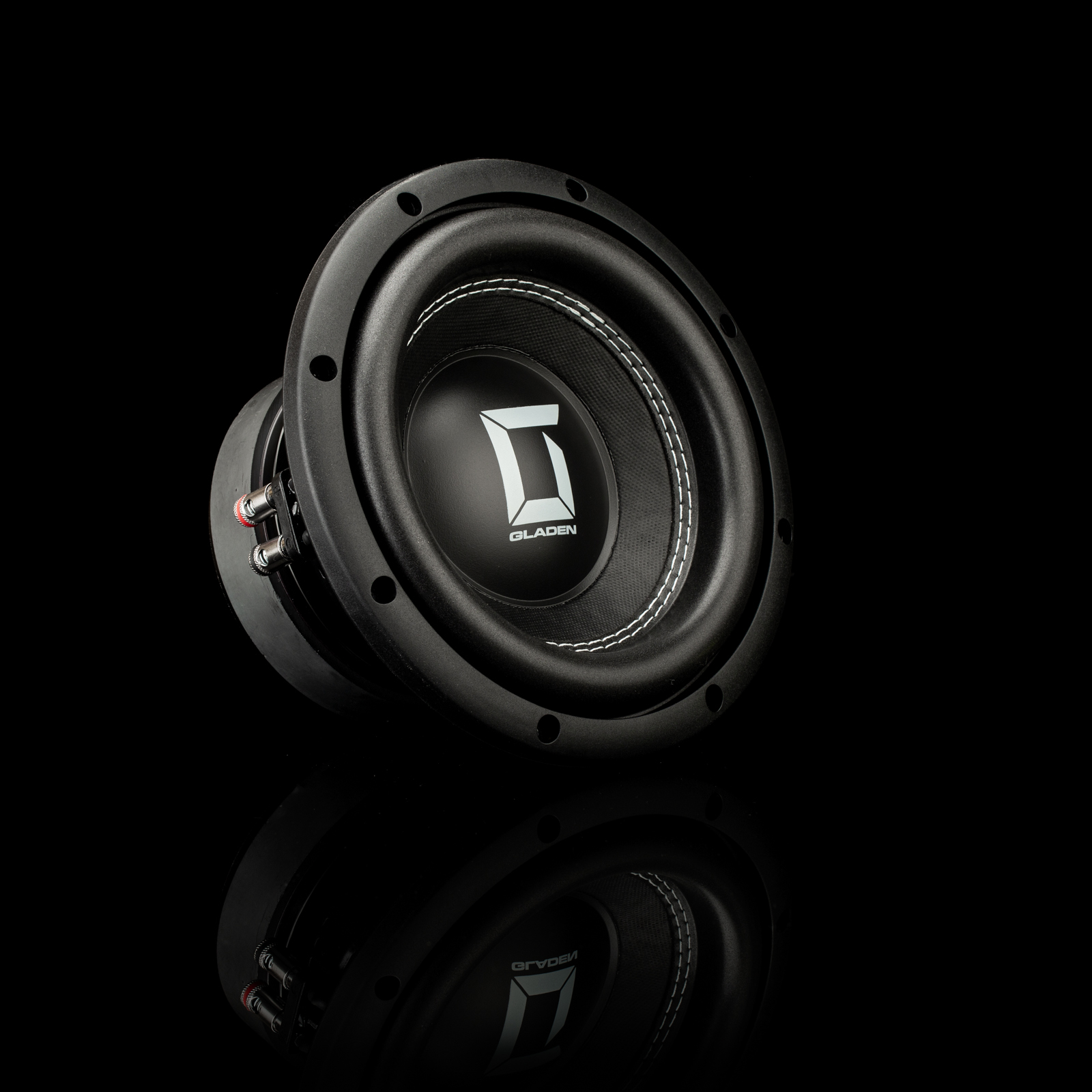

GLADEN SIGMA SSW08
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 214 mm |
| Resonance | 57 Hz |
| Q factor | 0.50 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 8.5 mm |
| Program power | 700 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 57Hz
- Mechanical quality factor QMS 7.00
- Electrical quality factor QES 0.54
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Air volume displaced at xmax VD 171cm³
- Power handling P 350W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 1.82mH
- VC Diameter 50.8mm
Magnet
- Force factor (in series) Bl 15.8N/A
- Motor constant Bl/√RE 8.33N/√W
- Diameter 134mm
Diaphragm
- Effective diameter 160mm
- Effective area SD 201cm²
- Moving mass (including air load) MMS 109g
- Moving mass MMD 107g
Suspensions
- Stiffness KMS 14.3N/mm
- Compliance CMS 70µm/N
- Equivalent volume to the compliance VAS 3.99L
- Mechanical resistance RMS 5.59N·s/m
Dimensions
- Nominal diameter 8″
- 214mm
- Overall diameter 214mm
- Baffle cutout diameter 183mm
- Mounting depth 120mm
- Volume occupied by the driver (estimated) 0.98L
