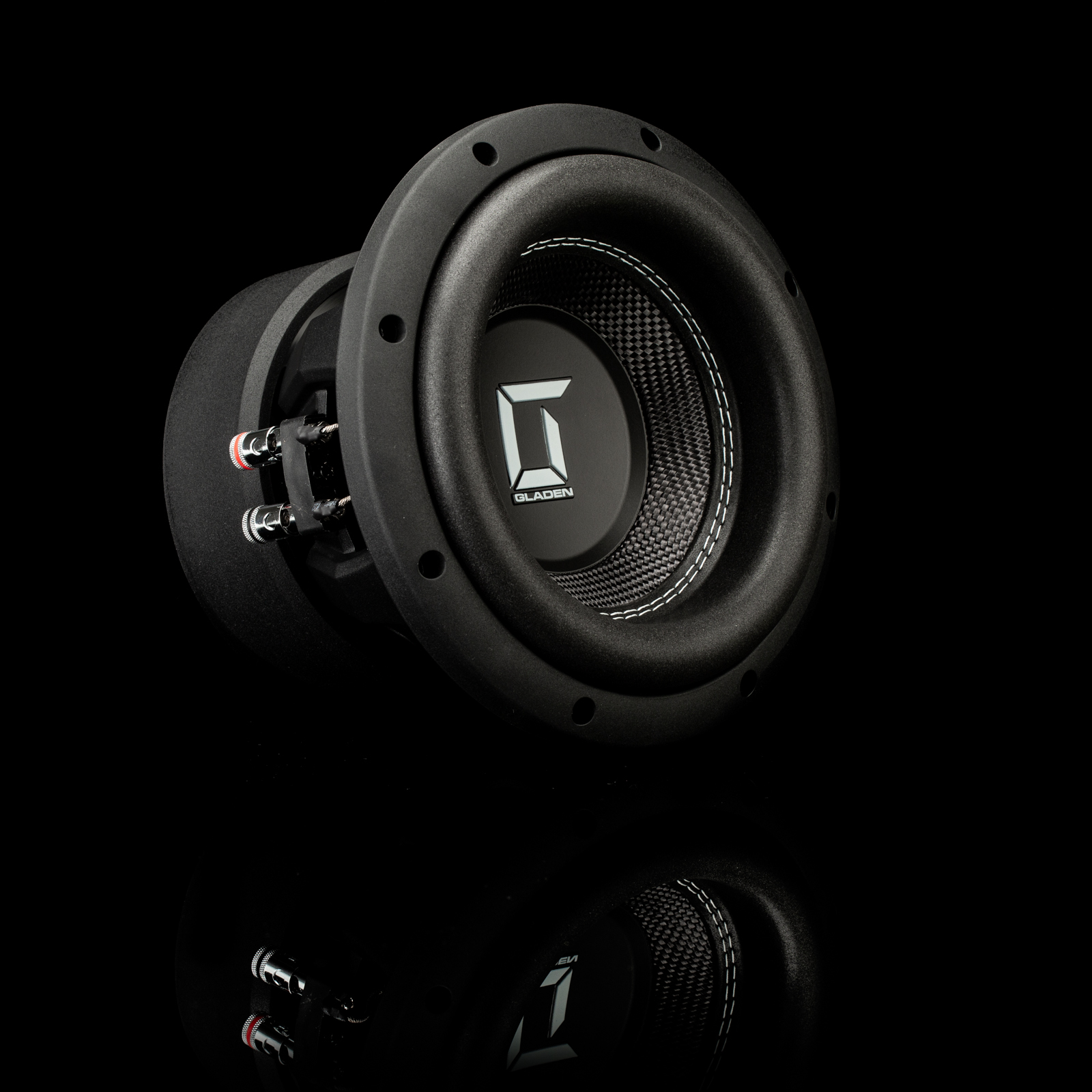

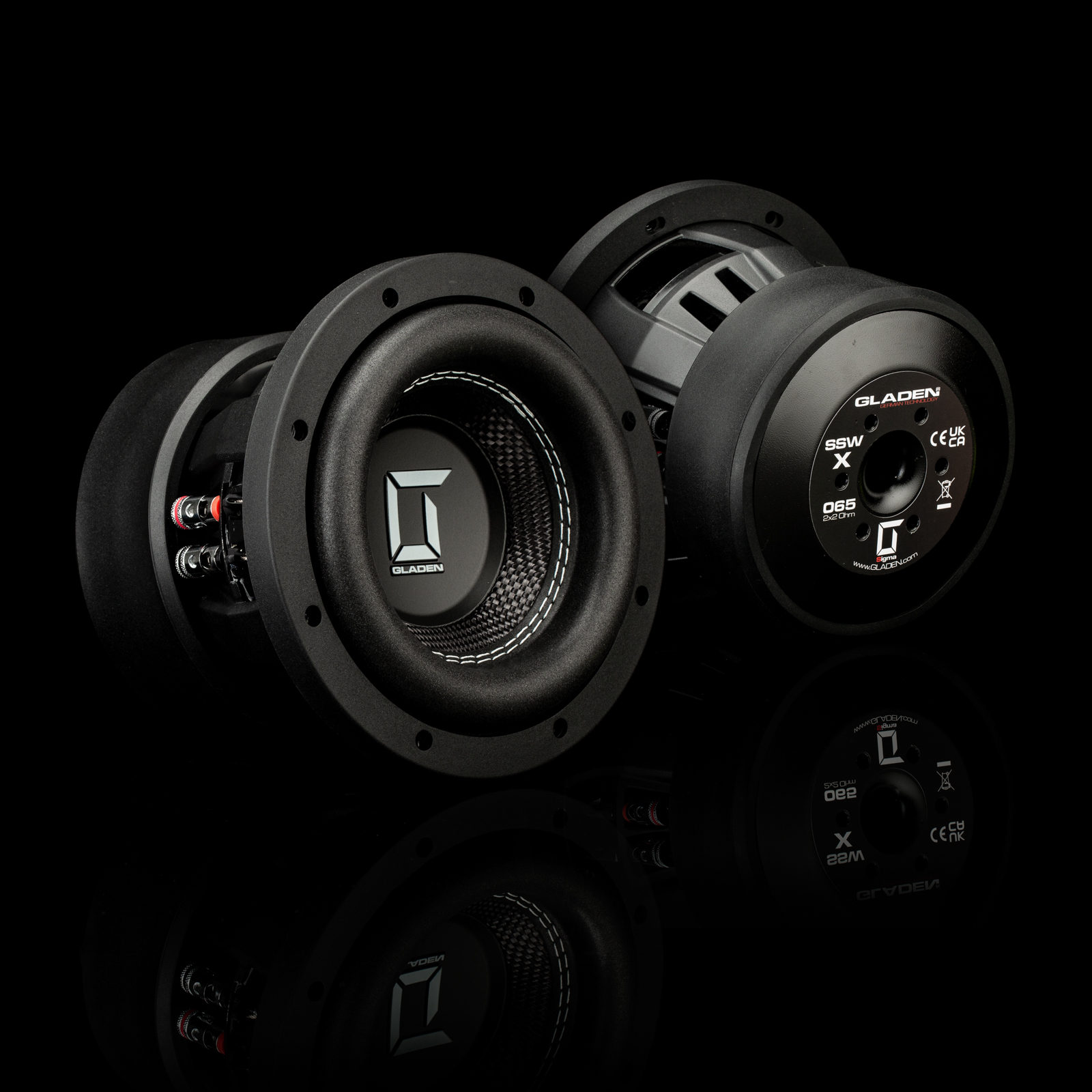

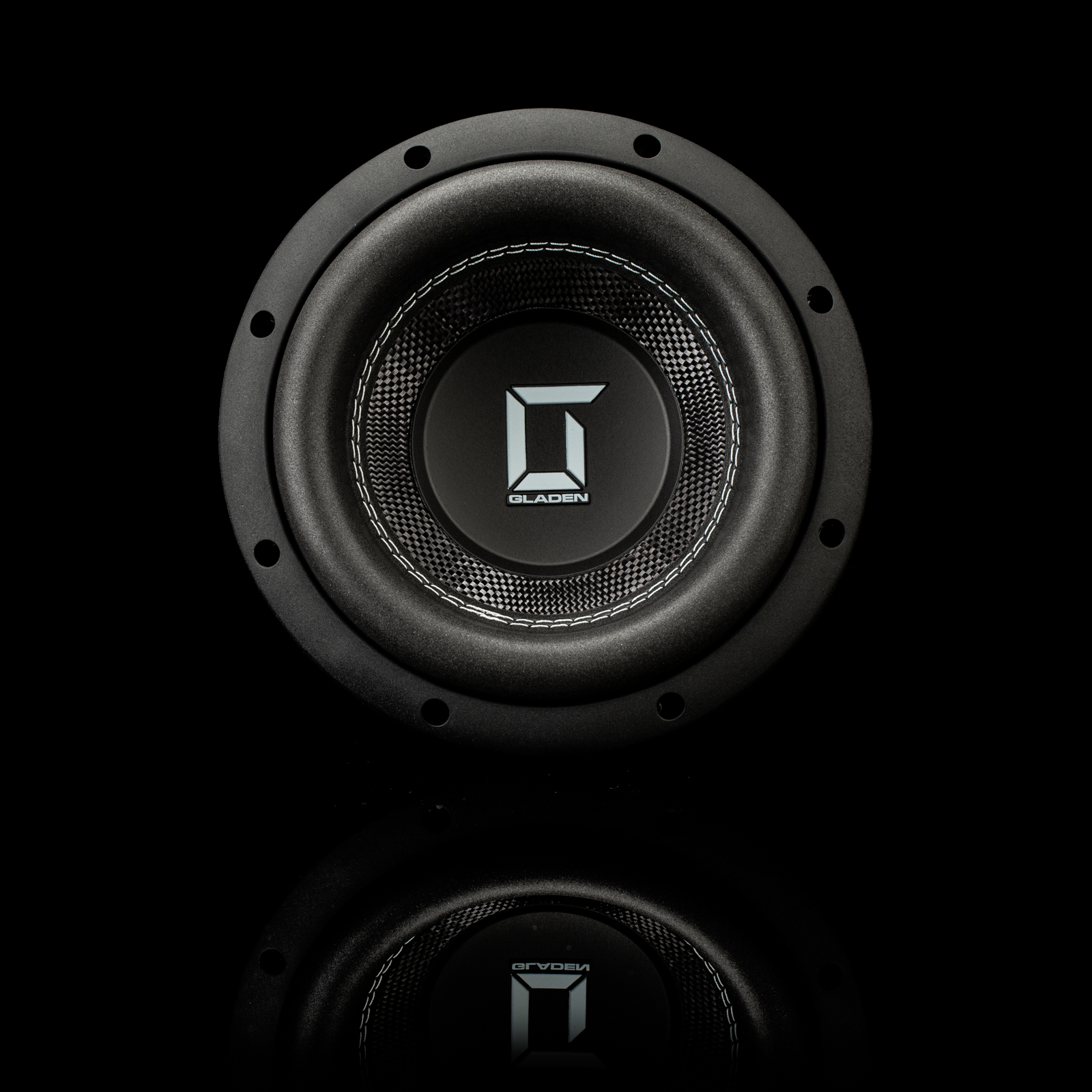

GLADEN SIGMA SSWX065
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 182 mm |
| Resonance | 52 Hz |
| Q factor | 0.45 |
| Sensitivity | 80.1 dB |
| Linear excursion | ± 11 mm |
| Program power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 52Hz
- Mechanical quality factor QMS 6.29
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Air volume displaced at xmax VD 139cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.7Ω
- Inductance (1kHz, in series, estimated) LE 1.81mH
- VC Diameter 44.5mm
Magnet
- Force factor (in series) Bl 16.4N/A
- Motor constant Bl/√RE 8.54N/√W
- Diameter 145mm
Diaphragm
- Effective diameter 127mm
- Effective area SD 127cm²
- Moving mass (including air load) MMS 105g
- Moving mass MMD 104g
Suspensions
- Stiffness KMS 11.1N/mm
- Compliance CMS 90µm/N
- Equivalent volume to the compliance VAS 2.05L
- Mechanical resistance RMS 5.44N·s/m
Dimensions
- Nominal diameter 6.5″
- 182mm
- Overall diameter 182mm
- Baffle cutout diameter 154mm
- Mounting depth 129mm
- Volume occupied by the driver (estimated) 0.64L
