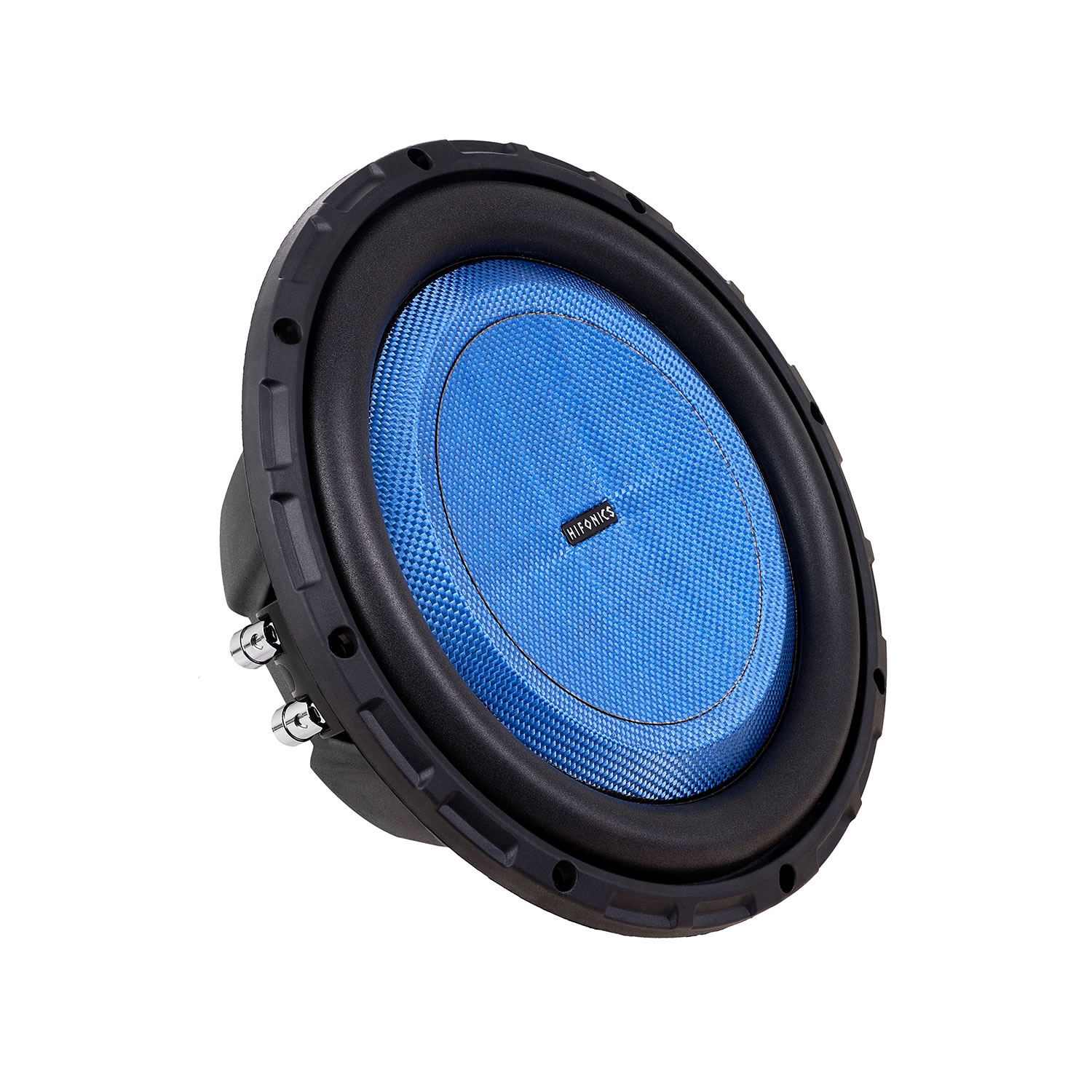

HiFonics ELITE HEW10D4S
2x4Ω
Shallow Subwoofer
| Nominal diameter | 10″ / 260 mm |
| Resonance | 39 Hz |
| Q factor | 0.88 |
| Sensitivity | 85.7 dB |
| Linear excursion | ± 8.7 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 7.20
- Electrical quality factor QES 1.00
- Total quality factor QTS 0.88
Large signal parameters
- Maximum linear excursion (one way) xmax 8.7mm
- Air volume displaced at xmax VD 299cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 3.12mH
Magnet
- Force factor (in series) Bl 12.6N/A
- Motor constant Bl/√RE 4.71N/√W
Diaphragm
- Effective diameter 209mm
- Effective area SD 343cm²
- Moving mass MMS 87.3g
- Moving mass (without air load) MMD 82.7g
Suspensions
- Stiffness KMS 5.21N/mm
- Compliance CMS 192µm/N
- Equivalent volume to the compliance VAS 34.9L
- Mechanical resistance RMS 2.97N·s/m
Dimensions
- Nominal diameter 10″
- 260mm
- Overall diameter 260mm
- Baffle cutout diameter 231mm
- Overall depth 93mm
- Flange thickness 17mm
- Mounting depth 76mm
- Volume occupied by the driver (estimated) 1.1L
