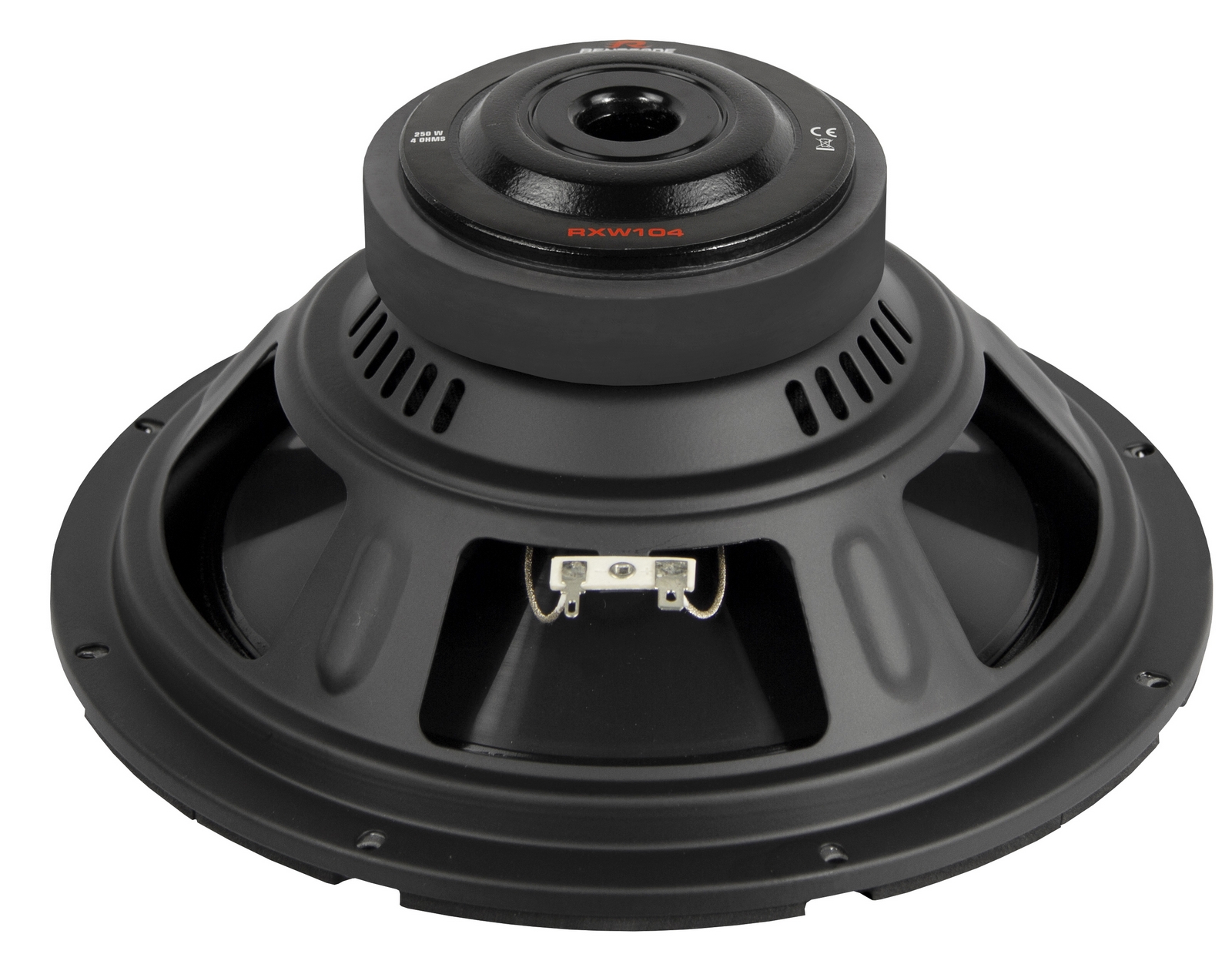

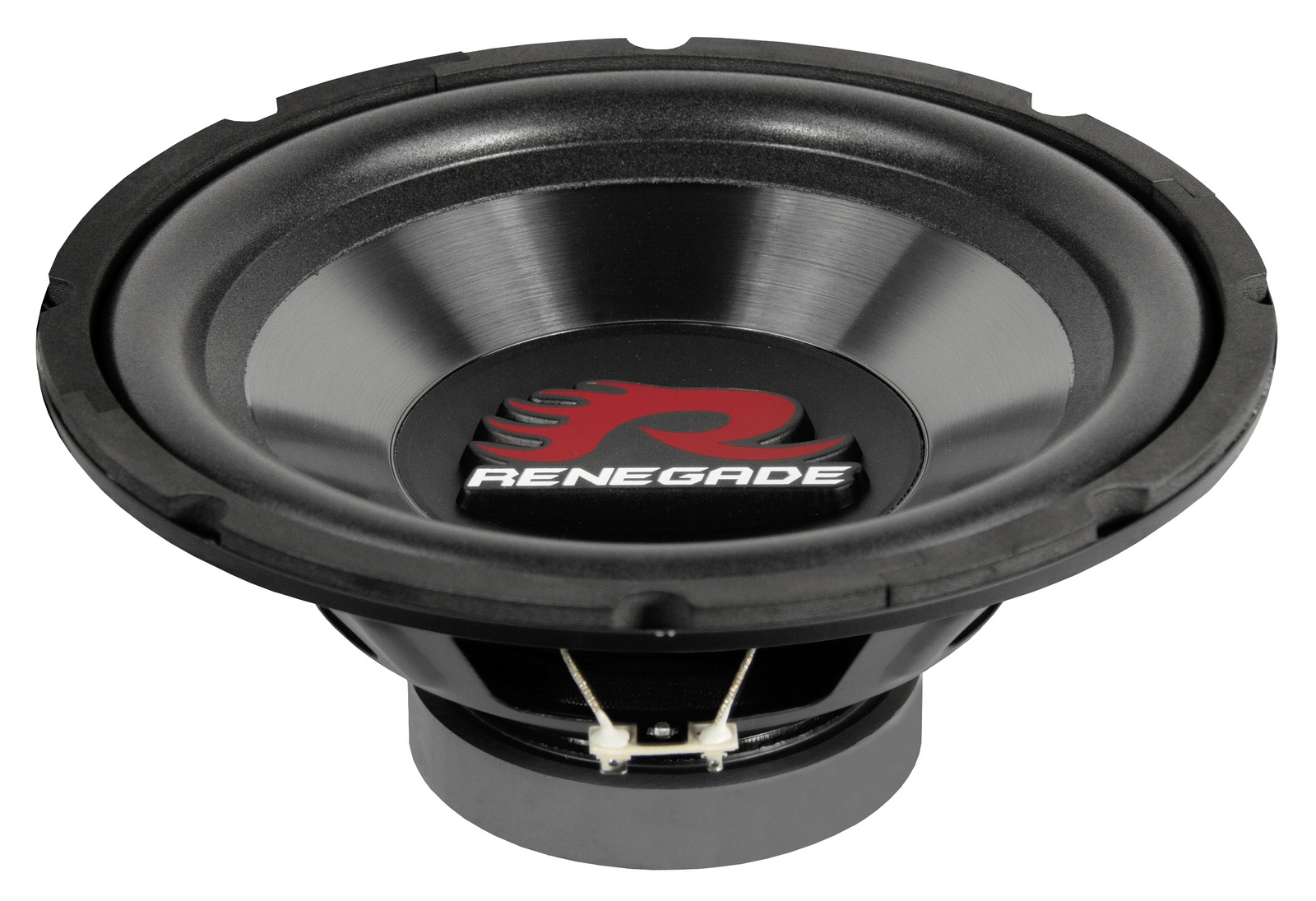

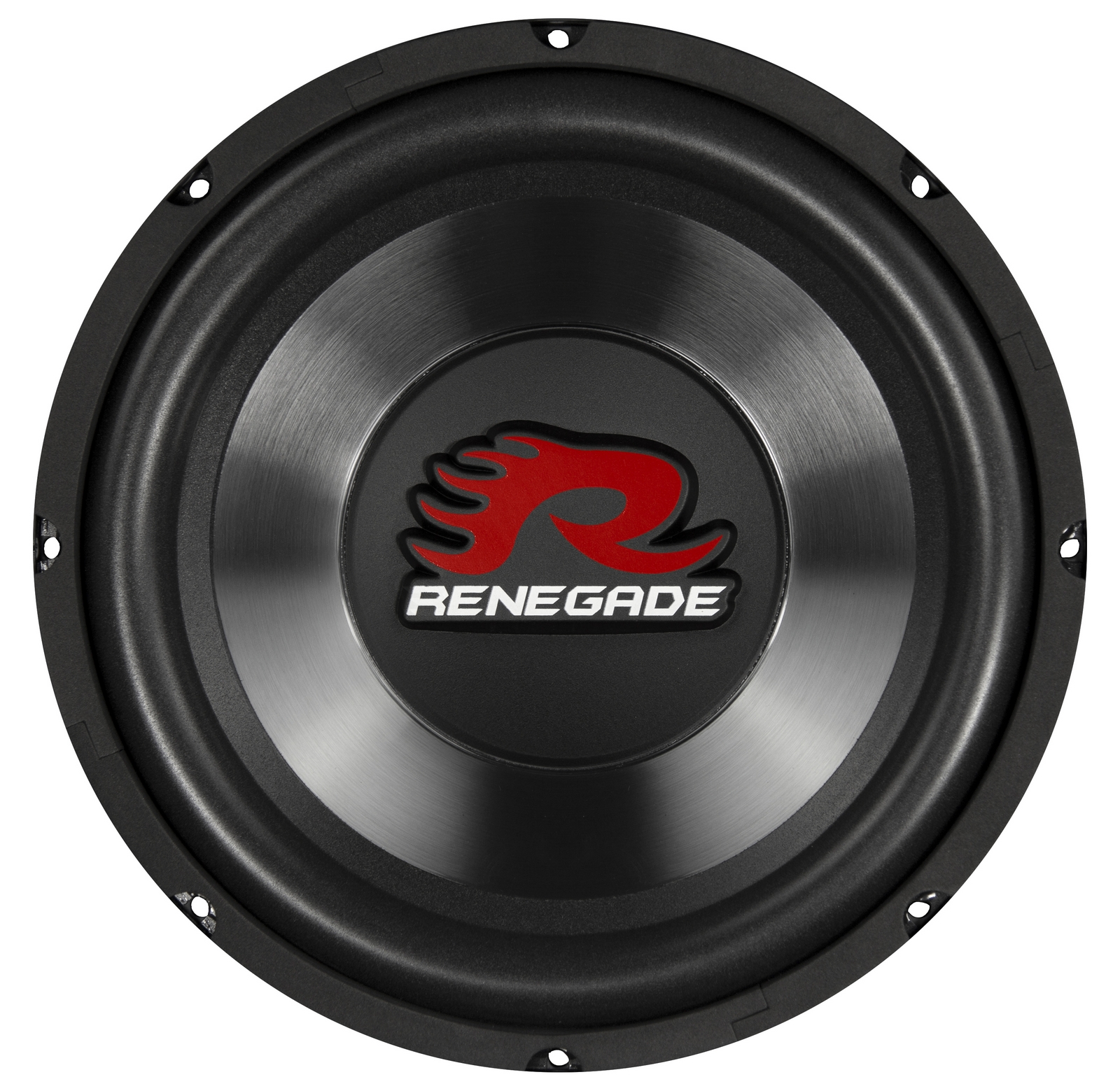

RENEGADE RXW104
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 35 Hz |
| Q factor | 0.65 |
| Sensitivity | 86 dB |
| Linear excursion | ± 6.5 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 6.90
- Electrical quality factor QES 0.72
- Total quality factor QTS 0.65
Large signal parameters
- Maximum linear excursion (one way) xmax 6.5mm
- Maximum excursion before damage xlim 13mm
- Air volume displaced at xmax VD 221cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz) LE 1.69mH
- VC Diameter 50mm
- Winding height HVC 19mm
- Former material Kapton
Magnet
- Force factor Bl 9.5N/A
- Motor constant Bl/√RE 5.31N/√W
- Diameter 110mm
- Height 20mm
- Weight 0.68kg
- Material Y25 Magnet
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass MMS 88.1g
- Moving mass (without air load) MMD 83.6g
- Material Polypropylene
Suspensions
- Stiffness KMS 4.46N/mm
- Compliance CMS 224µm/N
- Equivalent volume to the compliance VAS 38L
- Mechanical resistance RMS 2.81N·s/m
- Surround material Foam
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 254mm
- Baffle cutout diameter 228mm
- Mounting depth 107mm
- Volume occupied by the driver (estimated) 1.4L
- Net weight 3.2kg
- Frame material Steel
