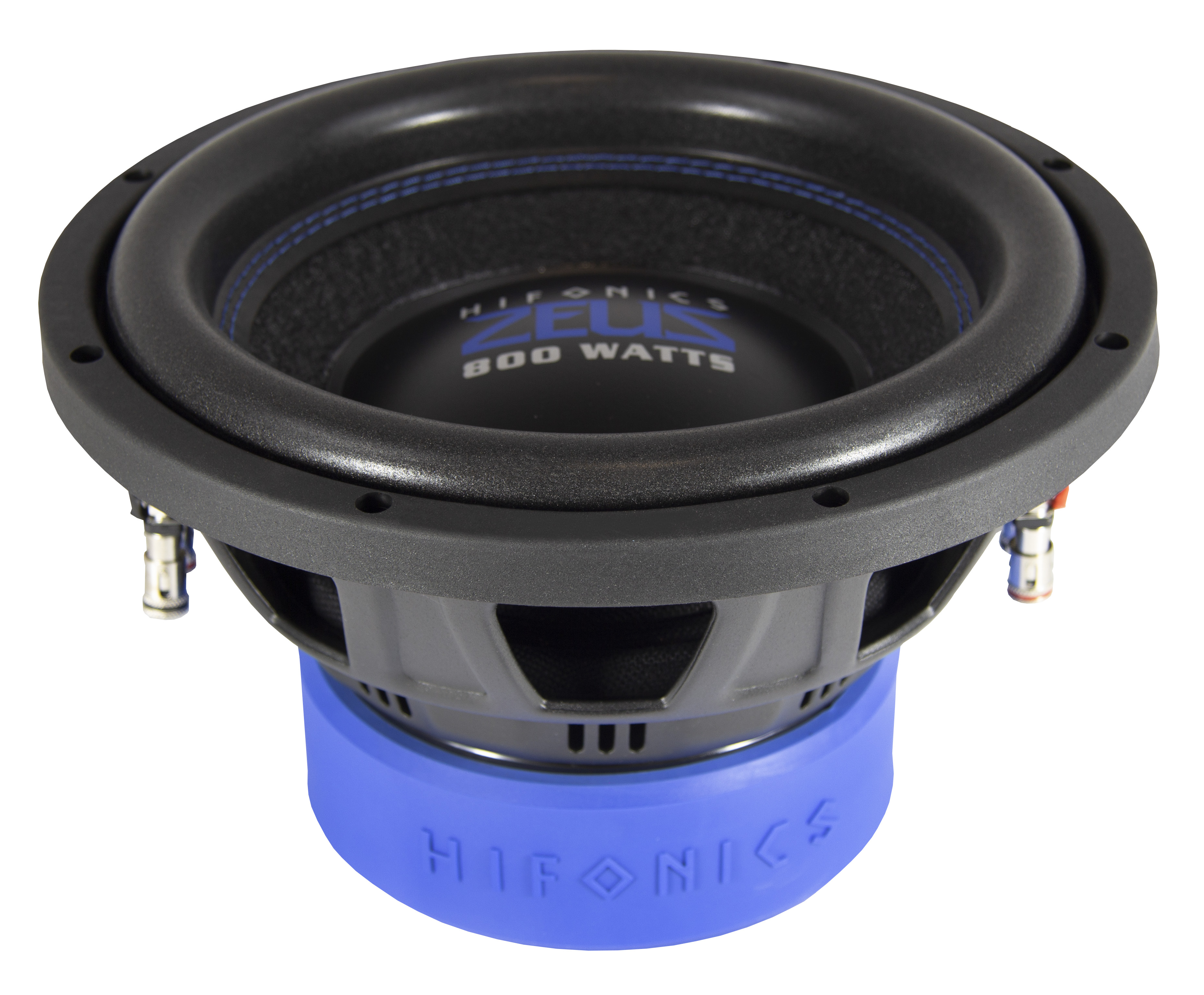

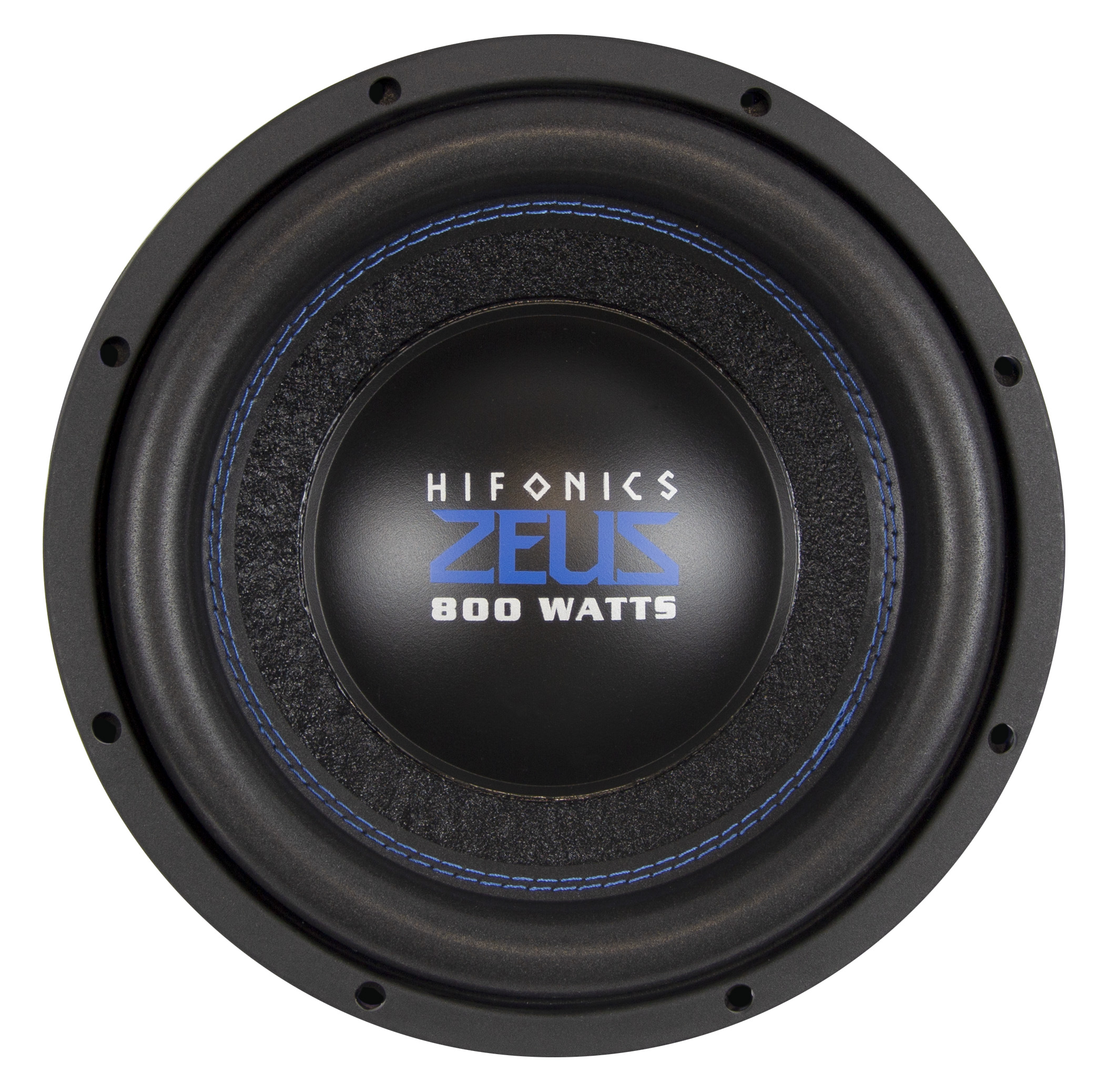

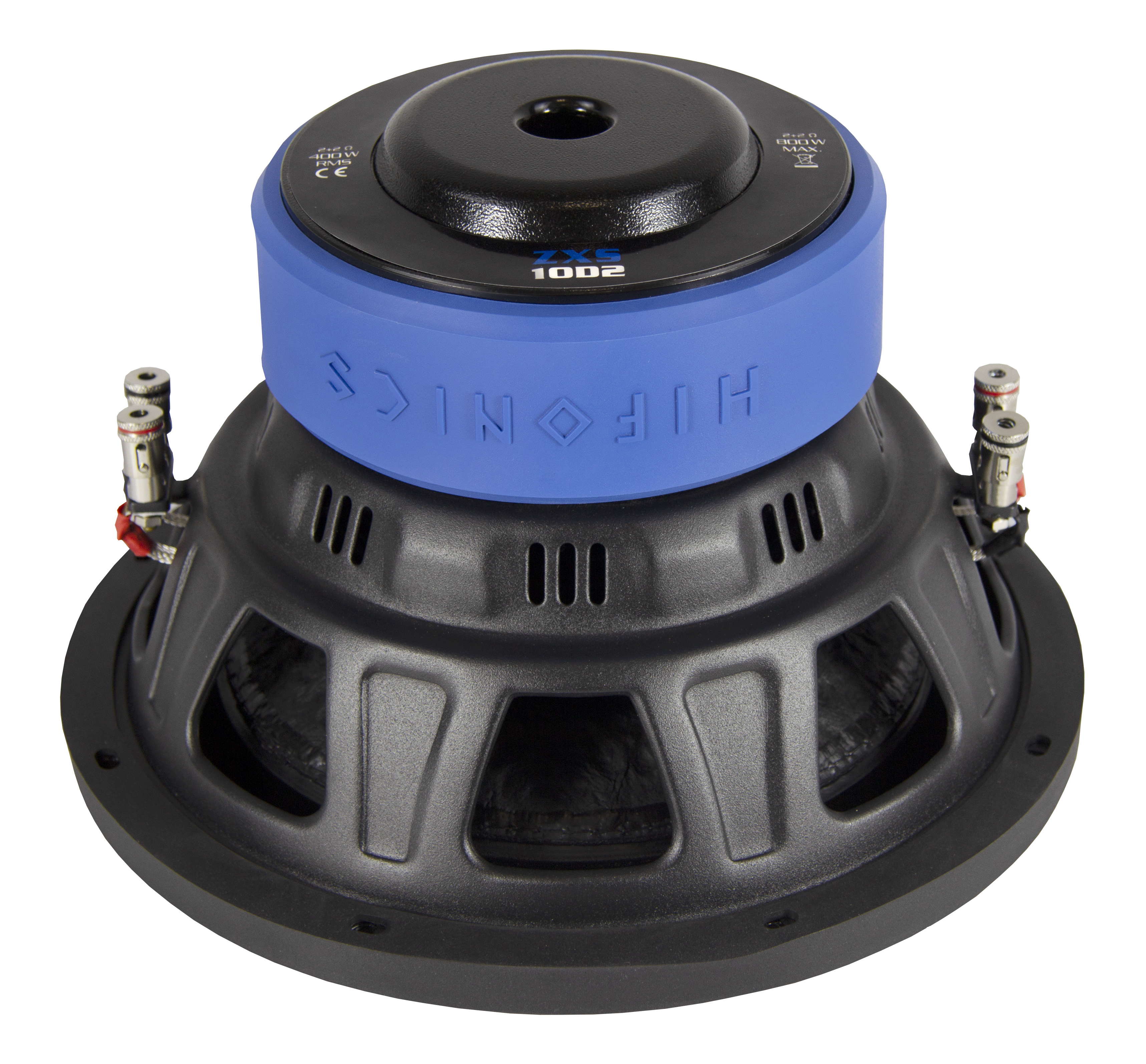

HiFonics ZEUS STREET ZXS10D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 26.5 Hz |
| Q factor | 0.51 |
| Sensitivity | 82.1 dB |
| Linear excursion | ± 14 mm |
| Program Power | 800 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 26.5Hz
- Mechanical quality factor QMS 3.29
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Maximum excursion before damage xlim 20mm
- Air volume displaced at xmax VD 470cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series, estimated) LE 2.78mH
- VC Diameter 64mm
- Winding height HVC 35mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 14.1N/A
- Motor constant Bl/√RE 7.05N/√W
- Diameter 145mm
- Height 40mm
- Weight 2.381kg
Diaphragm
- Effective diameter 207mm
- Effective area SD 336cm²
- Moving mass MMS 177g
- Moving mass (without air load) MMD 173g
- Material Non-pressed Paper Cone
Suspensions
- Stiffness KMS 4.97N/mm
- Compliance CMS 201µm/N
- Equivalent volume to the compliance VAS 32.2L
- Mechanical resistance RMS 8.96N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 260mm
- Baffle cutout diameter 228mm
- Mounting depth 150mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Steel
