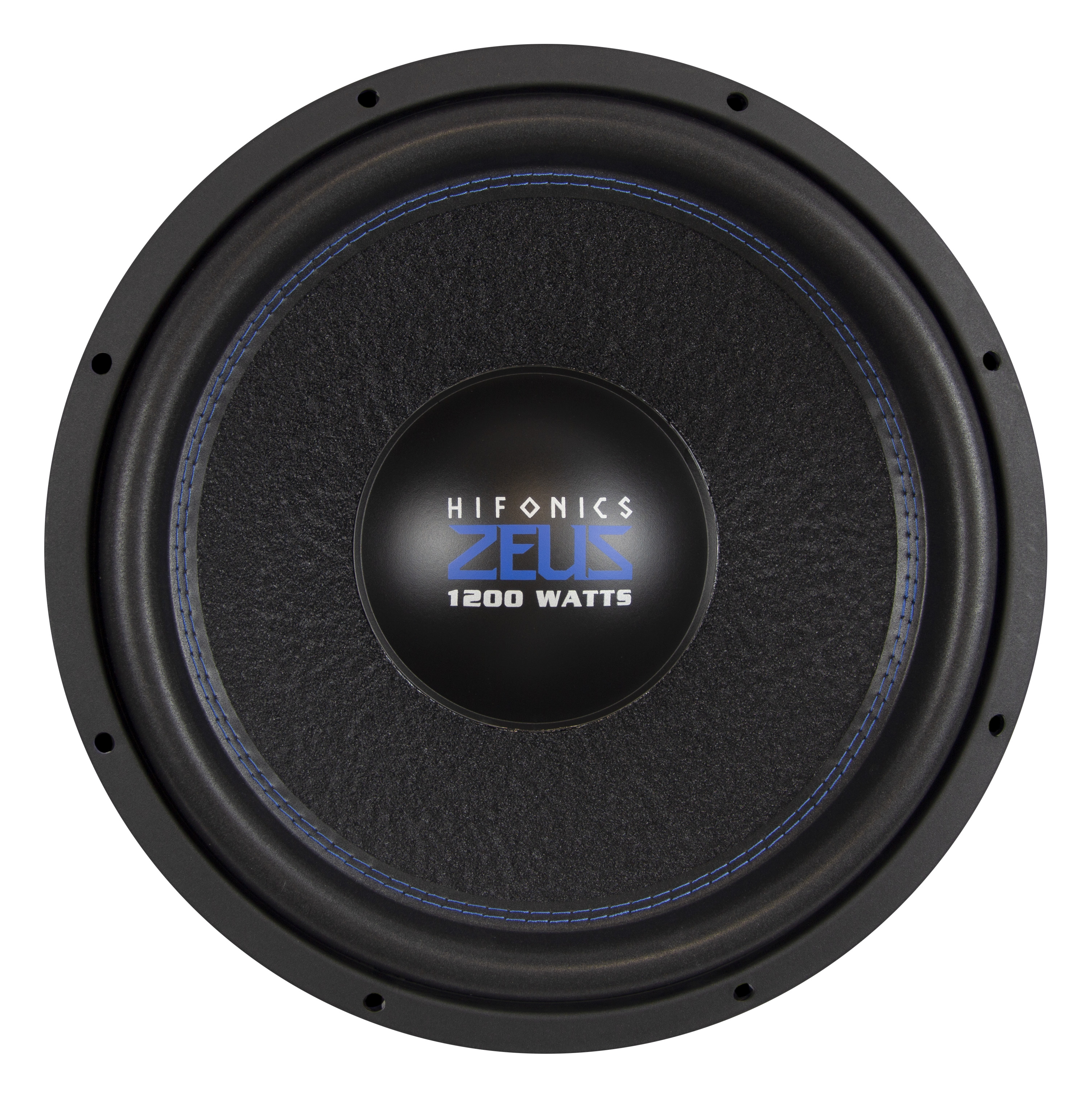

HiFonics ZEUS STREET ZXS15D2
2x2Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 26.8 Hz |
| Q factor | 0.54 |
| Sensitivity | 87.6 dB |
| Linear excursion | ± 14 mm |
| Program Power | 1200 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 26.8Hz
- Mechanical quality factor QMS 3.39
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.54
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Maximum excursion before damage xlim 26mm
- Air volume displaced at xmax VD 1161cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.9Ω
- Inductance (1kHz, in series, estimated) LE 3.72mH
- VC Diameter 64mm
- Winding height HVC 35mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 17.2N/A
- Motor constant Bl/√RE 8.71N/√W
- Diameter 156mm
- Height 40mm
- Weight 2.778kg
Diaphragm
- Effective diameter 325mm
- Effective area SD 829cm²
- Moving mass MMS 285g
- Moving mass (without air load) MMD 268g
- Material Non-pressed Paper Cone
Suspensions
- Stiffness KMS 8.07N/mm
- Compliance CMS 124µm/N
- Equivalent volume to the compliance VAS 121L
- Mechanical resistance RMS 14.2N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 388mm
- Baffle cutout diameter 352mm
- Mounting depth 183mm
- Volume occupied by the driver (estimated) 4.5L
- Frame material Steel
