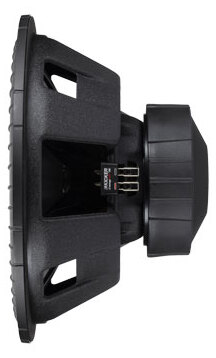

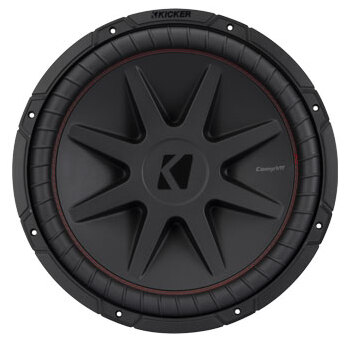

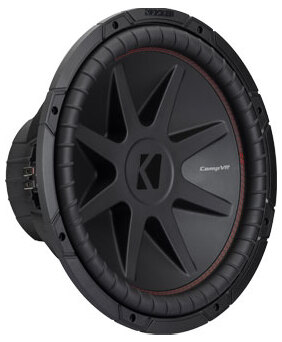

KICKER CompVR 52CVR154
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 25.6 Hz |
| Q factor | 0.48 |
| Sensitivity | 88.4 dB |
| Program Power | 1400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 25.6Hz
- Mechanical quality factor QMS 8.28
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.48
Large signal parameters
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.0Ω
- Inductance (1kHz, in series) LE 7.07mH
Magnet
- Force factor (in series) Bl 25.7N/A
- Motor constant Bl/√RE 9.73N/√W
Diaphragm
- Effective diameter 327mm
- Effective area SD 840cm²
- Moving mass MMS 300g
- Moving mass (without air load) MMD 283g
Suspensions
- Stiffness KMS 7.75N/mm
- Compliance CMS 129µm/N
- Equivalent volume to the compliance VAS 129L
- Mechanical resistance RMS 5.82N·s/m

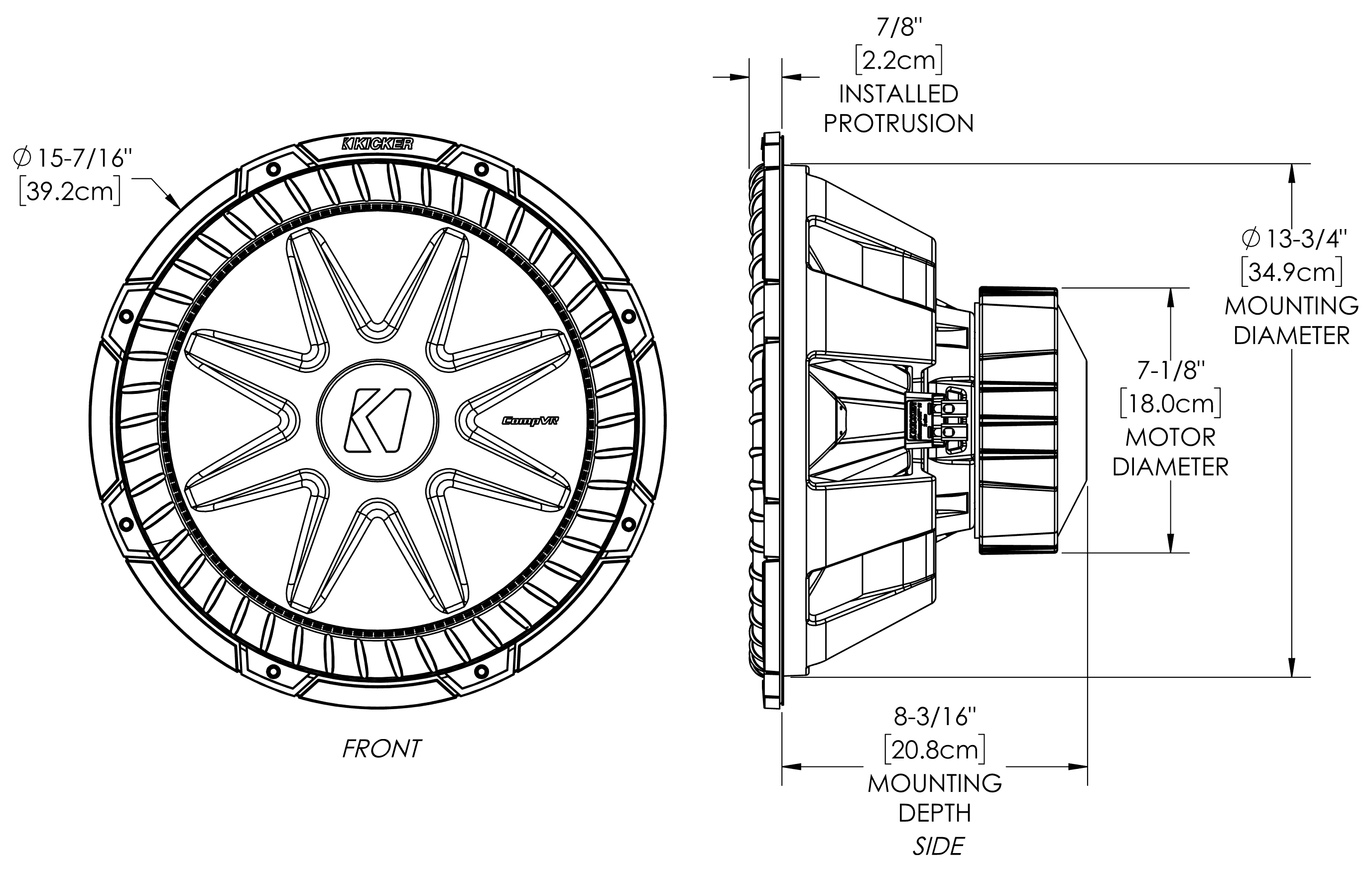

Dimensions
- Nominal diameter 15″
- 380mm
- Baffle cutout diameter 349mm
- Mounting depth 208mm
- Volume occupied by the driver (estimated) 4.3L
.png)
