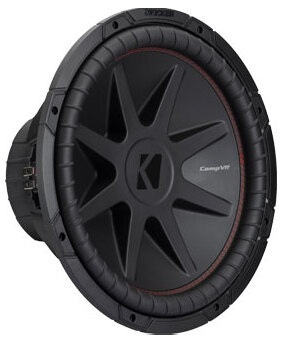

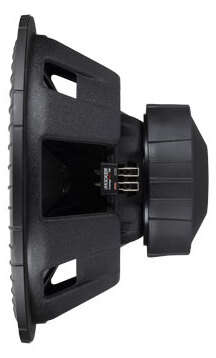

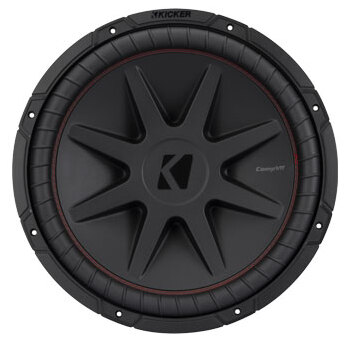

KICKER CompVR 52CVR152
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 25.6 Hz |
| Q factor | 0.45 |
| Sensitivity | 88.6 dB |
| Program Power | 1400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 25.6Hz
- Mechanical quality factor QMS 9.27
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.45
Large signal parameters
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series) LE 4.64mH
Magnet
- Force factor (in series) Bl 19.7N/A
- Motor constant Bl/√RE 10.2N/√W
Diaphragm
- Effective diameter 327mm
- Effective area SD 840cm²
- Moving mass MMS 305g
- Moving mass (without air load) MMD 288g
Suspensions
- Stiffness KMS 7.89N/mm
- Compliance CMS 127µm/N
- Equivalent volume to the compliance VAS 127L
- Mechanical resistance RMS 5.3N·s/m

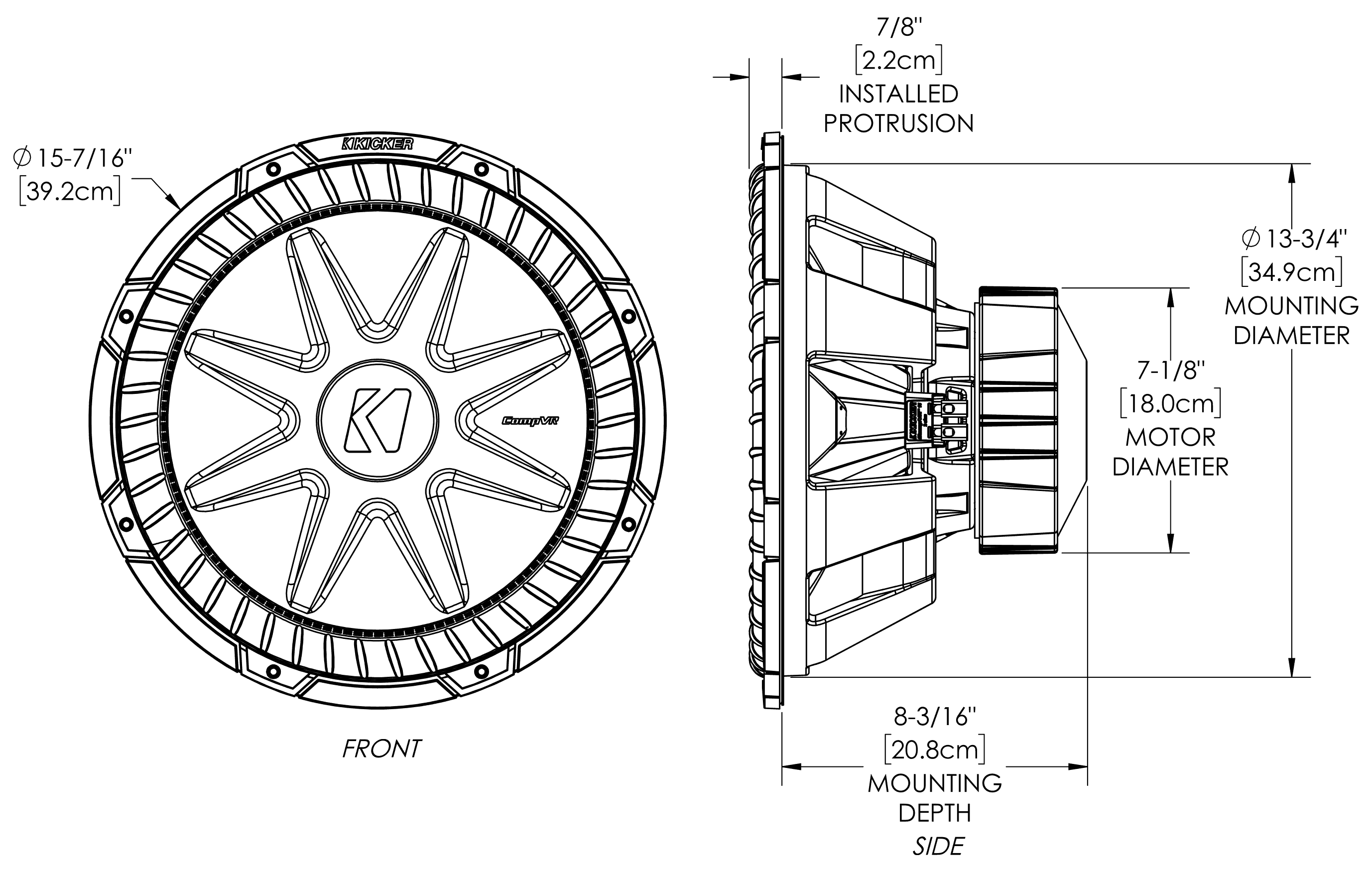

Dimensions
- Nominal diameter 15″
- 380mm
- Baffle cutout diameter 349mm
- Mounting depth 208mm
- Volume occupied by the driver (estimated) 4.3L
